拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

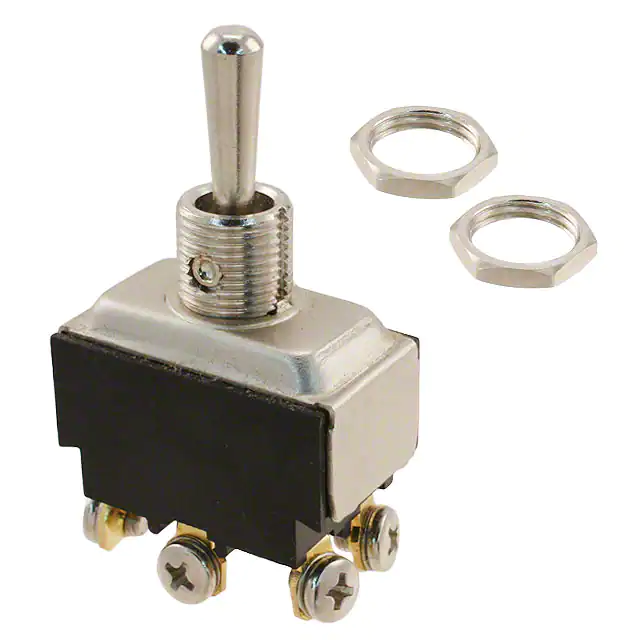

ST266D00SWITCH TOGGLE DPDT 20A 125V E-Switch |
3,579 |
|
数据手册 |
ST2 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
1003P1T2B3M2QESWITCH TOGGLE 3PDT 5A 120V E-Switch |
3,061 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P1T2B2M2QESWITCH TOGGLE 3PDT 5A 120V E-Switch |
1,866 |
|
数据手册 |
100 | Bulk | Active | Through Hole | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

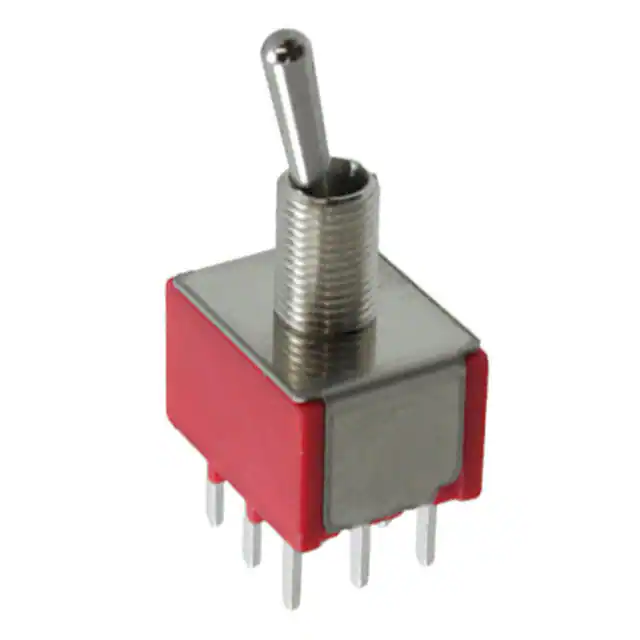

1003P1T1B1M2QESWITCH TOGGLE 3PDT 5A 120V E-Switch |
3,229 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200AWMDP2T1A1M6RESWITCH TOGGLE DPDT 0.4VA 20V E-Switch |
2,615 |
|
数据手册 |
200A | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T6B15M3QESWITCH TOGGLE DP3T 5A 120V E-Switch |
3,277 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
100DP4T6B12VS5RESWITCH TOGGLE DPDT 0.4VA 20V E-Switch |
2,880 |
|
数据手册 |
100 | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST222D00SWITCH TOGGLE DPST 20A 125V E-Switch |
3,829 |
|
数据手册 |
ST2 | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
|
100DP7T6B12M2RESWITCH TOGGLE SP3T 0.4VA 20V E-Switch |
4,478 |
|
数据手册 |
100 | Bulk | Active | Through Hole | SP3T | On-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
100DP3T7B13M7RESWITCH TOGGLE DPDT 0.4VA 20V E-Switch |
3,579 |
|
数据手册 |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.98mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
