拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST115D00SWITCH TOGGLE SPDT 20A 125V E-Switch |
4,120 |
|
数据手册 |
ST1 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 19.50mm | Non-Illuminated | - | - | Quick Connect - 0.187" (4.7mm) | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
|
100SP1T7B13VS2RESWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
4,648 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.98mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T8B13VS2RESWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
1,882 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 17.98mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

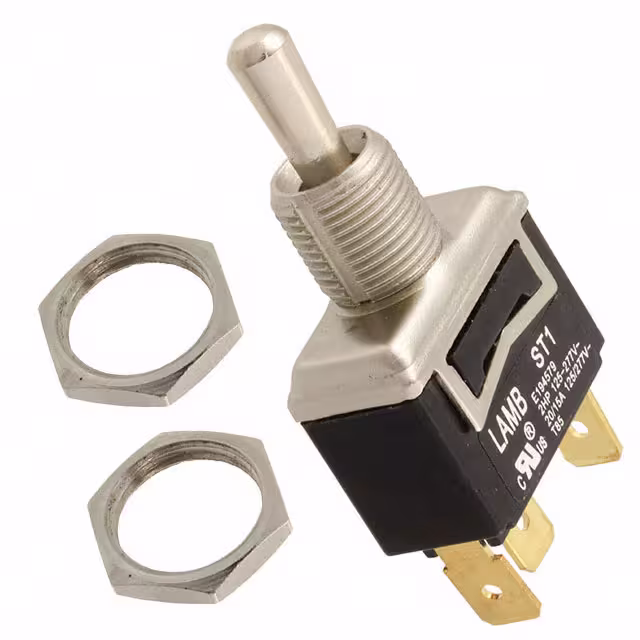

ST145D10SWITCH TOGGLE SPDT 20A 125V E-Switch |
2,465 |
|
数据手册 |
ST1 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 13.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
|
ST24JD02Switches E-Switch |
3,998 |
|
数据手册 |
ST2, LAMB | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 21.34mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
100DP8T6B11M6RESWITCH TOGGLE DP3T 0.4VA 20V E-Switch |
1,956 |
|
数据手册 |
100 | Bulk | Active | Through Hole, Right Angle | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
100AWDP1T2B4M6QESWITCH TOGGLE DPDT 5A 120V E-Switch |
4,787 |
|
数据手册 |
100A | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP4T6B12M6RESWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
1,065 |
|
数据手册 |
100 | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T4B6M2QESWITCH TOGGLE DPDT 3A 120V E-Switch |
1,965 |
|
数据手册 |
200 | Tray | Active | Through Hole | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP3T6B11VS5QEHSWITCH TOGGLE DPDT 5A 120V E-Switch |
4,424 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
