拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A223T11TZQSWITCH TOGGLE DPDT 6A 125V Electroswitch |
2,286 |
|
数据手册 |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 11.89mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A226S1CWZQSWITCH TOGGLE DPDT 6A 125V Electroswitch |
2,843 |
|
数据手册 |
A | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A226S1HZBSWITCH TOGGLE DPDT 0.5VA 28V Electroswitch |
2,357 |
|
数据手册 |
A | Bulk | Active | Panel Mount | DPDT | On-Mom | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A231S1YW3QSWITCH TOGGLE DPDT 6A 125V Electroswitch |
2,258 |
|
数据手册 |
A | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
WT127M3D1V30BSWITCH TOGGLE SPDT 0.5VA 28V Electroswitch |
3,218 |
|
数据手册 |
WT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 7.60mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|
|
WT232M1D1V30BSWITCH TOGGLE SP3T 0.5VA 28V Electroswitch |
4,316 |
|
数据手册 |
WT | Bulk | Active | Through Hole | SP3T | On-On-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 7.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
A123M3YZQSWITCH TOGGLE SPDT 6A 125V Electroswitch |
2,927 |
|
数据手册 |
A | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A127T1TV30QPSWITCH TOGGLE SPDT 6A 125V Electroswitch |
4,688 |
|
数据手册 |
A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Anti-Rotation | 17.45mm | Non-Illuminated | - | - | PC Pin | - | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A127T11TWZQSWITCH TOGGLE SPDT 6A 28V Electroswitch |
3,240 |
|
数据手册 |
A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 11.89mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | - | - |
|

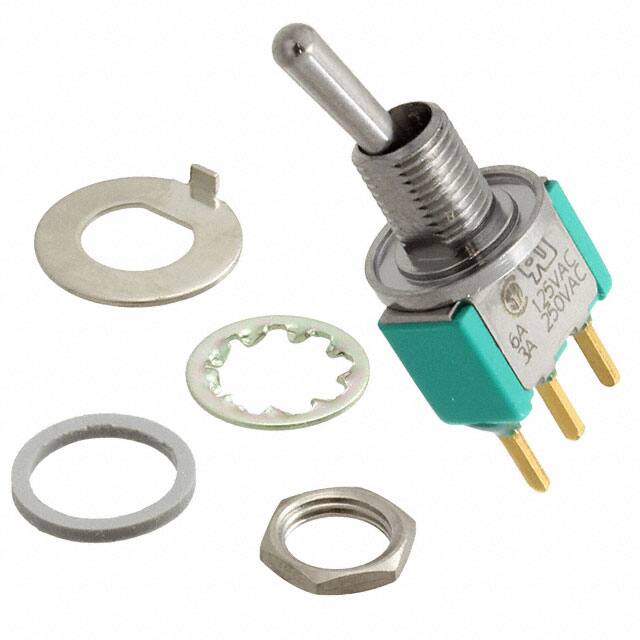

A123S1CWCG-M8SWITCH TOGGLE SPDT 6A 125V Electroswitch |
4,863 |
|
数据手册 |
A | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
