拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5582-10SWITCH TOGGLE SPST 25A 12V |
222 |
|
数据手册 |
- | Bulk | Active | Panel Mount | SPST | On-Off | 25A (DC) | - | 12 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Wire Leads | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
S41FSWITCH TOGGLE 4PST 20A 125V |
218 |
|
数据手册 |
S | Bulk | Active | Panel Mount | 4PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
S28AWFSWITCH TOGGLE DPDT 15A 125V |
220 |
|
数据手册 |
S | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
S21ALSWITCH TOGGLE DPST 15A 125V |
144 |
|
数据手册 |
S | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC), 20A (DC) | 125 V | 30 V | Locking Lever | 23.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
S42FSWITCH TOGGLE 4PDT 20A 125V |
356 |
|
数据手册 |
S | Bulk | Active | Panel Mount | 4PDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
S6ALSWITCH TOGGLE DPDT 20A 125V |
490 |
|
数据手册 |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Locking Lever | 23.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
|
S7ALSWITCH TOGGLE DPDT 20A 125V |
233 |
|
数据手册 |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Locking Lever | 23.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
MN18WBW01SWITCH TOGGLE |
487 |
|
数据手册 |
M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
WT21SSWITCH TOGGLE DPST 10A 125V |
109 |
|
数据手册 |
WT | Bulk | Active | Panel Mount | DPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
S822SWITCH TOGGLE DPDT 30A 125V |
954 |
|
数据手册 |
S | Bulk | Active | Panel Mount | DPDT | On-On | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

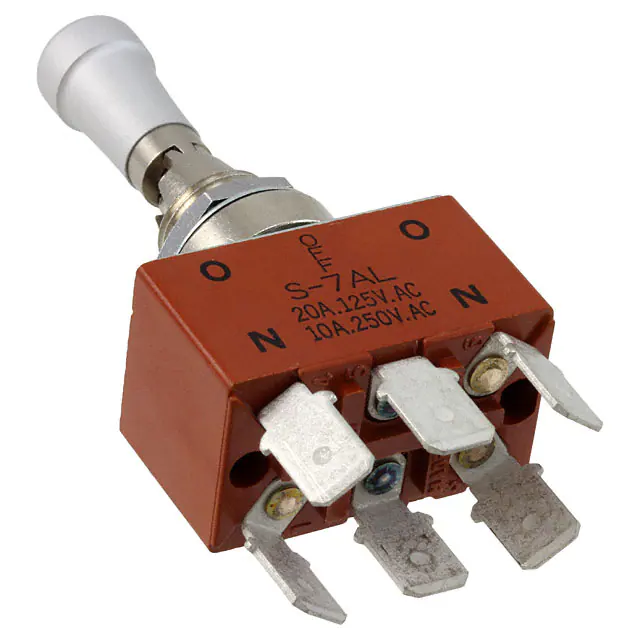

S7ALFSWITCH TOGGLE DPDT 20A 125V |
113 |
|
数据手册 |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Locking Lever | 23.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
ET610N13-ZSWITCH TOGGLE 6PDT 10A 125V |
122 |
|
数据手册 |
ET | Bulk | Active | Panel Mount | 6PDT | On-On | 10A (AC) | 125 V | - | Standard Round | 27.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 15.50mm Dia | Unthreaded | - | - | - |
|
3641NF/2SWITCH TOGGLE DPST 6A 125V |
169 |
|
数据手册 |
3600NF | Bulk | Active | Panel Mount | DPST | On-Off | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
|
1TL1-2SWITCH TOGGLE SPST 15A 125V |
1,368 |
|
数据手册 |
TL | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
WT11LSWITCH TOGGLE SPST 10A 125V |
1,263 |
|
数据手册 |
WT | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
12148ASWITCH TOGGLE DPDT 4A 125V |
218 |
|
数据手册 |
12000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
S821SWITCH TOGGLE DPST 30A 125V |
594 |
|
数据手册 |
S | Bulk | Active | Panel Mount | DPST | On-Off | 30A (AC/DC) | 125 V | 30 V | Standard Round | 22.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
1TL1-6SWITCH TOGGLE SPST-NO 10A 125V |
219 |
|
数据手册 |
TL | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
5266ABSWITCH TOGGLE 4PDT 6A 125V |
225 |
|
数据手册 |
5000 | Tray | Active | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
631H/22VSWITCH TOGGLE SPST 15A 250V |
391 |
|
数据手册 |
600H | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 250 V | - | Locking Lever | 19.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | - | - | -20°C ~ 55°C |
