拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B13AP-GBSWITCH TOGGLE SPDT 0.4VA 28V |
4,913 |
|
数据手册 |
B | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | White Cap | -30°C ~ 85°C |
|
|
34CMDP13B2M6RTSWITCH TOGGLE DPDT 0.4VA 20V |
4,990 |
|
数据手册 |
34C | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.37mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

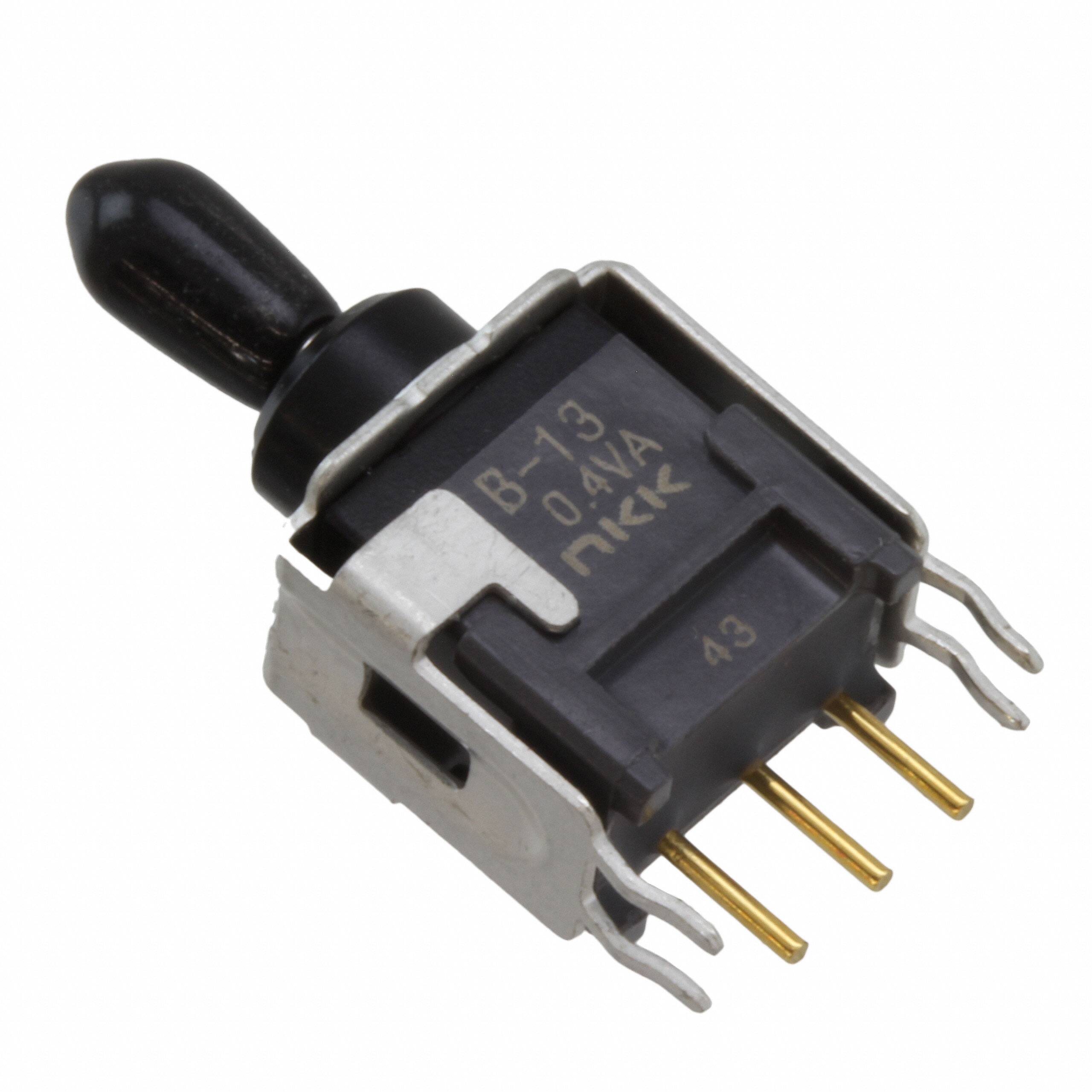

B13JB-JASWITCH TOGGLE SPDT 0.4VA 28V |
1,211 |
|
数据手册 |
B | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
|
B13JP-JASWITCH TOGGLE SPDT 0.4VA 28V |
2,084 |
|
数据手册 |
B | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
|
A11JWSWITCH TOGGLE SPST 0.4VA 28V |
1,790 |
|
数据手册 |
A | Bulk | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A11AWSWITCH TOGGLE SPST 0.4VA 28V |
1,697 |
|
数据手册 |
A | Bulk | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
B12EPSWITCH TOGGLE SPDT 0.4VA 28V |
2,115 |
|
数据手册 |
B | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B12EWSWITCH TOGGLE SPDT 0.4VA 28V |
4,486 |
|
数据手册 |
B | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SD3W01SWITCH TOGGLE SPDT 6A 125V |
4,031 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012ES1W01SWITCH TOGGLE SPDT 6A 125V |
223 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TA1C-1A-DC-1-RGSWITCH TOGGLE SPST 20A 12V |
496 |
|
数据手册 |
TA1C | Bulk | Active | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Standard Round | 25.00mm | Illuminated | LED, Green/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 85°C |
|
|
34CMDP32B2M6RTSWITCH TOGGLE DPDT 0.4VA 20V |
3,085 |
|
数据手册 |
34C | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMDP11B1V2RTSWITCH TOGGLE DPDT 0.4VA 20V |
4,967 |
|
数据手册 |
34C | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMDP14B5M6RTSWITCH TOGGLE DPDT 0.4VA 20V |
2,580 |
|
数据手册 |
34C | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B15AP-GBSWITCH TOGGLE SPDT 0.4VA 28V |
1,000 |
|
数据手册 |
B | Tray | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | White Cap | -30°C ~ 85°C |
|
|
B15AP-GASWITCH TOGGLE SPDT 0.4VA 28V |
4,261 |
|
数据手册 |
B | Bulk | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Cap | -30°C ~ 85°C |
|
M2013ES1W01SWITCH TOGGLE SPDT 6A 125V |
143 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2-1825143-4SWITCH TOGGLE DPDT 0.4VA 20V |
1,306 |
|
数据手册 |
Gemini AE | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Process Sealed | -30°C ~ 85°C |
|
|
34CMSP52B2M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,745 |
|
数据手册 |
34C | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP41B4M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
2,808 |
|
数据手册 |
34C | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
