拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3301DSWITCH TOGGLE SPDT 20A 125V |
1,107 |
|
数据手册 |
3300 | Bulk | Active | Panel Mount | SPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 14.22mm | Non-Illuminated | - | - | Wire Leads | - | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 65°C |
|
3302DSWITCH TOGGLE SPDT 20A 125V |
4,581 |
|
数据手册 |
3300 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 14.22mm | Non-Illuminated | - | - | Wire Leads | - | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 65°C |
|
MN24LL4W01SWITCH TOGGLE |
2,586 |
|
数据手册 |
M | Bulk | Active | Panel Mount | SP3T | On-On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|

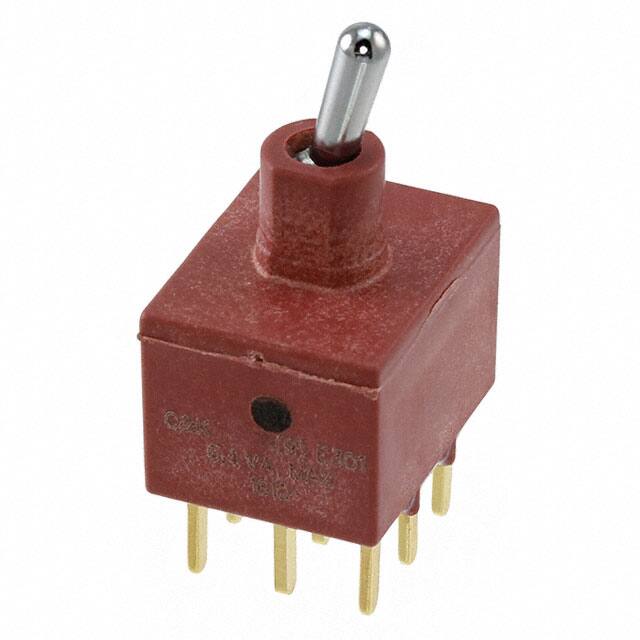

E301MD1CBESWITCH TOGGLE 3PDT 0.4VA 20V |
2,186 |
|
数据手册 |
E | Bulk | Active | Through Hole | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34A4P31B1M3RTSWITCH TOGGLE 4PDT 0.4VA 20V |
2,172 |
|
数据手册 |
34A | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
2BK62-73SWITCH TOGGLE DPST 6A 125V |
3,301 |
|
数据手册 |
110 | Bulk | Active | Panel Mount | DPST | On-Off | 6A (AC/DC) | 125 V | 125 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
TT13E3TSWITCH TOGGLE SPDT 3A 125V |
4,992 |
|
数据手册 |
TT | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 3A (AC/DC) | 125 V | 28 V | Standard Round | 9.68mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.83mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7211K12ZQESWITCH TOGGLE SP3T 5A 120V |
2,056 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
5636AB8SWITCH TOGGLE SPDT 6A 125V |
2,307 |
|
数据手册 |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 21.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
MTE206RSWITCH TOGGLE DPDT 6A 125V |
4,366 |
|
数据手册 |
MTE Green | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
MN18B2B1W01-AT4181SWITCH TOGGLE |
1,912 |
|
数据手册 |
M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
7301P3CWZQESWITCH TOGGLE 3PDT 5A 120V |
3,459 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
641NHTOGGLE SWITCH 600H HIGH POWER |
2,560 |
|
数据手册 |
600NH | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 250 V | 12 V | Flatted | 13.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
|
2GK971-D-3B-BSWITCH TOGGLE DPST |
1,424 |
|
数据手册 |
G | Bulk | Active | Panel Mount | DPST | On-Off | - | - | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5239AKBULCSATOGGLE SWITCH 5000 MINIATURE |
2,442 |
|
数据手册 |
5000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
7215L42HZQE2SWITCH TOGGLE SP3T 5A 120V |
2,938 |
|
数据手册 |
7000 | Tray | Active | Panel Mount | SP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 21.29mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7303SDZQISWITCH TOGGLE 3PDT 5A 120V |
2,365 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Potted | -30°C ~ 85°C |
|
|
7203K12CGESWITCH TOGGLE DPDT 5A 120V |
2,013 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN22LL4G01SWITCH TOGGLE |
1,968 |
|
数据手册 |
M | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
7301P4DCQESWITCH TOGGLE 3PDT 5A 28V |
2,803 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
