拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

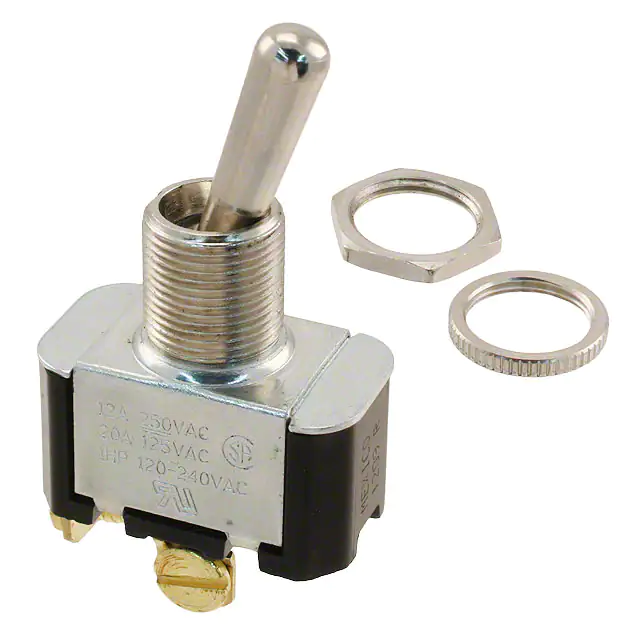

2FAA04-78SWITCH TOGGLE SPST 20A 125V Carling Technologies |
141 |
|
数据手册 |
F | Box | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|

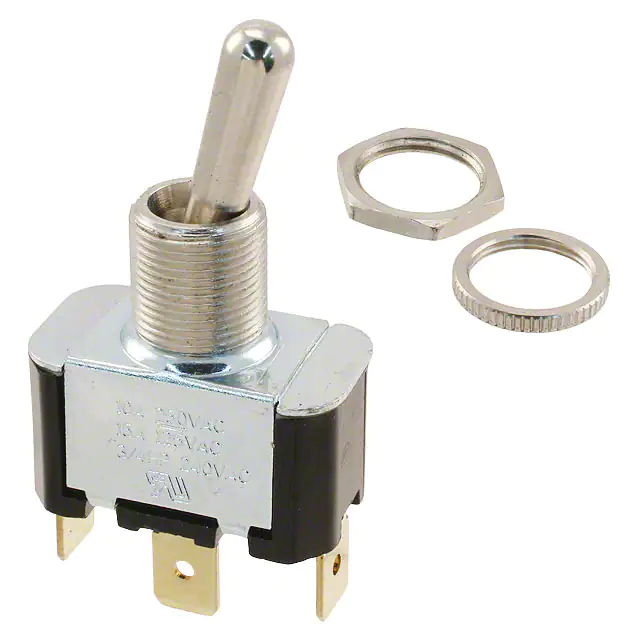

2FC53-73/TABSSWITCH TOGGLE SPDT 15A 125V Carling Technologies |
1,242 |
|
数据手册 |
F | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
2GK51-73SWITCH TOGGLE DPST 15A 125V Carling Technologies |
2,059 |
|
数据手册 |
G | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

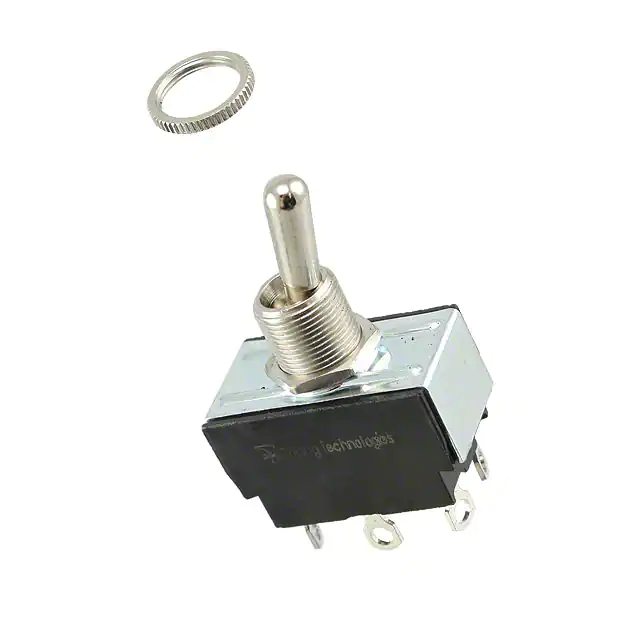

2GM50-73SWITCH TOGGLE DPDT 15A 125V Carling Technologies |
261 |
|
数据手册 |
G | Box | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

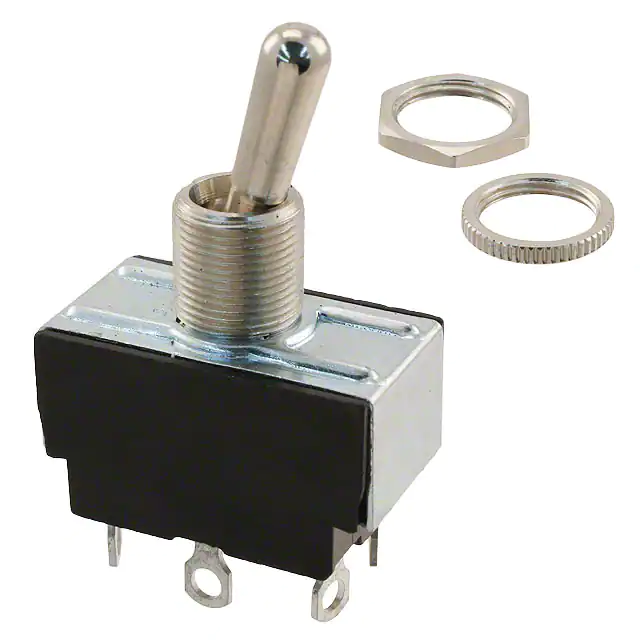

2GL50-73SWITCH TOGGLE DPDT 15A 125V Carling Technologies |
534 |
|
数据手册 |
G | Box | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
2GM51-73SWITCH TOGGLE DPDT 15A 125V Carling Technologies |
522 |
|
数据手册 |
G | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
6FC54-73SWITCH TOGGLE SPDT 15A 125V Carling Technologies |
1,246 |
|
数据手册 |
F | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|

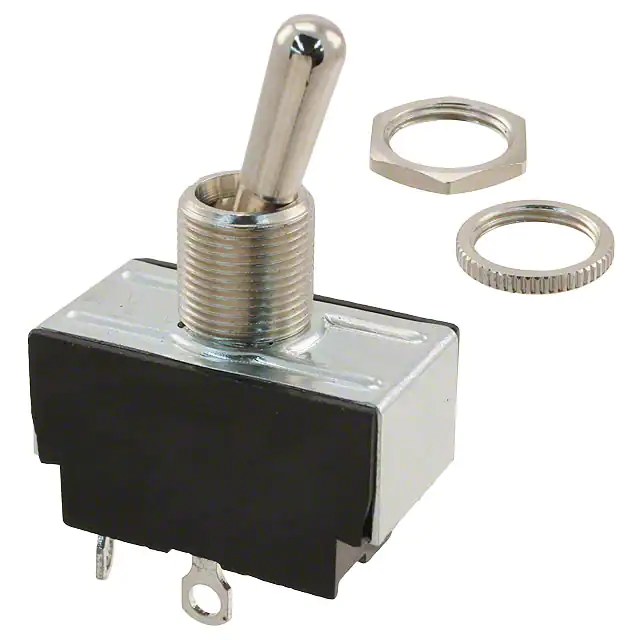

2GK50-73SWITCH TOGGLE DPST 15A 125V Carling Technologies |
295 |
|
数据手册 |
G | Box | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

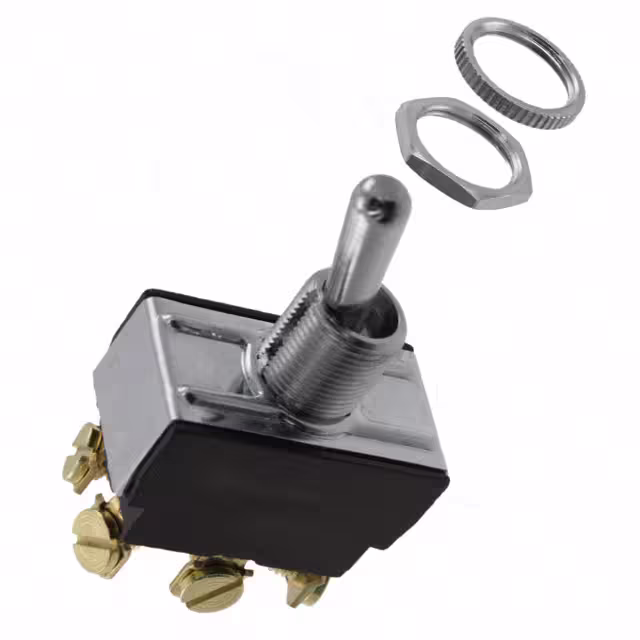

2GL54-73SWITCH TOGGLE DPDT 15A 125V Carling Technologies |
462 |
|
数据手册 |
G | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
2GK54-73SWITCH TOGGLE DPST 15A 125V Carling Technologies |
191 |
|
数据手册 |
G | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
