拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2026K2S1W01-ASWITCH TOGGLE SP3T 6A 125V |
2,513 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
TL36MW00000TOGGLE SWITCH SMT TL PCB MOUNT |
2,238 |
|
数据手册 |
TL | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
1003P5T1B1M2QESWITCH TOGGLE 3PDT 5A 120V |
2,655 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B2RKWSWITCH TOGGLE DPDT 0.4VA 28V |
1,559 |
|
数据手册 |
B | Bulk | Active | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Lever for Cap | 5.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-DP2-T1-B1-M1QESWITCH TOGGLE DPDT 5A 125V |
2,829 |
|
数据手册 |
2M | Bulk | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-DP2-T1-B1-M2QESWITCH TOGGLE DPDT 5A 125V |
4,472 |
|
数据手册 |
2M | Bulk | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP3-T2-B1-M1QESWITCH TOGGLE DPDT 5A 125V |
4,870 |
|
数据手册 |
2M | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 5.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
11TS15-8SWITCH TOGGLE SPDT 20A 125V |
2,908 |
|
数据手册 |
TS | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
M2022LL2G40SWITCH TOGGLE DPDT 0.4VA 28V |
1,938 |
|
数据手册 |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A18EV1SWITCH TOGGLE SPDT 0.4VA 28V |
2,078 |
|
数据手册 |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

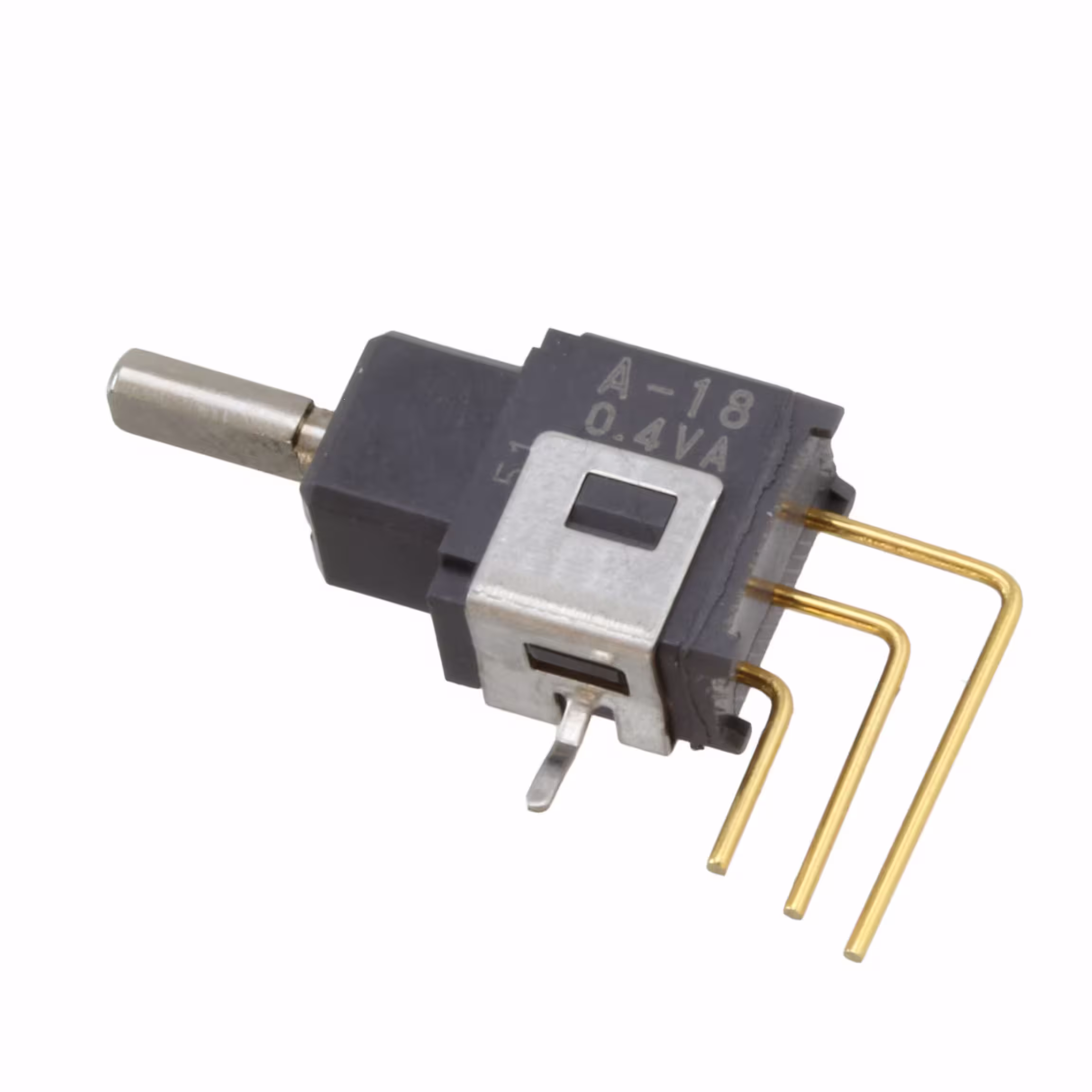

A18HV1SWITCH TOGGLE SPDT 0.4VA 28V |
3,575 |
|
数据手册 |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2T12S4A5G03SWITCH TOGGLE SPDT 0.4VA 28V |
1,133 |
|
数据手册 |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
MN12SS1W06BUSHING MOUNT MINIATURE TOGGLE |
2,644 |
|
数据手册 |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
7235BSWITCH TOGGLE SPST-NO 20A 125V |
1,494 |
|
数据手册 |
7200 | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Standard Round | 14.27mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | -10°C ~ 65°C |
|
|
A13KH-AASWITCH TOGGLE SPDT 0.4VA 28V |
2,541 |
|
数据手册 |
A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Actuator | -30°C ~ 85°C |
|
|
34ADP13B1M1QTSWITCH TOGGLE DPDT 5A 125V |
3,222 |
|
数据手册 |
34A | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 13.97mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
34ADP33B1M1QTSWITCH TOGGLE DPDT 5A 125V |
3,487 |
|
数据手册 |
34A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 13.97mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
34ADP47T7M1QTSWITCH TOGGLE DPDT 5A 125V |
2,771 |
|
数据手册 |
34A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | - | -30°C ~ 85°C |
|
|
34CMDP31B1M1RTSWITCH TOGGLE DPDT 0.4VA 20V |
2,396 |
|
数据手册 |
34C | Bulk | Active | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2-1571920-6SWITCH TOGGLE DPDT 6A 125V |
2,665 |
|
数据手册 |
MTA Green | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
