拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLS-TC11A12253RSWITCH TOGGLE SPST 20A 12V Lumex Opto/Components Inc. |
3,483 |
|
数据手册 |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | 23.20mm | Illuminated | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | - | - | - | - |
|
CLS-TC11A12252YSWITCH TOGGLE SPST 20A 12V Lumex Opto/Components Inc. |
4,408 |
|
数据手册 |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | 26.27mm | Illuminated | LED, Yellow | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | - | - | - | - |
|
CLS-TC11A12252RSWITCH TOGGLE SPST 20A 12V Lumex Opto/Components Inc. |
2,589 |
|
数据手册 |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | 26.27mm | Illuminated | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | - | - | - | - |
|
CLS-TC11A12252GSWITCH TOGGLE SPST 20A 12V Lumex Opto/Components Inc. |
2,722 |
|
数据手册 |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | 26.27mm | Illuminated | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | - | - | - | - |
|

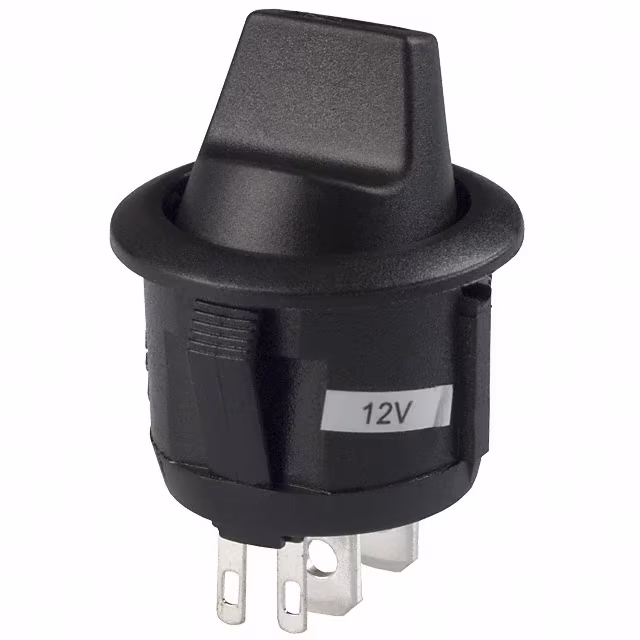

CLS-TC11A12190YSWITCH TOGGLE SPST 20A 12V Lumex Opto/Components Inc. |
4,846 |
|
数据手册 |
CLS | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | - | Illuminated | LED, Yellow | 12 VDC | Quick Connect - 0.187" (4.7mm) | Circular - 20.20mm Dia | - | - | - | - |
|

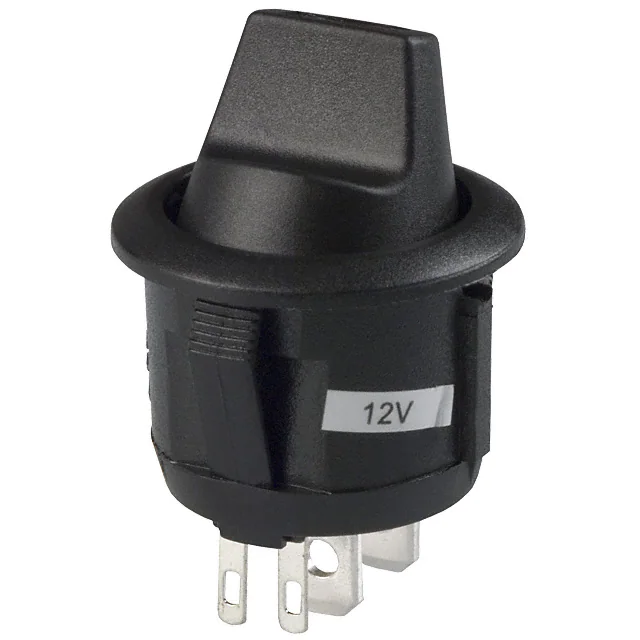

CLS-TC11A12190RSWITCH TOGGLE SPST 20A 12V Lumex Opto/Components Inc. |
3,064 |
|
数据手册 |
CLS | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | - | Illuminated | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | Circular - 20.20mm Dia | - | - | - | - |
|

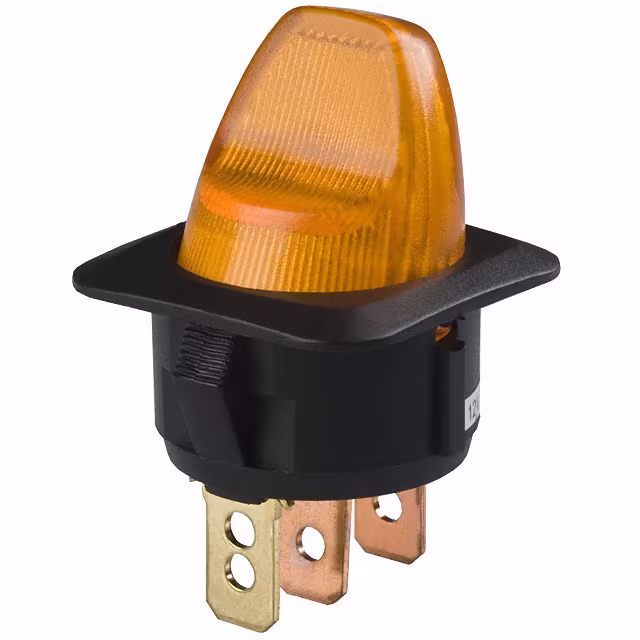

CLS-TS11A12250YSWITCH TOGGLE SPST 25A 12V Lumex Opto/Components Inc. |
3,780 |
|
数据手册 |
CLS | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Flatted | 17.00mm | Illuminated | LED, Yellow | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 24.00mm Dia | - | - | - | - |
|

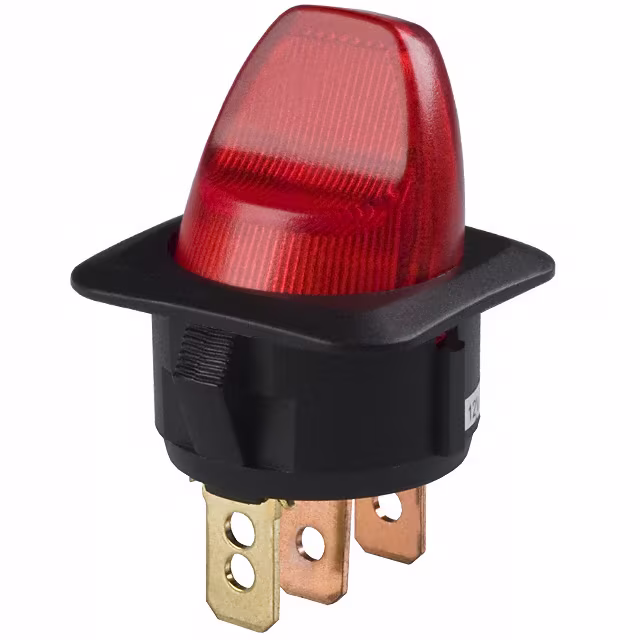

CLS-TS11A12250RSWITCH TOGGLE SPST 25A 12V Lumex Opto/Components Inc. |
4,709 |
|
数据手册 |
CLS | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Flatted | 17.00mm | Illuminated | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 24.00mm Dia | - | - | - | - |
|

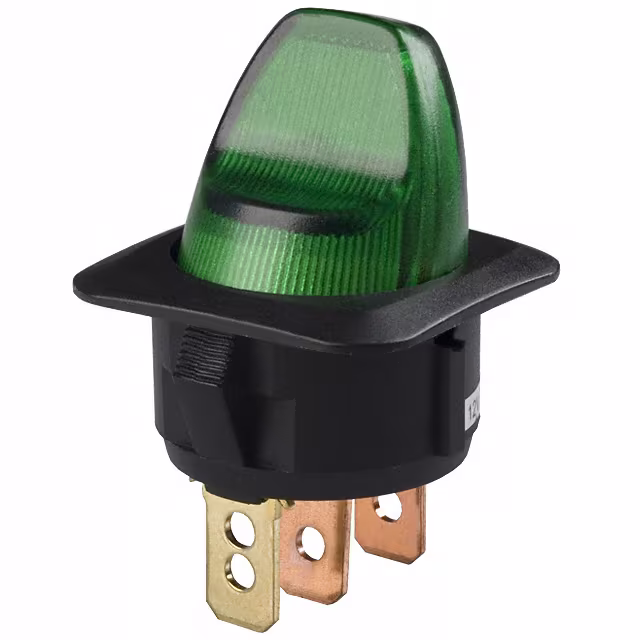

CLS-TS11A12250GSWITCH TOGGLE SPST 25A 12V Lumex Opto/Components Inc. |
3,206 |
|
数据手册 |
CLS | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Flatted | 17.00mm | Illuminated | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 24.00mm Dia | - | - | - | - |
|

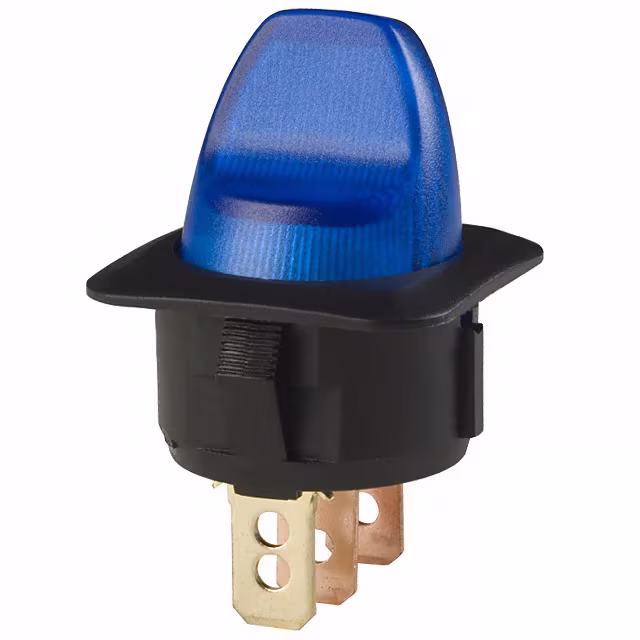

CLS-TS11A12250BSWITCH TOGGLE SPST 25A 12V Lumex Opto/Components Inc. |
4,905 |
|
数据手册 |
CLS | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Flatted | 17.00mm | Illuminated | LED, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 24.00mm Dia | - | - | - | - |
