拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1AWFSWITCH TOGGLE SPST 15A 125V |
145 |
|
数据手册 |
S | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
MN22LL4W01SWITCH TOGGLE |
136 |
|
数据手册 |
M | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|
B12JJVCFSWITCH TOGGLE SPDT 0.4VA 28V |
293 |
|
数据手册 |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
646H/2SWITCH TOGGLE DPDT 15A 250V |
1,158 |
|
数据手册 |
600H | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
2GL54-73SWITCH TOGGLE DPDT 15A 125V |
462 |
|
数据手册 |
G | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
7101TCWCQESWITCH TOGGLE SPDT 5A 120V |
207 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2GK54-73SWITCH TOGGLE DPST 15A 125V |
191 |
|
数据手册 |
G | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
7101TCWZQESWITCH TOGGLE SPDT 5A 120V |
277 |
|
数据手册 |
7000 | Tray | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201P3YZQESWITCH TOGGLE DPDT 5A 120V |
119 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S332TSWITCH TOGGLE DPDT 15A 125V |
129 |
|
数据手册 |
S300 | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
641NH/2SWITCH TOGGLE DPST 15A 250V |
363 |
|
数据手册 |
600NH | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 250 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
641H/2SWITCH TOGGLE DPST 15A 250V |
211 |
|
数据手册 |
600H | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
MTE106DSWITCH TOGGLE SPDT 6A 125V |
105 |
|
数据手册 |
MTE Green | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
1825222-2SWITCH TOGGLE SPST 3A 125V |
849 |
|
数据手册 |
TT | Bulk | Active | Panel Mount | SPST | On-Off | 3A (AC/DC) | 125 V | 28 V | Standard Round | 7.52mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.83mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

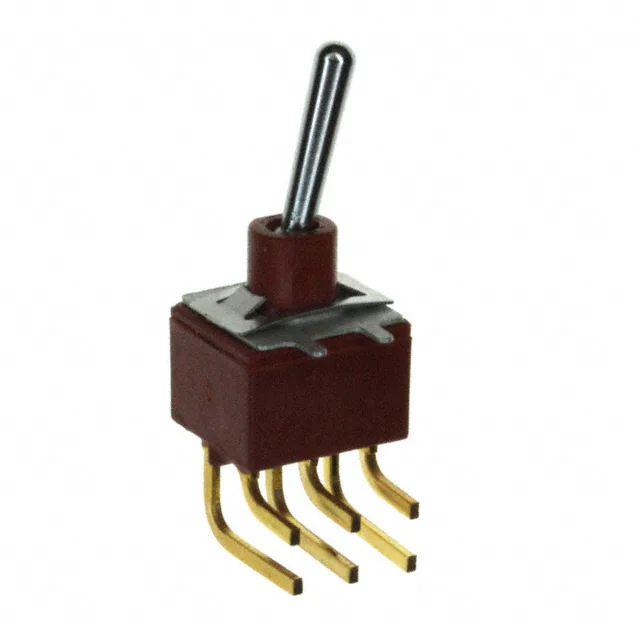

E208SD1ABESWITCH TOGGLE DPDT 0.4VA 20V |
200 |
|
数据手册 |
E | Tray | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S8AWFSWITCH TOGGLE SPDT 15A 125V |
292 |
|
数据手册 |
S | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
8E4011-ZSWITCH TOGGLE 4PDT 6A 125V |
346 |
|
数据手册 |
8E | Bulk | Active | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
7203SCWZQESWITCH TOGGLE DPDT 5A 120V |
113 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
LT-1511-610-012SWITCH TOGGLE SPST 15A 125V |
2,181 |
|
数据手册 |
LT | Box | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
55033-01SWITCH TOGGLE SPDT 15A 24V |
193 |
|
数据手册 |
- | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (DC) | - | 24 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
