拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5636AGK16TOGGLE SWITCH 5000 MINIATURE APEM Inc. |
3,414 |
|
数据手册 |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5036ABX408TOGGLE SWITCH 5000 MINIATURE APEM Inc. |
2,137 |
|
数据手册 |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5646ADB1VSWITCH TOGGLE DPDT 6A 125V APEM Inc. |
1,580 |
|
数据手册 |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 14.85mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
3636NFSWITCH TOGGLE SPDT 6A 125V APEM Inc. |
2,414 |
|
数据手册 |
3600NF | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
|

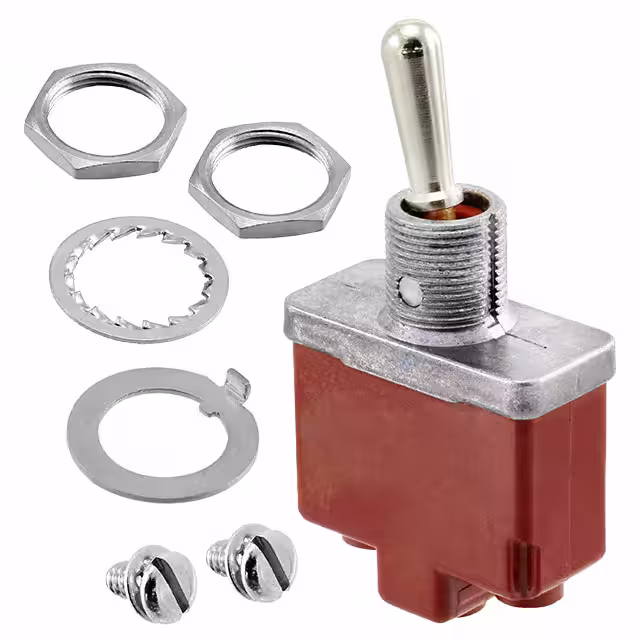

CT33001N000SWITCH TOGGLE SPST 10A 125V APEM Inc. |
2,445 |
|
数据手册 |
CT | Bulk | Active | Panel Mount | SPST | Off-Mom | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|
|
5637AGKTOGGLE SWITCH 5000 MINIATURE APEM Inc. |
3,477 |
|
数据手册 |
5000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5647AKB4NTOGGLE SWITCH 5000 MINIATURE APEM Inc. |
3,561 |
|
数据手册 |
5000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5664MTH1RABSWITCH TOGGLE DP3T 6A 125V APEM Inc. |
4,185 |
|
数据手册 |
5000M | Bulk | Active | Panel Mount | DP3T | On-On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
|
5246WCDB16X404SWITCH TOGGLE DPDT 0.4VA 20V APEM Inc. |
4,805 |
|
数据手册 |
5000 | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5246CDGB12SWITCH TOGGLE DPDT 0.4VA 20V APEM Inc. |
4,312 |
|
数据手册 |
5000 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | - | - | Matte Black Finish | -40°C ~ 85°C |
