拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

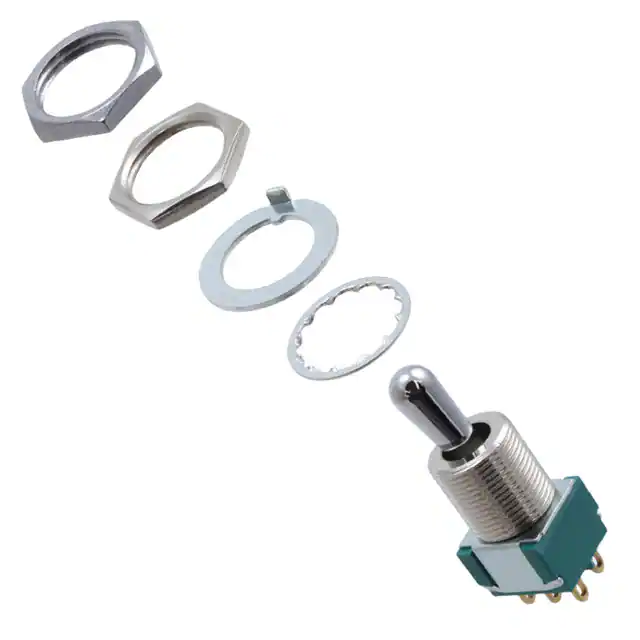

1-1571926-5SWITCH TOGGLE DPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
1,074 |
|
数据手册 |
MTG Green | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
2-1571926-4SWITCH TOGGLE DPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
1,852 |
|
数据手册 |
MTG Green | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 17.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
1571922-6SWITCH TOGGLE SPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
2,692 |
|
数据手册 |
MTA Green | Bulk | Obsolete | Panel Mount, Right Angle | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
A205SYZQSWITCH TOGGLE DPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
1,069 |
|
数据手册 |
Gemini A | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
A205P3YZQSWITCH TOGGLE DPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
4,779 |
|
数据手册 |
Gemini A | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flatted | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
2-1571926-1SWITCH TOGGLE DPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
4,605 |
|
数据手册 |
MTG Green | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.94mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
TT11DGVRA3TSWITCH TOGGLE SPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,465 |
|
数据手册 |
TT | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.68mm | Non-Illuminated | - | - | PC Pin | Circular - 4.83mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

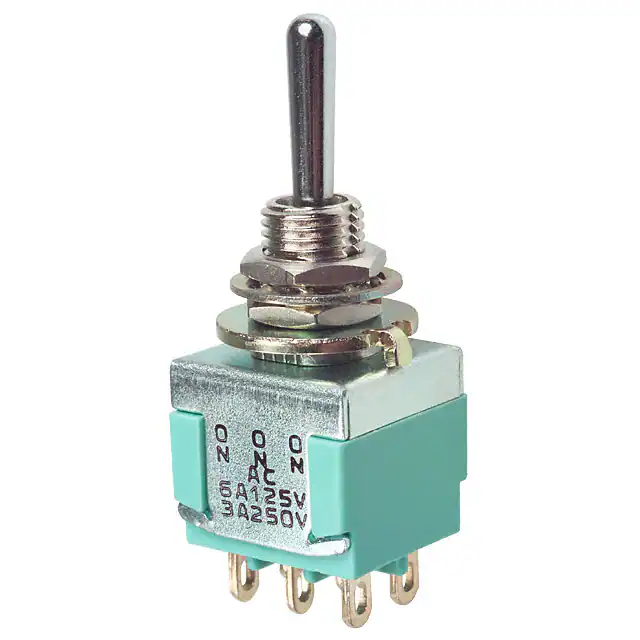

MTA206PASWITCH TOGGLE SP3T 6A 125V TE Connectivity ALCOSWITCH Switches |
3,771 |
|
数据手册 |
MTA Green | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -20°C ~ 80°C |
|
1571927-2SWITCH TOGGLE SPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
4,400 |
|
数据手册 |
MTL Green | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Locking Lever | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
3-1571920-2SWITCH TOGGLE 3PDT 6A 125V TE Connectivity ALCOSWITCH Switches |
4,702 |
|
数据手册 |
MTA Green | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
