拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-1825138-0SWITCH TOGGLE DPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
1,497 |
|
数据手册 |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A213SYZQSWITCH TOGGLE SP3T 5A 120V TE Connectivity ALCOSWITCH Switches |
1,480 |
|
数据手册 |
Gemini A | Bulk | Obsolete | Panel Mount | SP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -20°C ~ 85°C |
|
|
ATE1DGPC104SWITCH TOGGLE SPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,858 |
|
数据手册 |
ATE | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
5-1825136-2SWITCH TOGGLE SPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,099 |
|
数据手册 |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2-1571920-2SWITCH TOGGLE DPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
3,851 |
|
数据手册 |
MTA Green | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
3-1825139-5SWITCH TOGGLE SP3T 5A 120V TE Connectivity ALCOSWITCH Switches |
2,446 |
|
数据手册 |
Gemini A | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
3-1825139-8SWITCH TOGGLE SP3T 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
1,301 |
|
数据手册 |
Gemini A | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

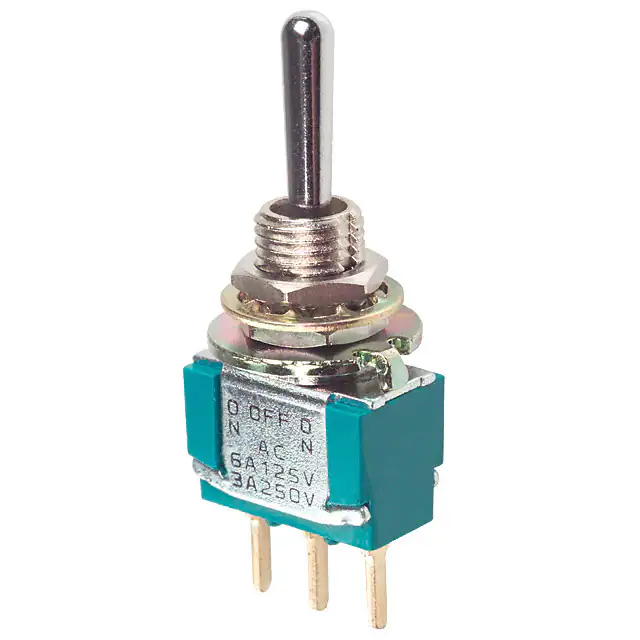

1571920-6SWITCH TOGGLE SPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
1,669 |
|
数据手册 |
MTA Green | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
1825136-1SWITCH TOGGLE SPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
1,101 |
|
数据手册 |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 17.27mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5-1825137-3SWITCH TOGGLE SPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,071 |
|
数据手册 |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
