上传BOM单
拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A101SYCBSWITCH TOGGLE SPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,988 |
|
数据手册 |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
1-1825137-3SWITCH TOGGLE SPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
4,996 |
|
数据手册 |
Gemini A | Bulk | Active | Panel Mount, Right Angle | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1825137-4SWITCH TOGGLE SPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
2,756 |
|
数据手册 |
Gemini A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

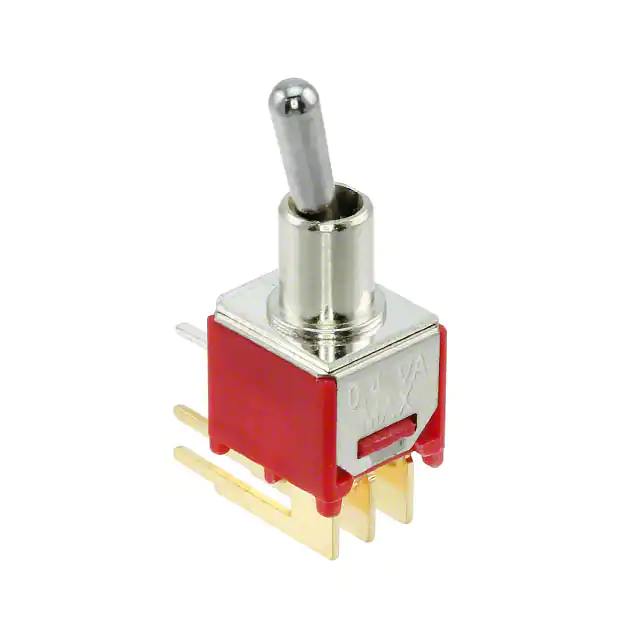

TMD1T5B2M6RESWITCH TOGGLE DPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,942 |
|
数据手册 |
- | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.48mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
1825137-3SWITCH TOGGLE SPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
2,669 |
|
数据手册 |
Gemini A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
AE101MD1ABSWITCH TOGGLE SPDT 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,509 |
|
数据手册 |
Gemini AE | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -20°C ~ 85°C |
|
|
3-1825136-1SWITCH TOGGLE SPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
4,090 |
|
数据手册 |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1571923-4SWITCH TOGGLE SPDT 6A 125V TE Connectivity ALCOSWITCH Switches |
4,459 |
|
数据手册 |
MTB Green | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 15.20mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
A101SYWQSWITCH TOGGLE SPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
3,055 |
|
数据手册 |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
2-1825138-6SWITCH TOGGLE DPDT 5A 120V TE Connectivity ALCOSWITCH Switches |
1,770 |
|
数据手册 |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
