拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2032SS1W01-CCSWITCH TOGGLE 3PDT 6A 125V |
4,740 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Red Cap | -30°C ~ 85°C |
|

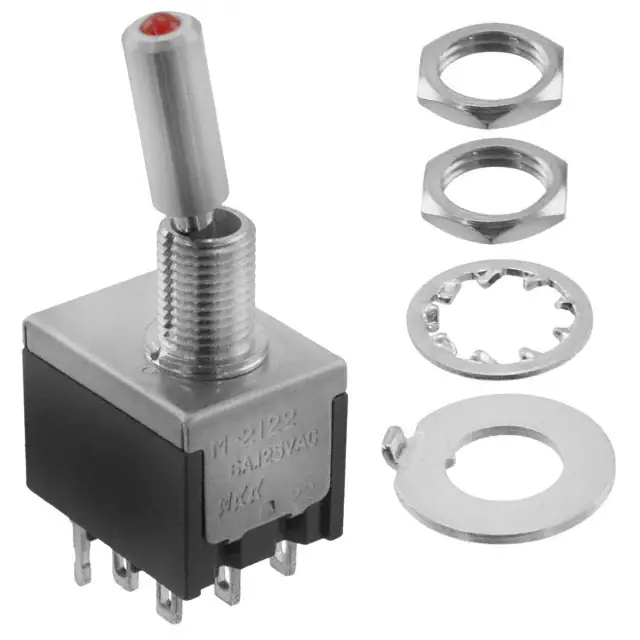

M2122TCW01SWITCH TOGGLE DPDT 6A 125V |
2,059 |
|
数据手册 |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
7201L41CWV9BE2SWITCH TOGGLE DPDT 0.4VA 20V |
3,076 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 13.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Black Actuator | -30°C ~ 85°C |
|
|
M2018B2B1W01-VBSWITCH TOGGLE SPDT 6A 125V |
4,203 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | White Cap | -30°C ~ 85°C |
|
|
M2018B2B1W01-VASWITCH TOGGLE SPDT 6A 125V |
2,789 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Black Cap | -30°C ~ 85°C |
|
|
M2019B2B1A02/UC-AT4181SWITCH TOGGLE SPDT 6A 125V |
4,336 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2019B2B1A02-AT4181SWITCH TOGGLE SPDT 6A 125V |
4,313 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2011B2B1W03-AT4181SWITCH TOGGLE SPST 6A 125V |
3,558 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2018B2B3W01-VASWITCH TOGGLE SPDT 6A 125V |
3,849 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 18.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Black Cap | -30°C ~ 85°C |
|
|
M2018B2B3W01-VBSWITCH TOGGLE SPDT 6A 125V |
3,574 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 18.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | White Cap | -30°C ~ 85°C |
|
|
M2018B2B3W01-VFSWITCH TOGGLE SPDT 6A 125V |
1,324 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 18.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Green Cap | -30°C ~ 85°C |
|
GT21MAVBESWITCH TOGGLE DPDT 0.4VA 20V |
2,899 |
|
数据手册 |
GT | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.81mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T201SHZQESWITCH TOGGLE DPDT 3A 120V |
1,807 |
|
数据手册 |
T | Bulk | Obsolete | Panel Mount | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2028SS1A03SWITCH TOGGLE DPDT 6A 125V |
2,851 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2023B2B1W06BUSHING MOUNT MINIATURE TOGGLE |
4,070 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2T22S4A5G40SWITCH TOGGLE DPDT 0.4VA 28V |
1,524 |
|
数据手册 |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2013LL4W01SWITCH TOGGLE SPDT 6A 125V |
1,923 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2019B2B1A02-AT401ASWITCH TOGGLE SPDT 6A 125V |
4,044 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2019B2B1A02/UC-AT401ASWITCH TOGGLE SPDT 6A 125V |
1,452 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2032SS4G01SWITCH TOGGLE 3PDT 0.4VA 28V |
2,128 |
|
数据手册 |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
