拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8A3011-ZSWITCH TOGGLE 3PDT 6A 125V Nidec Components Corporation |
2,200 |
|
数据手册 |
8A | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|

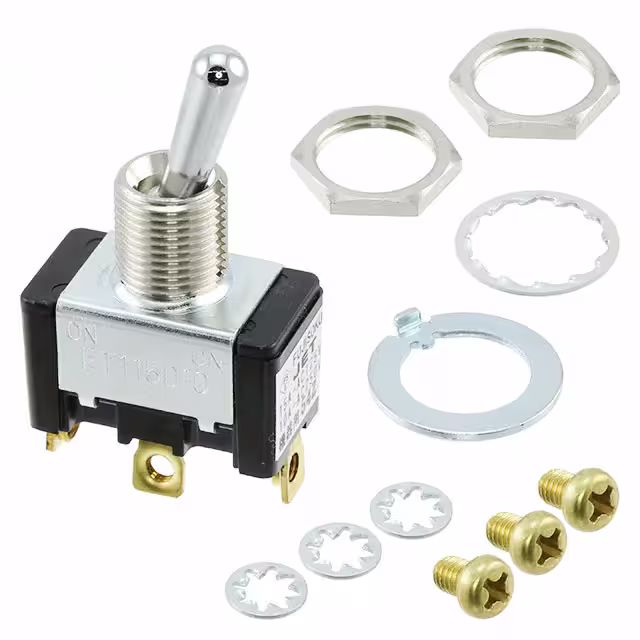

ET115D10-ZSWITCH TOGGLE SPDT 15A 125V Nidec Components Corporation |
2,153 |
|
数据手册 |
ET | Bulk | Obsolete | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
8B3011-ZSWITCH TOGGLE 3PDT SOLDER Nidec Components Corporation |
4,649 |
|
数据手册 |
8B | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | - | -30°C ~ 85°C |
|
ET225N12-ZSWITCH TOGGLE DPDT 25A 125V Nidec Components Corporation |
4,387 |
|
数据手册 |
ET | Bulk | Active | Panel Mount | DPDT | On-On | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

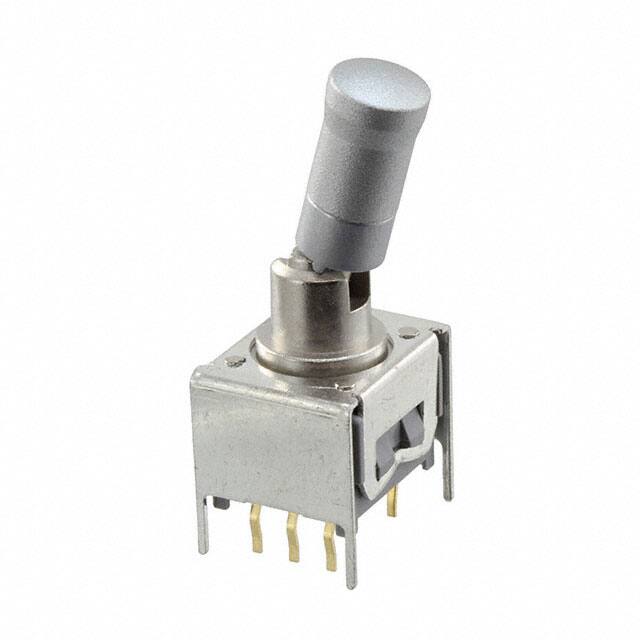

ATLE42D-2M4-ZSWITCH TOGGLE DPDT 50MA 48V Nidec Components Corporation |
2,448 |
|
数据手册 |
ATLE4 | Tray | Active | Through Hole | DPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Locking Lever | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
8A4011-ZSWITCH TOGGLE 4PDT 6A 125V Nidec Components Corporation |
1,232 |
|
数据手册 |
8A | Bulk | Active | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
ATLE42E-2M4-ZSWITCH TOGGLE DPDT 50MA 48V Nidec Components Corporation |
2,648 |
|
数据手册 |
ATLE4 | Tray | Active | Through Hole | DPDT | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Locking Lever | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|

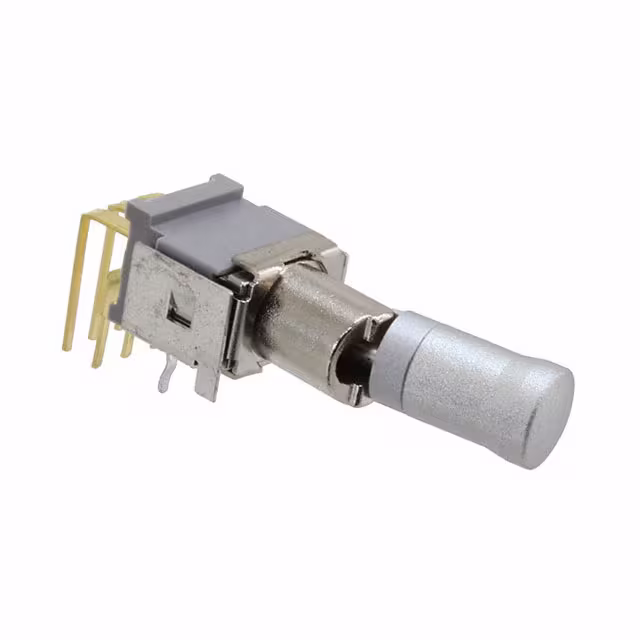

ATLE2N-5M3-ZSWITCH TOGGLE DPDT 50MA 48V Nidec Components Corporation |
3,994 |
|
数据手册 |
ATLE | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Locking Lever | 11.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
|
8A4011C-ZSWITCH TOGGLE 4PDT 25MA 20V Nidec Components Corporation |
4,820 |
|
数据手册 |
8A | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 25mA (DC) | - | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
8B4011-ZSWITCH TOGGLE 4PDT 6A 125V Nidec Components Corporation |
1,065 |
|
数据手册 |
8B | Bulk | Active | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Sealed - Flux Protection | -30°C ~ 85°C |
