拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E101MD1AV2QESWITCH TOGGLE SPDT 7.5A 125V |
1,256 |
|
数据手册 |
E | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T101P3TAGESWITCH TOGGLE SPDT 3A 120V |
4,001 |
|
数据手册 |
T | Tray | Active | Panel Mount, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101P4YZBESWITCH TOGGLE SPDT 0.4VA 20V |
4,653 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

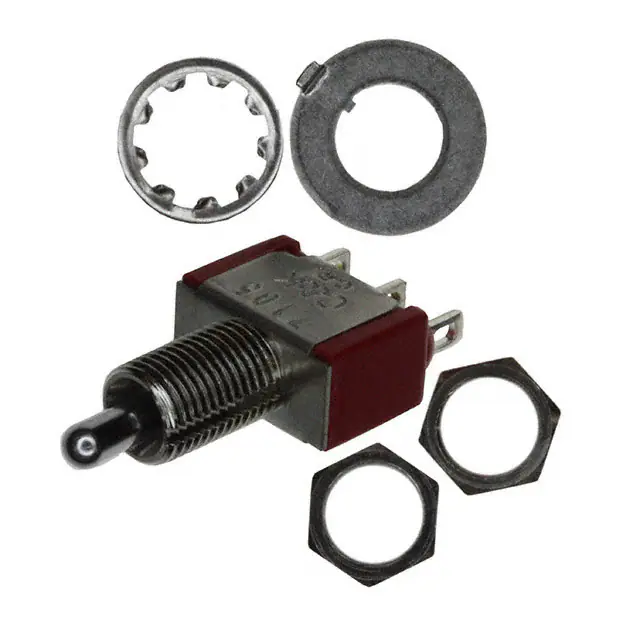

7105MYZQESWITCH TOGGLE SPDT 5A 120V |
3,716 |
|
数据手册 |
7000 | Tray | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5644TH1RABSWITCH TOGGLE SP3T 6A 125V |
2,491 |
|
数据手册 |
5000 | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
ET01SD1AQESWITCH TOGGLE SPDT 3A 120V |
4,277 |
|
数据手册 |
ET | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101SDAV2BESWITCH TOGGLE SPDT 0.4VA 20V |
3,193 |
|
数据手册 |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET08MD1CBESWITCH TOGGLE SPDT 0.4VA 20V |
3,402 |
|
数据手册 |
ET | Tray | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E107SYZQESWITCH TOGGLE SPDT 7.5A 125V |
4,358 |
|
数据手册 |
E | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101SHCQESWITCH TOGGLE SPDT 5A 120V |
100 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101MD9AGESWITCH TOGGLE SPDT 5A 120V |
4,545 |
|
数据手册 |
7000 | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
E103SYZQESWITCH TOGGLE SPDT 7.5A 125V |
2,786 |
|
数据手册 |
E | Bulk | Active | Panel Mount | SPDT | On-Off-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T101LTZGESWITCH TOGGLE SPDT 3A 120V |
4,318 |
|
数据手册 |
T | Tray | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101SPYZQESWITCH TOGGLE SPDT 5A 120V |
2,396 |
|
数据手册 |
7000 | Tray | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103SDAV2BESWITCH TOGGLE SPDT 0.4VA 20V |
4,569 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7107MD9ABESWITCH TOGGLE SPDT 0.4VA 20V |
1,943 |
|
数据手册 |
7000 | Tray | Active | Through Hole, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7105SD9ABESWITCH TOGGLE SPDT 0.4VA 20V |
4,624 |
|
数据手册 |
7000 | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7107SD9ABESWITCH TOGGLE SPDT 0.4VA 20V |
3,027 |
|
数据手册 |
7000 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T101MHZBESWITCH TOGGLE SPDT 0.4VA 20V |
3,273 |
|
数据手册 |
T | Tray | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101L2CWZQESWITCH TOGGLE SPDT 5A 120V |
2,262 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.97mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
