双向可控硅（TRIACs）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 双向可控硅类型 | 电压 - 关断状态 | 电流 - 导通状态 (It (RMS))（最大值） | 电压 - 栅极触发 (Vgt)（最大值） | 电流 - 非重复浪涌 50, 60Hz (Itsm) | 电流 - 栅极触发 (Igt)（最大值） | 保持电流 (Ih)（最大值） | 配置 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

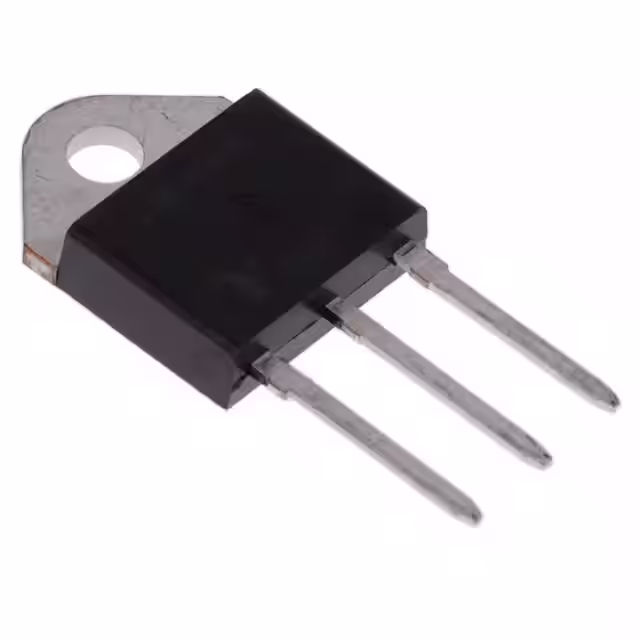

QJ6040K4TPTRIAC 600V 40A TO218AC |
2,064 |
|
数据手册 |
QJxx40xx | TO-218-3 Isolated Tab, TO-218AC | Tube | Active | Standard | 600 V | 40 A | 1.3 V | 420A, 500A | 50 mA | 80 mA | Single | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-218AC Isolated |
|
QJ6040KH5TPTRIAC ALTERNSTR 600V 40A TO218AC |
6,500 |
|
数据手册 |
QJxx40xx | TO-218-3 Isolated Tab, TO-218AC | Tube | Active | Alternistor - Snubberless | 600 V | 40 A | 1.3 V | 420A, 500A | 50 mA | 75 mA | Single | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-218AC Isolated |
|
QJ8040KH5TPTRIAC ALTERNSTR 800V 40A TO218AC |
8,308 |
|
数据手册 |
QJxx40xx | TO-218-3 Isolated Tab, TO-218AC | Tube | Active | Alternistor - Snubberless | 800 V | 40 A | 1.3 V | 420A, 500A | 50 mA | 75 mA | Single | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-218AC Isolated |
|
Z0103MUFTRIAC SENS GATE 600V 1A SMBFLAT |
4,042 |
|
数据手册 |
- | 3-SMB, Flat Leads | Tape & Reel (TR) | Active | Logic - Sensitive Gate | 600 V | 1 A | 1.3 V | 8A, 8.5A | 3 mA | 7 mA | Single | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SMBflat-3L |
,TO-226_straightlead.jpg)
|
ACS108-6SATRIAC SENS GATE 600V 0.45A TO92 |
9,286 |
|
数据手册 |
ACS™/A.S.D® | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Logic - Sensitive Gate | 600 V | 450 mA | 1 V | 7.3A, 7.6A | 10 mA | 25 mA | Single | -30°C ~ 125°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
L0107METRIAC SENS GATE 600V 1A TO92 |
2,578 |
|
数据手册 |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Logic - Sensitive Gate | 600 V | 1 A | 1.3 V | 10A, 12A | 5 mA | 10 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-92 |
.jpg)
|
Q4008R4TPTRIAC 400V 8A TO220AB |
8,306 |
|
数据手册 |
- | TO-220-3 | Tube | Active | Standard | 400 V | 8 A | 1.3 V | 83A, 100A | 25 mA | 50 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220AB-R |
|
Q6012LTH1LEDTPTRIAC INT TRIGGER 600V 12A TO220 |
3,672 |
|
数据手册 |
- | TO-220-3 Isolated Tab | Tube | Active | Internally Triggered | 600 V | 12 A | - | 110A, 120A | - | 8 mA | Single | -40°C ~ 110°C (TJ) | - | - | Through Hole | TO-220 Isolated Tab |
|
MAC16MGTRIAC 600V 16A TO220AB |
7,441 |
|
数据手册 |
- | TO-220-3 | Box | Active | Standard | 600 V | 16 A | 1.5 V | 150A @ 60Hz | 50 mA | 50 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
Q6004LTTPTRIAC ALTRNSTR 600V 15A ITO220AB |
8,192 |
|
数据手册 |
Teccor® | TO-220-3 Full Pack, Isolated Tab | Tube | Active | Alternistor - Snubberless, Internally Triggered | 600 V | 15 A | - | 167A, 200A | - | 40 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | ITO-220AB |
|
|
L6008R6TPTRIAC SENS GATE 600V 8A TO220AB |
8,636 |
|
数据手册 |
- | TO-220-3 | Tube | Active | Logic - Sensitive Gate | 600 V | 8 A | 1.3 V | 65A, 85A | 5 mA | 10 mA | Single | -40°C ~ 110°C (TJ) | - | - | Through Hole | TO-220AB |
|
BTB06-600CWRGTRIAC ALTERNISTOR 600V 6A TO220 |
8,604 |
|
数据手册 |
Snubberless™ | TO-220-3 | Tube | Active | Alternistor - Snubberless | 600 V | 6 A | 1.3 V | 60A, 63A | 35 mA | 35 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
|
BTB08-600CRGTRIAC 600V 8A TO220 |
7,114 |
|
数据手册 |
- | TO-220-3 | Tube | Active | Standard | 600 V | 8 A | 1.3 V | 80A, 84A | 25 mA | 25 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
|
T810H-6TTRIAC SENS GATE 600V 8A TO220 |
2,643 |
|
数据手册 |
- | TO-220-3 | Tube | Active | Logic - Sensitive Gate | 600 V | 8 A | 1 V | 80A, 84A | 10 mA | 25 mA | Single | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
T835-600HTRIAC ALTERNISTOR 600V 8A TO251 |
7,757 |
|
数据手册 |
Snubberless™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | Alternistor - Snubberless | 600 V | 8 A | 1.3 V | 80A, 84A | 35 mA | 35 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|

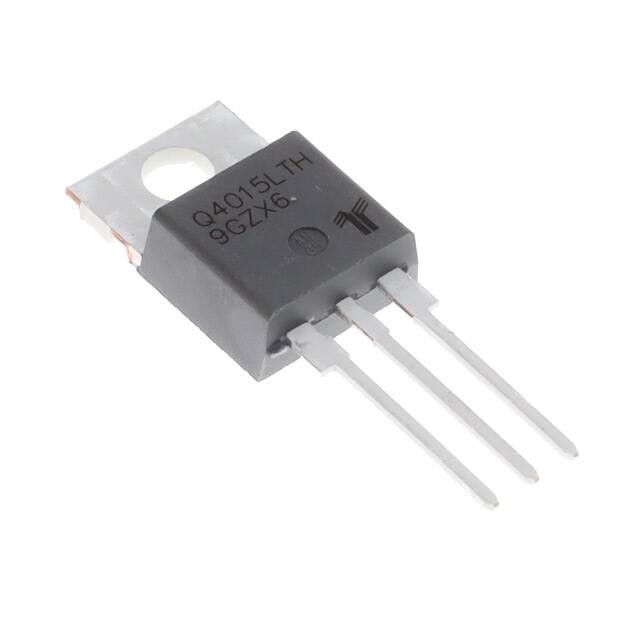

Q4015LTHTPTRIAC INT TRIG 400V 4A ITO220AB |
7,445 |
|
数据手册 |
Teccor® | TO-220-3 Full Pack, Isolated Tab | Tube | Active | Internally Triggered, Standard | 400 V | 4 A | - | 46A, 55A | - | 70 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | ITO-220AB |
|
|
ACST210-8FPTRIAC SENS GATE 800V 2A TO220AB |
3,955 |
|
数据手册 |
ACS™/A.S.D® | TO-220-3 Full Pack | Tube | Active | Logic - Sensitive Gate | 800 V | 2 A | 1.1 V | 8A, 8.4A | 10 mA | 10 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220FPAB |
|
T1210T-8GTRIAC SENS GATE 800V 12A D2PAK |
3,440 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | Logic - Sensitive Gate | 800 V | 12 A | 1 V | 100A, 105A | 10 mA | 25 mA | Single | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
Q8012LH5TPTRIAC ALTERNISTOR 800V 12A TO220 |
3,336 |
|
数据手册 |
- | TO-220-3 Isolated Tab | Tube | Active | Alternistor - Snubberless | 800 V | 12 A | 1.3 V | 110A, 120A | 50 mA | 50 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 Isolated Tab |
|
T1010H-6G-TRTRIAC SENS GATE 600V 10A D2PAK |
4,007 |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Logic - Sensitive Gate | 600 V | 10 A | 1 V | 100A, 105A | 10 mA | 25 mA | Single | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
