双向可控硅（TRIACs）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 双向可控硅类型 | 电压 - 关断状态 | 电流 - 导通状态 (It (RMS))（最大值） | 电压 - 栅极触发 (Vgt)（最大值） | 电流 - 非重复浪涌 50, 60Hz (Itsm) | 电流 - 栅极触发 (Igt)（最大值） | 保持电流 (Ih)（最大值） | 配置 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AC03FGM(CY)-AZTRIAC 600V 3A TO202 |
10,862 |
|
数据手册 |
- | TO-202 Long Tab | Bulk | Obsolete | Standard | 600 V | 3 A | 1.5 V | 30A, 33A | 12 mA | 10 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-202 |
|
BTA25-600CW3GTRIAC 600V 25A TO220AB |
45,250 |
|
数据手册 |
- | TO-220-3 | Bulk | Active | Standard | 600 V | 25 A | 1.3 V | 250A @ 60Hz | 35 mA | 50 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
BCR16CM-12LBAP#BB0TRIAC 600V 10A |
376 |
|
数据手册 |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BCR25KR-12LB#B00TRIAC 600V 25A TO220FN |
729 |
|
数据手册 |
- | TO-220-3 Full Pack | Bulk | Obsolete | Standard | 600 V | 25 A | - | 250A @ 60Hz | 50 mA | - | Single | 150°C (TJ) | - | - | Through Hole | TO-220FN |
|
|
BTA06T-600CWRGTRIAC ALTERNISTOR 600V 6A TO220 |
3,142 |
|
数据手册 |
Snubberless™ | TO-220-3 | Tube | Active | Alternistor - Snubberless | 600 V | 6 A | 1.3 V | 45A, 47A | 35 mA | 35 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220AB Insulated |
|
MAC08BT1GTRIAC SENS GATE 200V 0.8A SOT223 |
3,481 |
|
数据手册 |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Logic - Sensitive Gate | 200 V | 800 mA | 2 V | 8A @ 60Hz | 10 mA | 5 mA | Single | -40°C ~ 110°C (TJ) | - | - | Surface Mount | SOT-223 |
|
|
BTB12-800BW3GTRIAC 800V 12A TO220AB |
2,863 |
|
数据手册 |
- | TO-220-3 | Tube | Active | Standard | 800 V | 12 A | 1.1 V | 120A @ 60Hz | 50 mA | 50 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
MAC12SMGTRIAC SENS GATE 600V 12A TO220AB |
4,622 |
|
数据手册 |
- | TO-220-3 | Box | Active | Logic - Sensitive Gate | 600 V | 12 A | 1.5 V | 90A @ 60Hz | 5 mA | 10 mA | Single | -40°C ~ 110°C (TJ) | - | - | Through Hole | TO-220AB |
|
T410-700TTRIAC SENS GATE 700V 4A TO220 |
3,286 |
|
数据手册 |
- | TO-220-3 | Tube | Active | Logic - Sensitive Gate | 700 V | 4 A | 1.3 V | 30A, 31A | 10 mA | 15 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
|
BTB16-800CWRGTRIAC ALTERNISTOR 800V 16A TO220 |
2,066 |
|
数据手册 |
Snubberless™ | TO-220-3 | Tube | Active | Alternistor - Snubberless | 800 V | 16 A | 1.3 V | 160A, 168A | 35 mA | 35 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
|
MAC8NGTRIAC 800V 8A TO220AB |
4,787 |
|
数据手册 |
- | TO-220-3 | Box | Active | Standard | 800 V | 8 A | 1.5 V | 80A @ 60Hz | 35 mA | 40 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220AB |
|
T3050H-6GTRIAC ALTERNISTOR 600V 30A D2PAK |
2,620 |
|
数据手册 |
Snubberless™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | Alternistor - Snubberless | 600 V | 30 A | 1 V | 270A, 284A | 50 mA | 75 mA | Single | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
CLA40MT1200NPBTRIAC 1.2KV 44A TO220-3 |
3,893 |
|
数据手册 |
DT-Triac™ | TO-220-3 | Tube | Active | Standard | 1.2 kV | 44 A | 1.3 V | 200A, 215A | 40 mA | 50 mA | Single | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
Q8040J7TPTRIAC ALTERNSTR 800V 40A TO218X |
2,405 |
|
数据手册 |
- | TO-218X-3 Isolated Tab | Tube | Active | Alternistor - Snubberless | 800 V | 40 A | 2 V | 335A, 400A | 100 mA | 100 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-218X Isolated |
|
SST138C-800ETRIAC 800V 12A TO220C |
960 |
|
数据手册 |
SST138 | TO-220-3 | Tube | Active | Standard | 800 V | 12 A | 1.5 V | 95A @ 50Hz | 25 mA | 25 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220C |
|
|
SST139C-600ETRIAC 600V 16A TO220C |
253 |
|
数据手册 |
- | TO-220-3 | Tube | Active | Standard | 600 V | 16 A | 1.3 V | 140A @ 50Hz | 25 mA | 25 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220C |
|

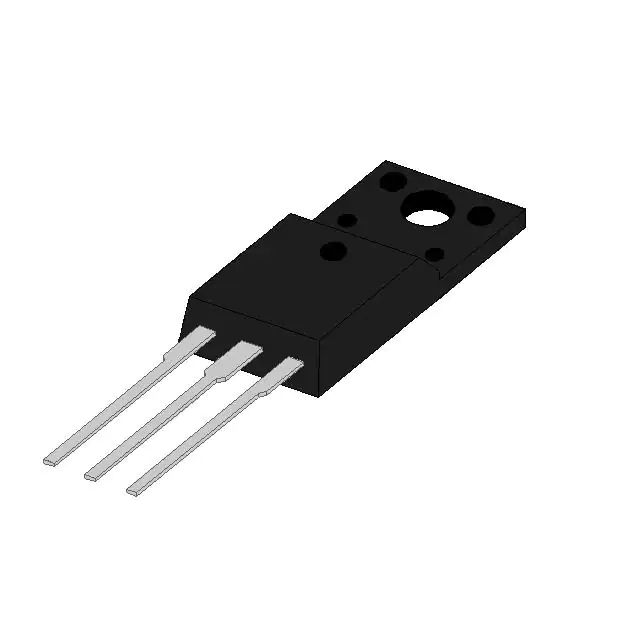

T1235H8FTRIAC 800V 12A TO220F |
957 |
|
数据手册 |
T1235H8F | TO-220-3 Full Pack | Tube | Active | Standard | 800 V | 12 A | 1.3 V | 120A @ 50Hz | 35 mA | 45 mA | Single | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F |
|
Z0107MUFTRIAC SENS GATE 600V 1A SMBFLAT |
1,820 |
|
数据手册 |
- | 3-SMB, Flat Leads | Tape & Reel (TR) | Active | Logic - Sensitive Gate | 600 V | 1 A | 1.3 V | 8A, 8.5A | 5 mA | 10 mA | Single | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SMBflat-3L |
|
|
SST24A-800CWTRIAC 800V 25A TO220AINS |
1,000 |
|
数据手册 |
SST24 | TO-220-3 | Tube | Active | Standard | 800 V | 25 A | 1.3 V | 250A @ 50Hz | 35 mA | 50 mA | Single | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220AIns |
.JPG)
|
2N6071BTGTRIAC SENS GATE 200V 4A TO225AA |
577 |
|
数据手册 |
- | TO-225AA, TO-126-3 | Tube | Active | Logic - Sensitive Gate | 200 V | 4 A | 2.5 V | 30A @ 60Hz | 3 mA | 15 mA | Single | -40°C ~ 110°C (TJ) | - | - | Through Hole | TO-225AA |
