滚轮开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 输出代码 | 读出方式 | 节数 | 显示字符 - 高度 | 执行器类型 | 触点额定值 @ 电压 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 端盖 | 节宽 | 面板开孔尺寸 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A7AS-206SWITCH THUMB BCD 0.1A 50V |
1,351 |
|
数据手册 |
A7AS | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 85°C |
|
|
A7AS-206-1SWITCH THUMB BCD 0.1A 50V |
3,414 |
|
数据手册 |
A7AS | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 85°C |
|
|
A7AS-207SWITCH THUMB BCD 0.1A 50V |
4,017 |
|
数据手册 |
A7AS | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 85°C |
|
|
A7AS-207-1SWITCH THUMB BCD 0.1A 50V |
4,844 |
|
数据手册 |
A7AS | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 85°C |
|
|
A7AS-207-PMSWITCH THUMB SPDT 0.1A 50V |
3,168 |
|
数据手册 |
A7AS | Bulk | Obsolete | SPDT | +/- | 1 | - | Thumbwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 85°C |
|
|
A7BS-203SWITCH THUMB DECIMAL 0.1A 50V |
4,311 |
|
数据手册 |
A7BS | Tray | Obsolete | Decimal | 0 ~ 9 | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -10°C ~ 65°C |
|
A7BS-203-1SWITCH THUMB DECIMAL 0.1A 50V |
3,052 |
|
数据手册 |
A7BS | Tray | Obsolete | Decimal | 0 ~ 9 | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.315" (8.00mm) | - | - | -10°C ~ 65°C |
|
|
A7BS-219SWITCH THUMB DECIMAL 0.1A 50V |
1,328 |
|
数据手册 |
A7BS | Tray | Obsolete | Decimal | 0 ~ 9 | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -10°C ~ 65°C |
|
|
A7BS-219-1SWITCH THUMB DECIMAL 0.1A 50V |
4,482 |
|
数据手册 |
A7BS | Tray | Obsolete | Decimal | 0 ~ 9 | 1 | 0.189" (4.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -10°C ~ 65°C |
|
|
A7F-241-1-1SWITCH THUMB OCTAL 0.1A 5V |
1,429 |
|
数据手册 |
A7F | Bulk | Obsolete | Octal | 0 ~ 7 | 1 | - | Pushwheel | 0.1A @ 5VDC | - | - | Panel Mount, Snap-In | Connector | - | 0.276" (7.00mm) | Rectangular - 14.70mm x 5.20mm | Pen-Push Actuator | -10°C ~ 70°C |
|
|
A7PH-219SWITCH THUMB DECIMAL 0.15A 125V |
4,701 |
|
数据手册 |
A7PH | Tray | Obsolete | Decimal | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
|
A7PS-219-1SWITCH THUMB DECIMAL 0.1A 50V |
2,215 |
|
数据手册 |
A7PS | Tray | Active | Decimal | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
|
A7SS-106SWITCH THUMB BCD 0.1A 50V |
3,973 |
|
数据手册 |
A7SS | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | 0.500" (12.70mm) | - | - | -40°C ~ 85°C |
|
PABA-3000SWITCH THUMB OCTAL 0.1A 50V |
4,219 |
|
数据手册 |
PA | Bulk | Obsolete | Octal | 0 ~ 7 | 1 | 0.120" (3.00mm) | Pushwheel | 0.1A @ 50VAC/DC | - | Gold Alloy | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
|
PACA-3100SWITCH THUMB BCD 0.1A 50V |
4,178 |
|
数据手册 |
PA | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | 0.120" (3.00mm) | Pushwheel | 0.1A @ 50VAC/DC | - | Gold Alloy | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.300" (7.62mm) | Rectangular - 14.30mm x 10.92mm | - | -20°C ~ 80°C |
|
PACA-3114SWITCH THUMB BCD 0.1A 50V |
3,234 |
|
数据手册 |
PA | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | 0.120" (3.00mm) | Pushwheel | 0.1A @ 50VAC/DC | - | Gold Alloy | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.300" (7.62mm) | Rectangular - 14.30mm x 10.92mm | Pen-Push Actuator | -20°C ~ 80°C |
|

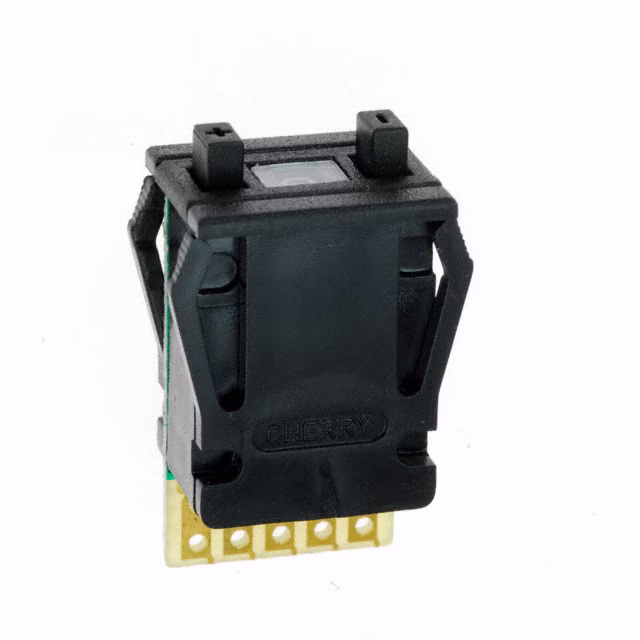

PAGA-3100SWITCH THUMB HEX 0.1A 50V |
2,636 |
|
数据手册 |
PA | Bulk | Obsolete | Hexadecimal | 0 ~ 15 | 1 | 0.071" (1.80mm) | Pushwheel | 0.1A @ 50VAC/DC | - | Gold Alloy | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.300" (7.62mm) | Rectangular - 14.30mm x 10.92mm | - | -20°C ~ 80°C |
|

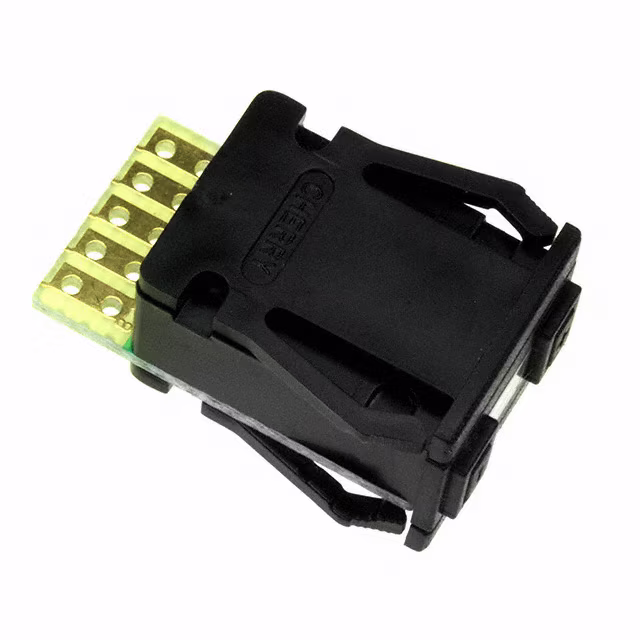

PAGA-3114SWITCH THUMB HEX 0.1A 50V |
2,480 |
|
数据手册 |
PA | Bulk | Obsolete | Hexadecimal | 0 ~ 15 | 1 | 0.071" (1.80mm) | Pushwheel | 0.1A @ 50VAC/DC | - | Gold Alloy | Panel Mount, Snap-In | Card Edge/Solder Pad | Included | 0.300" (7.62mm) | Rectangular - 14.30mm x 10.92mm | Pen-Push Actuator | -20°C ~ 80°C |
|
302109300SWITCH THUMB BCD 0.1A 120V |
3,490 |
|
数据手册 |
3 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.315" (8.00mm) | - | - | -40°C ~ 65°C |
|
|
302119300SWITCH THUMB BCD 0.1A 120V |
1,010 |
|
数据手册 |
3 | Tray | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | PC Pin | Sold Separately | 0.350" (8.89mm) | - | - | -40°C ~ 65°C |
