通孔式电阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AC03000005007JAC00RES 0.5 OHM 3W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
288 |
|
数据手册 |
AC | Cut Tape (CT) | Active | 500 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.189" Dia x 0.512" L (4.80mm x 13.00mm) | - | 2 | - |
|
VR68000001005JAC00RES 10M OHM 1W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
7,039 |
|
数据手册 |
VR68 | Cut Tape (CT) | Active | 10 MOhms | ±5% | 1W | Metal Film | High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.268" Dia x 0.709" L (6.80mm x 18.00mm) | - | 2 | - |
|
VR68000006805JAC00RES 68M OHM 1W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
8,509 |
|
数据手册 |
VR68 | Cut Tape (CT) | Active | 68 MOhms | ±5% | 1W | Metal Film | High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.268" Dia x 0.709" L (6.80mm x 18.00mm) | - | 2 | - |
|

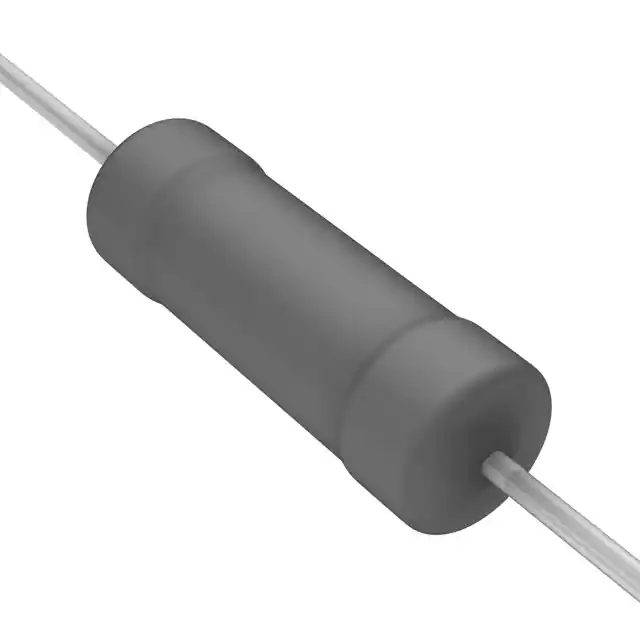

PAC300001008FAC000RES 1 OHM 3W 1% AXIAL Vishay Beyschlag/Draloric/BC Components |
39,221 |
|
数据手册 |
PAC | Cut Tape (CT) | Active | 1 Ohms | ±1% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|
|
PAC300003307FAC000RES 0.33 OHM 3W 1% AXIAL Vishay Beyschlag/Draloric/BC Components |
7,038 |
|
数据手册 |
PAC | Cut Tape (CT) | Active | 330 mOhms | ±1% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|
VR68000001004FAC00RES 1M OHM 1W 1% AXIAL Vishay Beyschlag/Draloric/BC Components |
8,012 |
|
数据手册 |
VR68 | Cut Tape (CT) | Active | 1 MOhms | ±1% | 1W | Metal Film | High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.268" Dia x 0.709" L (6.80mm x 18.00mm) | - | 2 | - |
|
PAC500001307FAC000RES 0.13 OHM 5W 1% AXIAL Vishay Beyschlag/Draloric/BC Components |
8,168 |
|
数据手册 |
PAC | Cut Tape (CT) | Active | 130 mOhms | ±1% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
AC03000004701JAC00RES 4.7K OHM 3W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
9,342 |
|
数据手册 |
AC | Cut Tape (CT) | Active | 4.7 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -40°C ~ 275°C | Axial | 0.189" Dia x 0.512" L (4.80mm x 13.00mm) | - | 2 | - |
|
AC05000006201JAC00RES 6.2K OHM 5W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
5,608 |
|
数据手册 |
AC | Cut Tape (CT) | Active | 6.2 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
AC05000001002JAC00RES 10K OHM 5W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
1,272 |
|
数据手册 |
AC | Cut Tape (CT) | Active | 10 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
