通孔式电阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOX91028002JTERES 80K OHM 5% 3.9W AXIAL |
4,053 |
|
数据手册 |
Super-Mox | Bulk | Active | 80 kOhms | ±5% | 3.9W | Metal Oxide Film | High Voltage, Moisture Resistant, Non-Inductive | ±100ppm/°C | -55°C ~ 225°C | Axial | 0.323" Dia x 1.071" L (8.20mm x 27.20mm) | - | 2 | - |
|
|
MOX-750221605KE1RES 16M OHM 10% 0.7W AXIAL |
1,510 |
|
数据手册 |
Mini-Mox | Bulk | Active | 16 MOhms | ±10% | 0.7W | Thick Film | High Voltage | 25ppm/°C | -55°C ~ 220°C | Axial | 0.140" Dia x 0.820" L (3.56mm x 20.83mm) | - | 2 | - |
|
|
MOX-750221805KE1RES 0.018 OHM 10% 0.7W AXIAL |
2,388 |
|
数据手册 |
Mini-Mox | Bulk | Active | 18 mOhms | ±10% | 0.7W | Thick Film | High Voltage | 25ppm/°C | -55°C ~ 220°C | Axial | 0.140" Dia x 0.820" L (3.56mm x 20.83mm) | - | 2 | - |
|
SM103021006FERES 100M OHM 1% 2W RADIAL |
2,413 |
|
数据手册 |
Slim-Mox HT | Bulk | Active | 100 MOhms | ±1% | 2W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 180°C | Radial | 0.750" L x 0.070" W (19.05mm x 1.78mm) | 0.250" (6.35mm) | 2 | - |
|

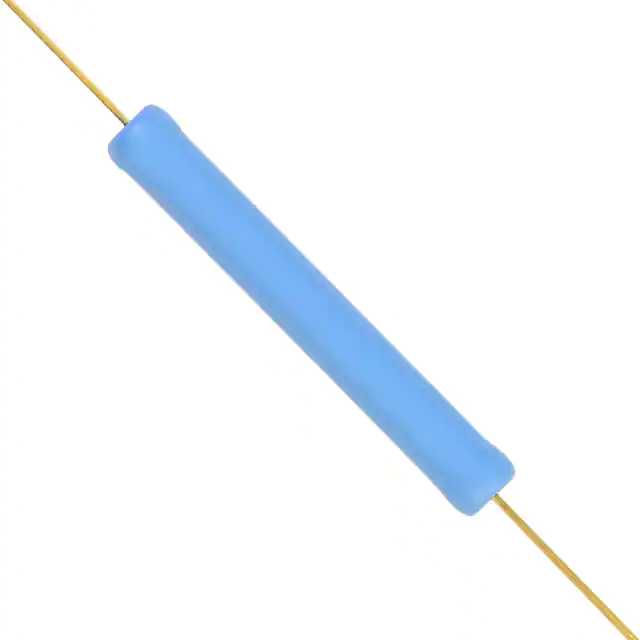

HVAM20FBC100MRES 100M OHM 1% 2W AXIAL |
3,899 |
|
数据手册 |
HVAM | Bulk | Obsolete | 100 MOhms | ±1% | 2W | Metal Film | High Voltage | ±50ppm/°C | -55°C ~ 225°C | Axial | 0.180" Dia x 1.500" L (4.57mm x 38.10mm) | - | 2 | - |
|
|
HVAM20FBC1G00RES 1 GOHM 1% 2W AXIAL |
3,259 |
|
数据手册 |
HVAM | Bulk | Obsolete | 1 GOhms | ±1% | 2W | Metal Film | High Voltage | ±50ppm/°C | -55°C ~ 225°C | Axial | 0.180" Dia x 1.500" L (4.57mm x 38.10mm) | - | 2 | - |
|
|
HVAM36FBC100MRES 100M OHM 1% 3.6W AXIAL |
3,596 |
|
数据手册 |
HVAM | Bulk | Obsolete | 100 MOhms | ±1% | 3.6W | Metal Film | High Voltage | ±50ppm/°C | -55°C ~ 225°C | Axial | 0.310" Dia x 1.500" L (7.87mm x 38.10mm) | - | 2 | - |
|
|
HVAM50FBC10M0RES 10M OHM 1% 5W AXIAL |
3,204 |
|
数据手册 |
HVAM | Bulk | Obsolete | 10 MOhms | ±1% | 5W | Metal Film | High Voltage | ±50ppm/°C | -55°C ~ 225°C | Axial | 0.310" Dia x 2.125" L (7.87mm x 53.98mm) | - | 2 | - |
|
|
HVAM75FBC500MRES 500M OHM 1% 7.5W AXIAL |
4,234 |
|
数据手册 |
HVAM | Bulk | Obsolete | 500 MOhms | ±1% | 7.5W | Metal Film | High Voltage | ±50ppm/°C | -55°C ~ 225°C | Axial | 0.310" Dia x 3.125" L (7.87mm x 79.38mm) | - | 2 | - |
|
|
HVAM100FBC100MRES 100M OHM 1% 10W AXIAL |
2,559 |
|
数据手册 |
HVAM | Bulk | Obsolete | 100 MOhms | ±1% | 10W | Metal Film | High Voltage | ±50ppm/°C | -55°C ~ 225°C | Axial | 0.310" Dia x 5.000" L (7.87mm x 127.00mm) | - | 2 | - |
|
|
HVAM100FBC10G0RES 10 GOHM 1% 10W AXIAL |
3,093 |
|
数据手册 |
HVAM | Bulk | Obsolete | 10 GOhms | ±1% | 10W | Metal Film | High Voltage | ±50ppm/°C | -55°C ~ 225°C | Axial | 0.310" Dia x 5.000" L (7.87mm x 127.00mm) | - | 2 | - |
|

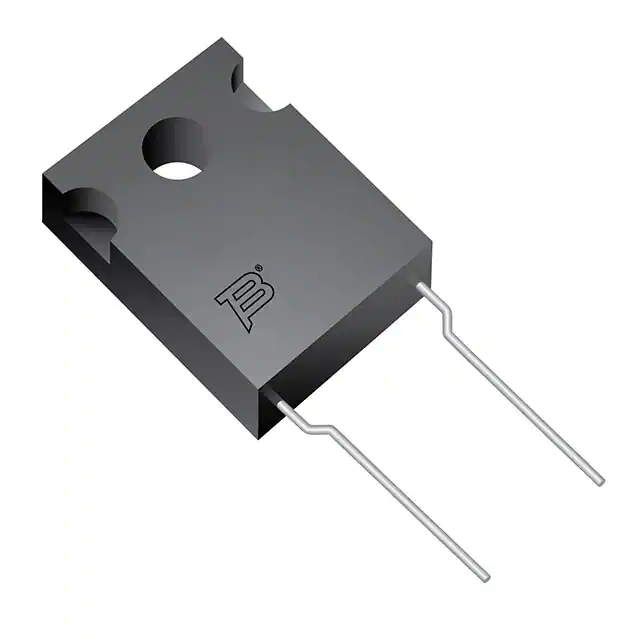

PWR247T-100-1R00JRES 1 OHM 5% 100W TO247 |
2,789 |
|
数据手册 |
PWR247T-100 | Tube | Discontinued at Digi-Key | 1 Ohms | ±5% | 100W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.50mm) | 2 | - |
|
|
PWR247T-100-2R00JRES 2 OHM 5% 100W TO247 |
3,667 |
|
数据手册 |
PWR247T-100 | Tube | Discontinued at Digi-Key | 2 Ohms | ±5% | 100W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.50mm) | 2 | - |
|
|
PWR247T-100-3R30JRES 3.3 OHM 5% 100W TO247 |
4,967 |
|
数据手册 |
PWR247T-100 | Tube | Discontinued at Digi-Key | 3.3 Ohms | ±5% | 100W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.50mm) | 2 | - |
|
|
PWR247T-100-10R0JRES 10 OHM 5% 100W TO247 |
4,834 |
|
数据手册 |
PWR247T-100 | Tube | Discontinued at Digi-Key | 10 Ohms | ±5% | 100W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.50mm) | 2 | - |
|
|
PWR247T-100-15R0JRES 15 OHM 5% 100W TO247 |
4,272 |
|
数据手册 |
PWR247T-100 | Tube | Discontinued at Digi-Key | 15 Ohms | ±5% | 100W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.50mm) | 2 | - |
|
|
PWR247T-100-20R0JRES 20 OHM 5% 100W TO247 |
1,858 |
|
数据手册 |
PWR247T-100 | Tube | Discontinued at Digi-Key | 20 Ohms | ±5% | 100W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.50mm) | 2 | - |
|
|
PWR247T-100-47R0JRES 47 OHM 5% 100W TO247 |
3,475 |
|
数据手册 |
PWR247T-100 | Tube | Discontinued at Digi-Key | 47 Ohms | ±5% | 100W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.50mm) | 2 | - |
|
|
PWR247T-100-1000JRES 100 OHM 5% 100W TO247 |
2,803 |
|
数据手册 |
PWR247T-100 | Tube | Discontinued at Digi-Key | 100 Ohms | ±5% | 100W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.50mm) | 2 | - |
|
|
PWR247T-100-1R00FRES 1 OHM 1% 100W TO247 |
2,588 |
|
数据手册 |
PWR247T-100 | Tube | Discontinued at Digi-Key | 1 Ohms | ±1% | 100W | Thick Film | Automotive AEC-Q200 | ±200ppm/°C | -55°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.50mm) | 2 | - |
