通孔式电阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPL07R0220JE14RES 0.022 OHM 7W 5% AXIAL |
3,875 |
|
数据手册 |
CPL | Bulk | Obsolete | 22 mOhms | ±5% | 7W | Wirewound | Flame Proof, Pulse Withstanding, Safety | ±300ppm/°C | -65°C ~ 275°C | Axial | 1.391" L x 0.375" W (35.32mm x 9.52mm) | - | 2 | - |
|
|
CPL07R0360JE14RES 0.036 OHM 7W 5% AXIAL |
4,198 |
|
数据手册 |
CPL | Bulk | Obsolete | 36 mOhms | ±5% | 7W | Wirewound | Flame Proof, Pulse Withstanding, Safety | ±300ppm/°C | -65°C ~ 275°C | Axial | 1.391" L x 0.375" W (35.32mm x 9.52mm) | - | 2 | - |
|
|
CPL10R0100FE31RES 0.01 OHM 10W 1% AXIAL |
4,362 |
|
数据手册 |
CPL | Bulk | Obsolete | 10 mOhms | ±1% | 10W | Wirewound | Flame Proof, Pulse Withstanding, Safety | ±300ppm/°C | -65°C ~ 275°C | Axial | 1.875" L x 0.375" W (47.62mm x 9.52mm) | - | 2 | - |
|
|
CPL10R0560JB14RES 0.056 OHM 10W 5% AXIAL |
4,218 |
|
数据手册 |
CPL | Bulk | Obsolete | 56 mOhms | ±5% | 10W | Wirewound | Flame Proof, Pulse Withstanding, Safety | ±300ppm/°C | -65°C ~ 275°C | Axial | 1.875" L x 0.375" W (47.62mm x 9.52mm) | - | 2 | - |
|

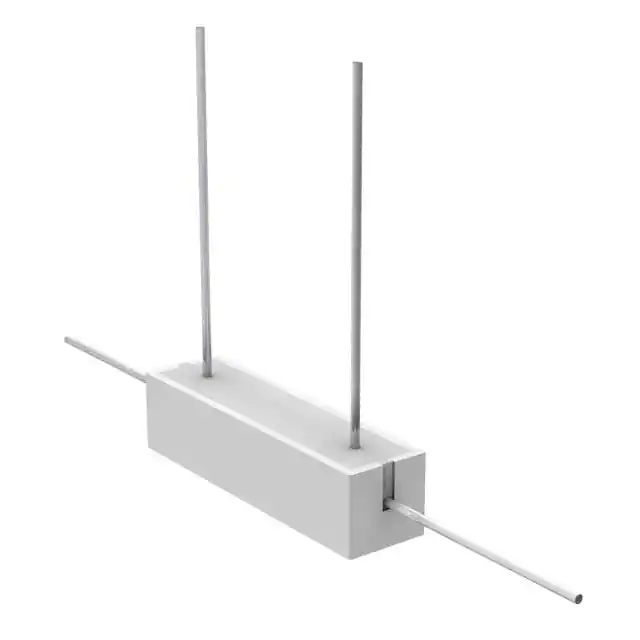

CPSL03R0120JB145RES 0.012 OHM 3W 5% 4LEAD |
3,005 |
|
数据手册 |
CPSL | Bulk | Obsolete | 12 mOhms | ±5% | 3W | Wirewound | Current Sense, Flame Proof, Pulse Withstanding, Safety | ±100ppm/°C | -65°C ~ 275°C | - | 0.875" L x 0.313" W (22.22mm x 7.94mm) | - | 4 | - |
|
|
CPSL03R0130FB145RES 0.013 OHM 3W 1% 4LEAD |
1,370 |
|
数据手册 |
CPSL | Bulk | Obsolete | 13 mOhms | ±1% | 3W | Wirewound | Current Sense, Flame Proof, Pulse Withstanding, Safety | ±100ppm/°C | -65°C ~ 275°C | - | 0.875" L x 0.313" W (22.22mm x 7.94mm) | - | 4 | - |
|
|
CPSL05R0150JB145RES 0.015 OHM 5W 5% 4LEAD |
4,836 |
|
数据手册 |
CPSL | Bulk | Obsolete | 15 mOhms | ±5% | 5W | Wirewound | Current Sense, Flame Proof, Pulse Withstanding, Safety | ±100ppm/°C | -65°C ~ 275°C | - | 0.875" L x 0.375" W (22.22mm x 9.52mm) | - | 4 | - |
|
|
CPSL05R1000FE145RES 0.1 OHM 5W 1% 4LEAD |
3,071 |
|
数据手册 |
CPSL | Bulk | Obsolete | 100 mOhms | ±1% | 5W | Wirewound | Current Sense, Flame Proof, Pulse Withstanding, Safety | ±100ppm/°C | -65°C ~ 275°C | - | 0.875" L x 0.375" W (22.22mm x 9.52mm) | - | 4 | - |
|
|
CPSL07R0120FB145RES 0.012 OHM 7W 1% 4LEAD |
3,849 |
|
数据手册 |
CPSL | Bulk | Obsolete | 12 mOhms | ±1% | 7W | Wirewound | Current Sense, Flame Proof, Pulse Withstanding, Safety | ±100ppm/°C | -65°C ~ 275°C | - | 1.391" L x 0.375" W (35.32mm x 9.52mm) | - | 4 | - |
|
|
CPSL07R0200JE145RES 0.02 OHM 5% 7W AXIAL |
1,031 |
|
数据手册 |
CPSL | Bulk | Obsolete | 20 mOhms | ±5% | 7W | Wirewound | Current Sense, Flame Proof, Pulse Withstanding, Safety | ±100ppm/°C | -65°C ~ 275°C | - | 1.391" L x 0.375" W (35.32mm x 9.52mm) | - | 4 | - |
|
|
CPSL10R0250JB145RES 0.025 OHM 10W 5% 4LEAD |
4,609 |
|
数据手册 |
CPSL | Bulk | Obsolete | 25 mOhms | ±5% | 10W | Wirewound | Current Sense, Flame Proof, Pulse Withstanding, Safety | ±100ppm/°C | -65°C ~ 275°C | - | 1.875" L x 0.375" W (47.62mm x 9.52mm) | - | 4 | - |
|
|
CPSL10R0250JB315RES 0.025 OHM 10W 5% 4LEAD |
2,953 |
|
数据手册 |
CPSL | Bulk | Obsolete | 25 mOhms | ±5% | 10W | Wirewound | Current Sense, Flame Proof, Pulse Withstanding, Safety | ±100ppm/°C | -65°C ~ 275°C | - | 1.875" L x 0.375" W (47.62mm x 9.52mm) | - | 4 | - |
|
|
CPSL15R0400HB145RES 0.04 OHM 15W 3% 4LEAD |
3,939 |
|
数据手册 |
CPSL | Bulk | Obsolete | 40 mOhms | ±3% | 15W | Wirewound | Current Sense, Flame Proof, Pulse Withstanding, Safety | ±100ppm/°C | -65°C ~ 275°C | - | 1.875" L x 0.500" W (47.63mm x 12.70mm) | - | 4 | - |
|
|
CPSL15R0400HB315RES 0.04 OHM 15W 3% 4LEAD |
1,837 |
|
数据手册 |
CPSL | Bulk | Obsolete | 40 mOhms | ±3% | 15W | Wirewound | Current Sense, Flame Proof, Pulse Withstanding, Safety | ±100ppm/°C | -65°C ~ 275°C | - | 1.875" L x 0.500" W (47.63mm x 12.70mm) | - | 4 | - |
|
|
CP0010100R0JE663RES 100 OHM 10W 5% AXIAL |
4,369 |
|
数据手册 |
CP | Bulk | Obsolete | 100 Ohms | ±5% | 10W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -65°C ~ 275°C | Axial | 1.890" L x 0.394" W (48.00mm x 10.00mm) | - | 2 | - |
|
|
CP0010100R0KE663RES 100 OHM 10W 10% AXIAL |
3,336 |
|
数据手册 |
CP | Bulk | Obsolete | 100 Ohms | ±10% | 10W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -65°C ~ 275°C | Axial | 1.890" L x 0.394" W (48.00mm x 10.00mm) | - | 2 | - |
|
|
CP001010R00JE663RES 10 OHM 10W 5% AXIAL |
2,570 |
|
数据手册 |
CP | Bulk | Obsolete | 10 Ohms | ±5% | 10W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -65°C ~ 275°C | Axial | 1.890" L x 0.394" W (48.00mm x 10.00mm) | - | 2 | - |
|
|
CP001010R00KE663RES 10 OHM 10W 10% AXIAL |
1,843 |
|
数据手册 |
CP | Bulk | Obsolete | 10 Ohms | ±10% | 10W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -65°C ~ 275°C | Axial | 1.890" L x 0.394" W (48.00mm x 10.00mm) | - | 2 | - |
|
|
CP00101R000JE663RES 1 OHM 10W 5% AXIAL |
4,508 |
|
数据手册 |
CP | Bulk | Obsolete | 1 Ohms | ±5% | 10W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -65°C ~ 275°C | Axial | 1.890" L x 0.394" W (48.00mm x 10.00mm) | - | 2 | - |
|
|
CP001022R00JE663RES 22 OHM 10W 5% AXIAL |
4,009 |
|
数据手册 |
CP | Bulk | Obsolete | 22 Ohms | ±5% | 10W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -65°C ~ 275°C | Axial | 1.890" L x 0.394" W (48.00mm x 10.00mm) | - | 2 | - |
