通孔式电阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TA310PA1R00JERES 1 OHM 5% 10W POWERCHIP |
2,233 |
|
数据手册 |
Power Chip® TA | Bulk | Active | 1 Ohms | ±5% | 10W | Thick Film | - | ±450ppm/°C | -55°C ~ 180°C | Powerchip® | 1.000" L x 0.100" W (25.40mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|
TA310PA270RJRES 270 OHM 5% 10W POWERCHIP |
2,343 |
|
数据手册 |
Power Chip® TA | Bulk | Active | 270 Ohms | ±5% | 10W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 1.000" L x 0.100" W (25.40mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|
|
TA310PA33R0JRES 33 OHM 5% 10W POWERCHIP |
4,016 |
|
数据手册 |
Power Chip® TA | Bulk | Active | 33 Ohms | ±5% | 10W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 1.000" L x 0.100" W (25.40mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|
|
TA310PA33R0JERES 33 OHM 5% 10W POWERCHIP |
4,052 |
|
数据手册 |
Power Chip® TA | Bulk | Active | 33 Ohms | ±5% | 10W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 1.000" L x 0.100" W (25.40mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|
|
TA810PW100KJERES 100K OHM 5% 10W POWERCHIP |
3,213 |
|
数据手册 |
Power Chip® TA | Bulk | Active | 100 kOhms | ±5% | 10W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 1.085" L x 0.240" W (27.56mm x 6.10mm) | 1.020" (25.91mm) | 4 | - |
|
TA810PW39K0JRES 39K OHM 5% 10W POWERCHIP |
2,909 |
|
数据手册 |
Power Chip® TA | Bulk | Active | 39 kOhms | ±5% | 10W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 1.085" L x 0.240" W (27.56mm x 6.10mm) | 1.020" (25.91mm) | 4 | - |
|
TA810PW4K00JRES 4K OHM 5% 10W POWERCHIP |
3,905 |
|
数据手册 |
Power Chip® TA | Bulk | Active | 4 kOhms | ±5% | 10W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 1.085" L x 0.240" W (27.56mm x 6.10mm) | 1.020" (25.91mm) | 4 | - |
|
TA810PW75R0JRES 75 OHM 5% 10W POWERCHIP |
1,800 |
|
数据手册 |
Power Chip® TA | Bulk | Active | 75 Ohms | ±5% | 10W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 1.085" L x 0.240" W (27.56mm x 6.10mm) | 1.020" (25.91mm) | 4 | - |
|
TEH70M5R00JERES 5 OHM 5% 70W TO247 |
4,287 |
|
数据手册 |
TEH70 | Bulk | Obsolete | 5 Ohms | ±5% | 70W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | - | TO-247 | 0.626" L x 0.200" W (15.90mm x 5.08mm) | 0.830" (21.08mm) | 2 | - |
|
TUM5J7K5ERES 7.5K OHM 5% 5W AXIAL |
3,036 |
|
数据手册 |
TUM | Bulk | Active | 7.5 kOhms | ±5% | 5W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | - | Axial | 0.394" x 0.354" Rectangular x 0.866" L (10.00mm x 9.00mm x 22.00mm) | - | 2 | - |
|
|
TUW3J1R0ERES 1 OHM 5% 3W AXIAL |
1,317 |
|
数据手册 |
TUW | Bulk | Active | 1 Ohms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±400ppm/°C | - | Axial | 0.315" Square x 0.866" L (8.00mm x 22.00mm) | - | 2 | - |
|
|
TUW3J6R8ERES 6.8 OHM 5% 3W AXIAL |
4,477 |
|
数据手册 |
TUW | Bulk | Active | 6.8 Ohms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±400ppm/°C | - | Axial | 0.315" Square x 0.866" L (8.00mm x 22.00mm) | - | 2 | - |
|
TUW5J4R7ERES 4.7 OHM 5% 5W AXIAL |
1,435 |
|
数据手册 |
TUW | Bulk | Active | 4.7 Ohms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | - | Axial | 0.394" x 0.354" Rectangular x 0.866" L (10.00mm x 9.00mm x 22.00mm) | - | 2 | - |
|
|
TUW5JR20ERES 0.2 OHM 5% 5W AXIAL |
4,747 |
|
数据手册 |
TUW | Bulk | Active | 200 mOhms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | - | Axial | 0.394" x 0.354" Rectangular x 0.866" L (10.00mm x 9.00mm x 22.00mm) | - | 2 | - |
|

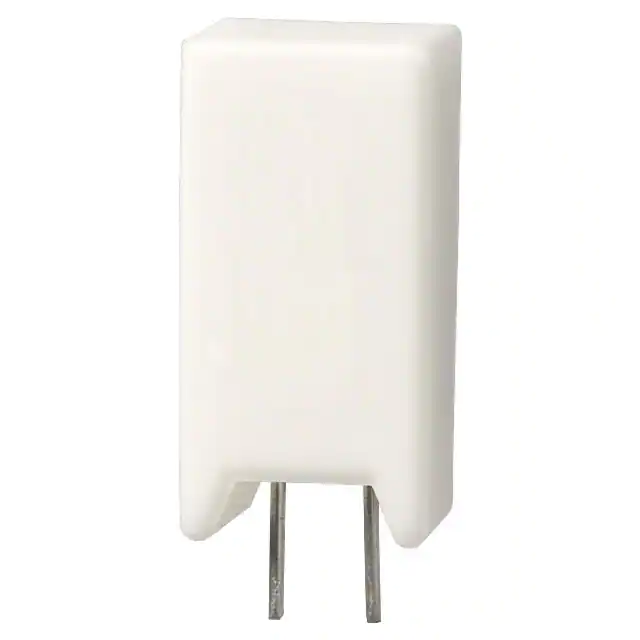

TWM10J2K0ERES 2K OHM 5% 10W RADIAL |
2,429 |
|
数据手册 |
TWM | Bulk | Active | 2 kOhms | ±5% | 10W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 2.008" (51.00mm) | 2 | - |
|

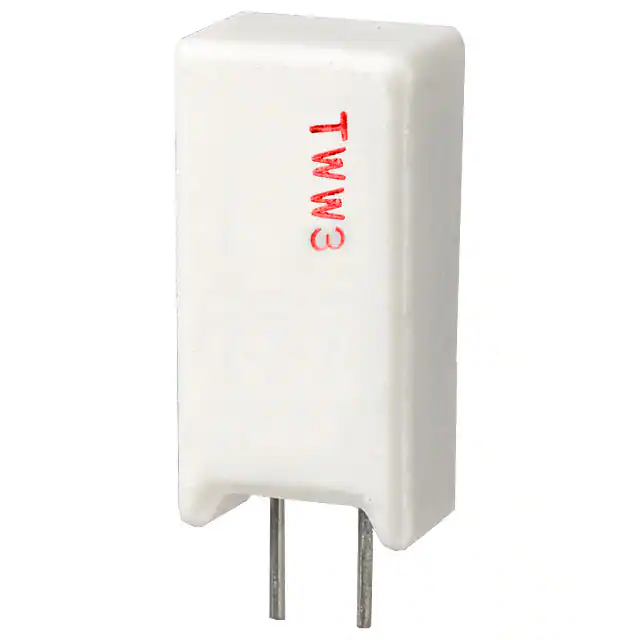

TWW10J39RERES 39 OHM 5% 10W RADIAL |
4,903 |
|
数据手册 |
TWW | Bulk | Active | 39 Ohms | ±5% | 10W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 2.008" (51.00mm) | 2 | - |
|
WHA100FERES 100 OHM 1% 1/2W AXIAL |
4,230 |
|
数据手册 |
WH | Bulk | Active | 100 Ohms | ±1% | 0.5W, 1/2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
|
WHA15RFERES 15 OHM 1% 1/2W AXIAL |
1,439 |
|
数据手册 |
WH | Bulk | Active | 15 Ohms | ±1% | 0.5W, 1/2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
|
WHA1K0FERES 1K OHM 1% 1/2W AXIAL |
1,508 |
|
数据手册 |
WH | Bulk | Active | 1 kOhms | ±1% | 0.5W, 1/2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
|
WHA250FERES 250 OHM 1% 1/2W AXIAL |
2,224 |
|
数据手册 |
WH | Bulk | Discontinued at Digi-Key | 250 Ohms | ±1% | 0.5W, 1/2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
