通孔式电阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OF561JERES 560 OHM 5% 1/2W AXIAL |
3,016 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 560 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OF562JERES 5.6K OHM 5% 1/2W AXIAL |
4,237 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 5.6 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OF564JERES 560K OHM 5% 1/2W AXIAL |
3,139 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 560 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OF620JERES 62 OHM 5% 1/2W AXIAL |
1,985 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 62 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OF621JERES 620 OHM 5% 1/2W AXIAL |
3,509 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 620 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OF683JERES 68K OHM 5% 1/2W AXIAL |
2,592 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 68 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OF684JERES 680K OHM 5% 1/2W AXIAL |
1,430 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 680 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OF685JERES 6.8M OHM 5% 1/2W AXIAL |
2,378 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 6.8 MOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OF750JERES 75 OHM 5% 1/2W AXIAL |
2,599 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 75 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|

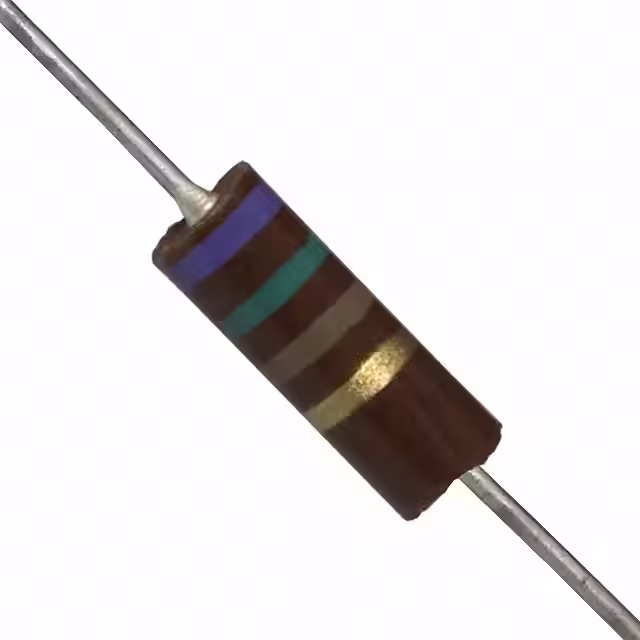

OF751JERES 750 OHM 5% 1/2W AXIAL |
4,861 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 750 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OF755JERES 7.5M OHM 5% 1/2W AXIAL |
3,508 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 7.5 MOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OF820JERES 82 OHM 5% 1/2W AXIAL |
1,959 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 82 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|

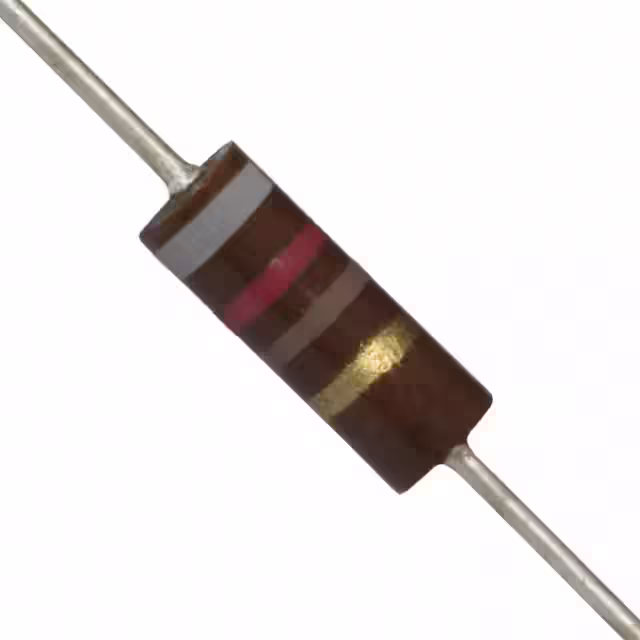

OF821JERES 820 OHM 5% 1/2W AXIAL |
2,271 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 820 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OF822JERES 8.2K OHM 5% 1/2W AXIAL |
4,479 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 8.2 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
OF823JERES 82K OHM 5% 1/2W AXIAL |
2,582 |
|
数据手册 |
Little Demon® OF | Strip | Obsolete | 82 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
SM104032003FERES 200K OHM 1% 1.5W RADIAL |
2,474 |
|
数据手册 |
Slim-Mox | Bulk | Active | 200 kOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
SM108033005FERES 30M OHM 1% 2.5W RADIAL |
3,623 |
|
数据手册 |
Slim-Mox | Bulk | Active | 30 MOhms | ±1% | 2.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 2.080" L x 0.100" W (52.83mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
SM204032505JERES 25M OHM 5% 2W RADIAL |
1,694 |
|
数据手册 |
Slim-Mox | Bulk | Active | 25 MOhms | ±5% | 2W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.590" (14.99mm) | 2 | - |
|
|
SM204037503JERES 750K OHM 5% 2W RADIAL |
4,603 |
|
数据手册 |
Slim-Mox | Bulk | Active | 750 kOhms | ±5% | 2W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.590" (14.99mm) | 2 | - |
|
TA025PW39R0JERES 39 OHM 5% 25W POWERCHIP |
4,932 |
|
数据手册 |
Power Chip® TA | Bulk | Active | 39 Ohms | ±5% | 25W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 2.220" L x 0.240" W (56.39mm x 6.10mm) | 1.189" (30.21mm) | 4 | - |
