通孔式电阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

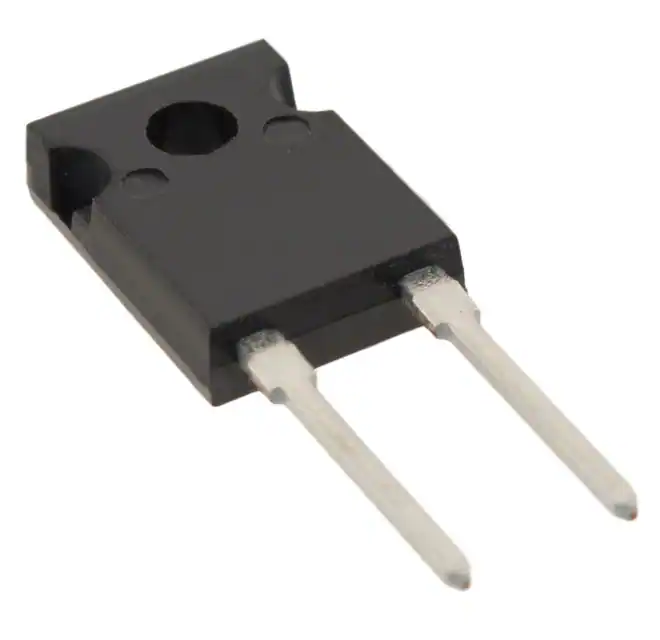

MP925-5.00K-1%RES 5K OHM 1% 25W TO220 |
1,205 |
|
数据手册 |
Kool-Pak®MP900 | Tube | Active | 5 kOhms | ±1% | 25W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
MP930-200-1%RES 200 OHM 1% 30W TO220 |
978 |
|
数据手册 |
Kool-Pak®MP900 | Tube | Active | 200 Ohms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
MP930-1.00K-1%RES 1K OHM 1% 30W TO220 |
916 |
|
数据手册 |
Kool-Pak®MP900 | Tube | Active | 1 kOhms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
MP930-50.0-1%RES 50 OHM 1% 30W TO220 |
700 |
|
数据手册 |
Kool-Pak®MP900 | Tube | Active | 50 Ohms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
PWR221T-30-50R0FRES 50 OHM 1% 30W TO220-2 |
390 |
|
数据手册 |
PWR221T-30 | Tube | Active | 50 Ohms | ±1% | 30W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -50°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.760" (19.30mm) | 2 | - |
|
SM108032004FERES 2M OHM 1% 2.5W RADIAL |
3,945 |
|
数据手册 |
Slim-Mox | Bulk | Active | 2 MOhms | ±1% | 2.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 2.080" L x 0.100" W (52.83mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
PWR220T-20-R100FRES 0.1 OHM 1% 20W TO220-2 |
472 |
|
数据手册 |
PWR220T-20 | Tube | Active | 100 mOhms | ±1% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.398" L x 0.157" W (10.10mm x 4.00mm) | 0.575" (14.60mm) | 2 | - |
|

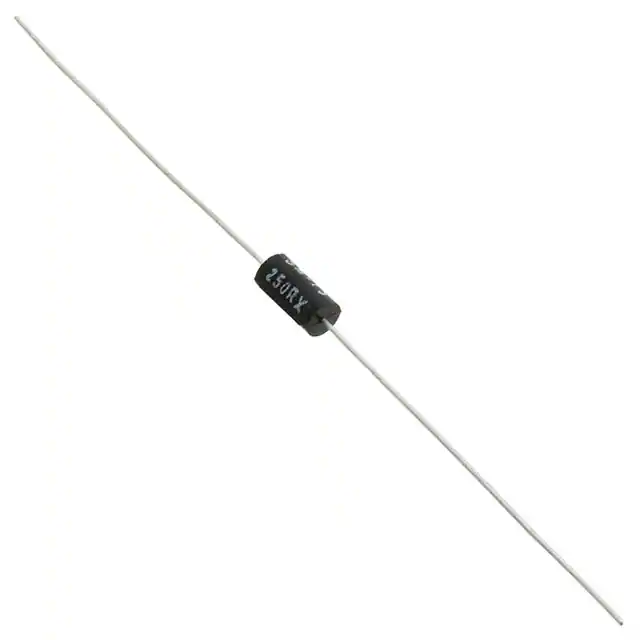

SM15-250RXRES 250 OHM 0.01% 0.175W AXIAL |
4,666 |
|
数据手册 |
100/SM/PC Precision | Bulk | Active | 250 Ohms | ±0.01% | 0.175W | Wirewound | Flame Proof, Moisture Resistant, Non-Inductive, Safety | ±10ppm/°C | -55°C ~ 145°C | - | 0.185" Dia x 0.374" L (4.70mm x 9.50mm) | - | 2 | - |
|
PF2203-0R2F1RES 0.2 OHM 1% 35W TO220 |
6,073 |
|
数据手册 |
PF2203 | Tube | Active | 200 mOhms | ±1% | 35W | Thin Film | Current Sense, Flame Proof, Pulse Withstanding, Safety | ±100ppm/°C | -55°C ~ 155°C | TO-220 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.591" (15.00mm) | 2 | - |
|
|
MP915-0.33-1%RES 0.33 OHM 1% 15W TO126 |
870 |
|
数据手册 |
Kool-Pak®MP900 | Tube | Active | 330 mOhms | ±1% | 15W | Thick Film | Moisture Resistant, Non-Inductive | 0/ +200ppm/°C | -55°C ~ 150°C | TO-126 | 0.320" L x 0.110" W (8.12mm x 2.79mm) | 0.450" (11.44mm) | 2 | - |
|
PWR221T-30-5R00FRES 5 OHM 1% 30W TO220-2 |
1,170 |
|
数据手册 |
PWR221T-30 | Tube | Active | 5 Ohms | ±1% | 30W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -50°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.760" (19.30mm) | 2 | - |
|

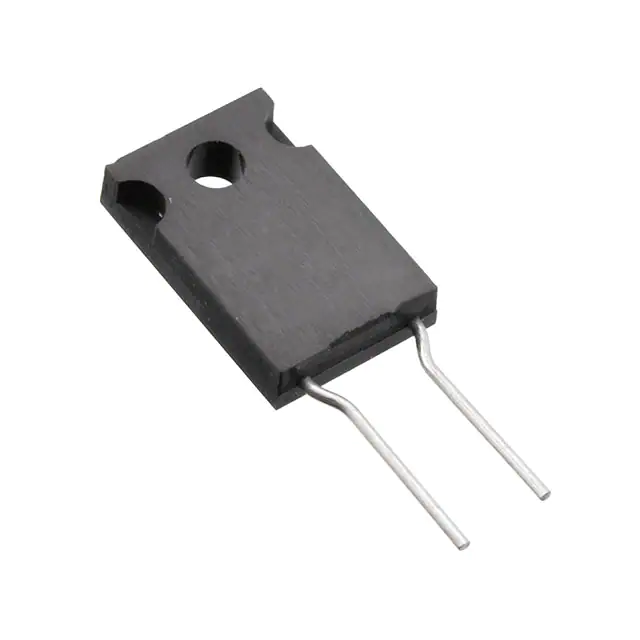

PWR221T-50-5R00FRES 5 OHM 1% 50W TO220 |
369 |
|
数据手册 |
PWR221T-50 | Tube | Active | 5 Ohms | ±1% | 50W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.760" (19.30mm) | 2 | - |
|
|
MP930-1.00-1%RES 1 OHM 1% 30W TO220 |
3,484 |
|
数据手册 |
Kool-Pak®MP900 | Tube | Active | 1 Ohms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
MP930-5.00-1%RES 5 OHM 1% 30W TO220 |
2,633 |
|
数据手册 |
Kool-Pak®MP900 | Tube | Active | 5 Ohms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
MP930-2.00-1%RES 2 OHM 1% 30W TO220 |
1,941 |
|
数据手册 |
Kool-Pak®MP900 | Tube | Active | 2 Ohms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
MP930-330-1%RES 330 OHM 1% 30W TO220 |
462 |
|
数据手册 |
Kool-Pak®MP900 | Tube | Active | 330 Ohms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
MP930-15.0-1%RES 15 OHM 1% 30W TO220 |
5,658 |
|
数据手册 |
Kool-Pak®MP900 | Tube | Active | 15 Ohms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
MP930-27.0-1%RES 27 OHM 1% 30W TO220 |
3,802 |
|
数据手册 |
Kool-Pak®MP900 | Tube | Active | 27 Ohms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
MP930-33.0-1%RES 33 OHM 1% 30W TO220 |
1,248 |
|
数据手册 |
Kool-Pak®MP900 | Tube | Active | 33 Ohms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
|
MP930-12.0-1%RES 12 OHM 1% 30W TO220 |
772 |
|
数据手册 |
Kool-Pak®MP900 | Tube | Active | 12 Ohms | ±1% | 30W | Thick Film | Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
