热电组件、珀尔帖组件
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 热传递类型 | 功率 - 冷却 | 电流 | 电压 | 风扇位置 | 功率 - 输入 | 工作温度 | 重量 | 尺寸 - 总体 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HET200VCTHERMOELECT ASSY AIR-AIR 200W Delta Electronics |
2,992 |
|
数据手册 |
HET200VC | Box | Active | Air to Air | 200 W | 12 A | 24 V | Cold Side / Warm Side | - | -40°C ~ 55°C | 13 lbs (5.9 kg) | 400mm L x 169mm W x 181mm H |
|

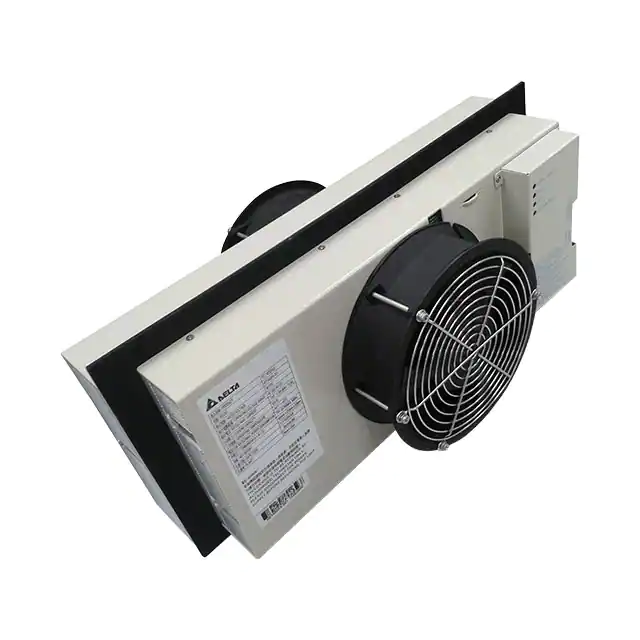

HET400PATHERMOELECT ASSY AIR-AIR 400W Delta Electronics |
3,665 |
|
数据手册 |
HET400PA | Box | Active | Air to Air | 400 W | 13.5 A | 48 V | Cold Side / Warm Side | - | -40°C ~ 55°C | 24 lbs (10.9 kg) | 450mm L x 228mm W x 210mm H |
|
HET200PBTHERMOELECT ASSY AIR-AIR 200W Delta Electronics |
2,536 |
|
数据手册 |
HET200PB | Box | Active | Air to Air | 200 W | 6.7 A | 48 V | Cold Side / Warm Side | - | -40°C ~ 55°C | 20 lbs (9.1 kg) | 400mm L x 208mm W x 180mm H |
|
HET200VBTHERMOELECT ASSY AIR-AIR 200W Delta Electronics |
1,881 |
|
数据手册 |
HET200VB | Box | Active | Air to Air | 200 W | 12.2 A | 24 V | Cold Side / Warm Side | - | -40°C ~ 55°C | 20 lbs (9.1 kg) | 400mm L x 208mm W x 180mm H |
|

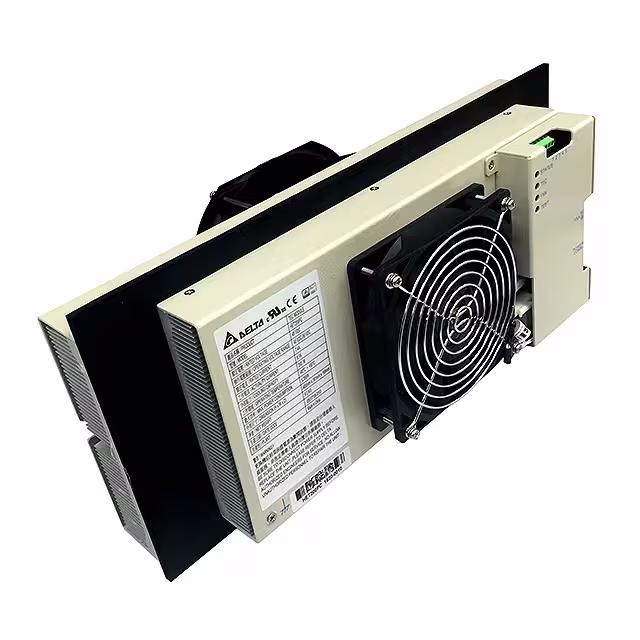

HET200PCTHERMOELECT ASSY AIR-AIR 200W Delta Electronics |
4,237 |
|
数据手册 |
HET200PC | Box | Active | Air to Air | 200 W | 6.1 A | 48 V | Cold Side / Warm Side | - | -40°C ~ 55°C | 13 lbs (5.9 kg) | 400mm L x 169mm W x 181mm H |
|
HET200VC-A0124VDC SLIM TYPE THERMOELECTRIC C Delta Electronics |
4,447 |
|
数据手册 |
HET200VC | Bulk | Active | Air to Air | 200 W | 12 A | 24 V | Cold Side / Warm Side | 384 W | -40°C ~ 55°C | - | 400mm L x 181mm W x 169mm H |
|
|
HET200VB-A0124VDC THERMOELECTRIC COOLING 200 Delta Electronics |
1,188 |
|
数据手册 |
HET200VB | Bulk | Active | Air to Air | 200 W | 12.2 A | 24 V | Cold Side / Warm Side | 384 W | -40°C ~ 65°C | - | 400mm L x 180mm W x 209mm H |
|
|
HET200PB-A0148VDC THERMOELECTRIC COOLING 200 Delta Electronics |
3,597 |
|
数据手册 |
HET200PB | Bulk | Active | Air to Air | 200 W | 5.9 A | 48 V | Cold Side / Warm Side | 384 W | -40°C ~ 55°C | - | 400mm L x 180mm W x 208mm H |
|
|
HET400PA-A0148VDC THERMOELECTRIC COOLING 400 Delta Electronics |
1,423 |
|
数据手册 |
HET400PA | Bulk | Active | Air to Air | 400 W | 11.7 A | 48 V | Cold Side / Warm Side | 778 W | -40°C ~ 55°C | - | 450mm L x 210mm W x 228mm H |
|
HET200PC-BTHERMOELECT ASSY AIR-AIR 200W Delta Electronics |
4,610 |
|
数据手册 |
HET200PC | Box | Obsolete | Air to Air | 200 W | 5.8 A | 48 V | Cold Side / Warm Side | - | -40°C ~ 55°C | 12 lbs (5.4 kg) | 400mm L x 143mm W x 181mm H |
