液体冷却和加热
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 产品类型 | 功率 - 冷却 | 电流 | 电压 | 流量 | 功率输入 | 热阻 @ GPM | 液体容量 | 工作温度 | 连接类型 | 重量 | 尺寸 - 总体 | 额定值 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1421.70RECIRCULATING CHILLERS |
2,153 |
|
数据手册 |
WLK | Bulk | Active | Active, Recirculating Chiller | 2000 W | - | - | - | - | - | - | 5°C ~ 30°C | - | - | - | - |
|
385912-001NRC5000-A1-20-SC1 |
2,583 |
|
数据手册 |
Nextreme™ | Box | Obsolete | Active, Recirculating Chiller | 5000 W | - | 200 ~ 240V | 3.96GPM (15.0LPM) | - | - | 5000ML (169.1 oz) | 15°C ~ 40°C | - | 220 lbs (99.8 kg) | 24.90" L x 23.00" W x 31.90" H (632.0mm x 583.0mm x 809.0mm) | CE, UL |
|
385912-015NRC5000-A1-20-SC2 |
1,455 |
|
数据手册 |
Nextreme™ | Box | Obsolete | Active, Recirculating Chiller | 5000 W | - | 200 ~ 240V | 3.96GPM (15.0LPM) | - | - | 5000ML (169.1 oz) | 15°C ~ 40°C | - | 220 lbs (99.8 kg) | 24.90" L x 23.00" W x 31.90" H (632.0mm x 583.0mm x 809.0mm) | CE, UL |
|
9661012.13FL1201 CHILLER, 1.2KW, 115V |
2,528 |
|
数据手册 |
FL | Bulk | Active | Active, Recirculating Chiller | 1200 W | - | 115 ~ 230VAC | 6.08GPM (23.0LPM) | - | - | - | -20°C ~ 40°C | - | 172 lbs (78.0 kg) | 29.90" L x 19.70" W x 25.20" H (759.5mm x 500.4mm x 640.1mm) | - |
|

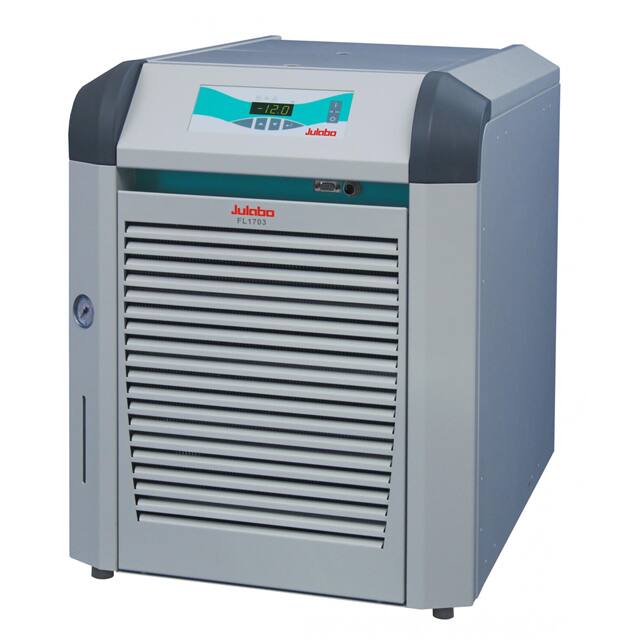

9663017.13FL1703 CHILLER, 1.7KW, 230V |
3,274 |
|
数据手册 |
FL | Bulk | Active | Active, Recirculating Chiller | 1700 W | 11 A | 230VAC | 10.57GPM (40.0LPM) | - | - | - | -20°C ~ 40°C | - | 201 lbs (91.2 kg) | 29.90" L x 19.70" W x 25.20" H (759.5mm x 500.4mm x 640.1mm) | - |
|
9661017.2FL1701 CHILLER, 1.7KW, 115V |
3,787 |
|
数据手册 |
- | Bulk | Active | Active, Recirculating Chiller | 1700 W | - | 115 ~ 230VAC | 6.08GPM (23.0LPM) | - | - | - | -20°C ~ 40°C | - | 172 lbs (78.0 kg) | 29.90" L x 19.70" W x 25.20" H (759.5mm x 500.4mm x 640.1mm) | - |
|
ATS-TECHILL-3500ATHERMOELECTRIC (TEC) BASED CHILL |
4,114 |
|
数据手册 |
TECHILL | Box | Obsolete | Active, Recirculating Chiller/Heater | 3 kW | 20 A | 180 ~ 264VAC | 1GPM (3.79LPM) | - | - | - | 5°C ~ 50°C | - | - | 15.70" L x 28.40" W x 26.60" H (398.8mm x 721.4mm x 675.6mm) | - |
|

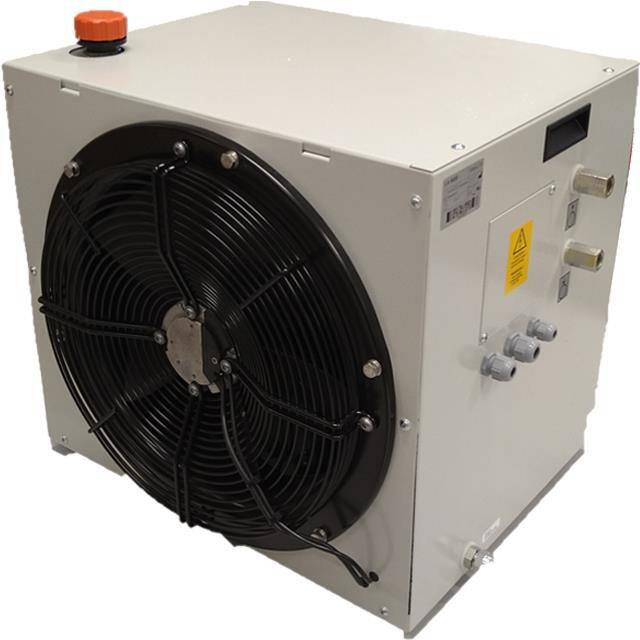

387005598LA5000, LIQUID TO AIR HEAT EXCHA |
4,210 |
|
数据手册 |
WL | Box | Obsolete | Active, Heat Exchanger | 5000 W | 3.3 A | 200 ~ 240VAC | 2.2GPM (8.3LPM) | - | - | 6200ML (209.6 oz) | 5°C ~ 40°C | 3/8" Quick Connect | - | 22.24" L x 18.43" W x 20.83" H (565.0mm x 468.0mm x 529.0mm) | - |
|
NSC0330-110/14,000 BTU/hr Fluid Chiller |
3,709 |
|
数据手册 |
- | Bulk | Active | Active, Recirculating Chiller | 1172 W | 9.4 A | 120VAC | - | - | - | - | -4°C ~ 18°C | - | - | 18.00" L x 16.25" W x 22.50" H (457.2mm x 412.8mm x 571.5mm) | - |
|
NSC0500-110/16,000 BTU/hr Fluid Chiller |
4,915 |
|
数据手册 |
- | Bulk | Active | Active, Recirculating Chiller | 1758 W | - | 110VAC | - | - | - | - | 5.5°C ~ 26.7°C | - | - | 28.25" L x 22.50" W x 32.50" H (717.6mm x 571.5mm x 825.5mm) | - |
|
|
ES0505G23-D9HEAT EXCHANGER |
4,447 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6210G1SB-G9HEAT EXCHANGER |
2,490 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4120G10SB-D9HEAT EXCHANGER |
2,112 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AS06-08G01SB-F9HEAT EXCHANGER |
2,089 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ES0707G23-F9HEAT EXCHANGER |
3,110 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AS08-10G01SB-M9HEAT EXCHANGER |
4,284 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AS04-05G01SB-D9HEAT EXCHANGER |
3,090 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6320G3SB-N9HEAT EXCHANGER |
1,599 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
416601U00000,MOD 15"-G416601U00000,MOD 15"-G |
1,724 |
|
数据手册 |
Hi-Contact™ | Bulk | Active | Passive, Cold Plate | - | - | - | - | - | 0.020°C/W @ 1.0 GPM | - | - | - | - | 12.01" L x 5.00" W x 0.59" H (305.0mm x 127.0mm x 15.0mm) | - |
|
|
6110G1SB-E9HEAT EXCHANGER |
2,826 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
