散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
901-19-1-28-2-B-0HEAT SINK ELLIP FIN 19X19MM CLIP |
192 |
|
数据手册 |
901 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 1.087" (27.60mm) | - | 4.91°C/W @ 200 LFM | 10.30°C/W | Aluminum | Black Anodized |
|
|
B-375-120-62GHEAT SINK |
4,942 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

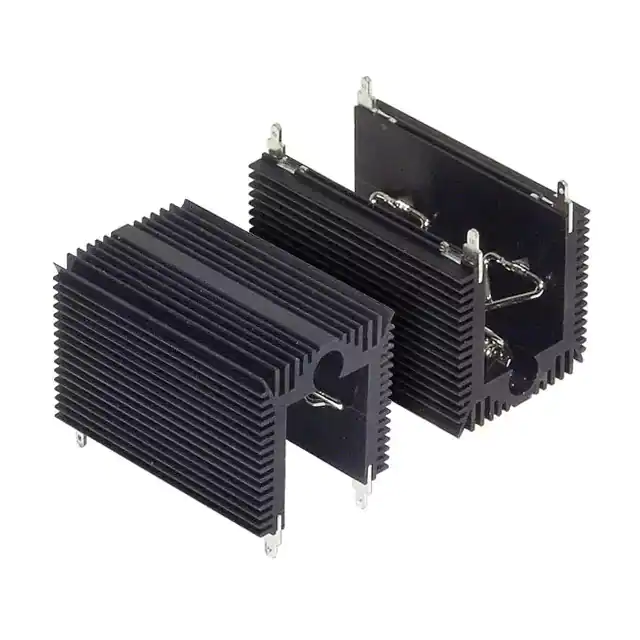

MTN-264-55HEATSINK TO-247/TO-264 W/CLIP |
1,460 |
|
数据手册 |
Mountain | Box | Active | Top Mount | TO-247, TO-264 | Clip | Rectangular, Fins | 1.060" (26.92mm) | 1.740" (44.20mm) | - | 1.555" (39.50mm) | - | - | - | Aluminum | Black Anodized |
|

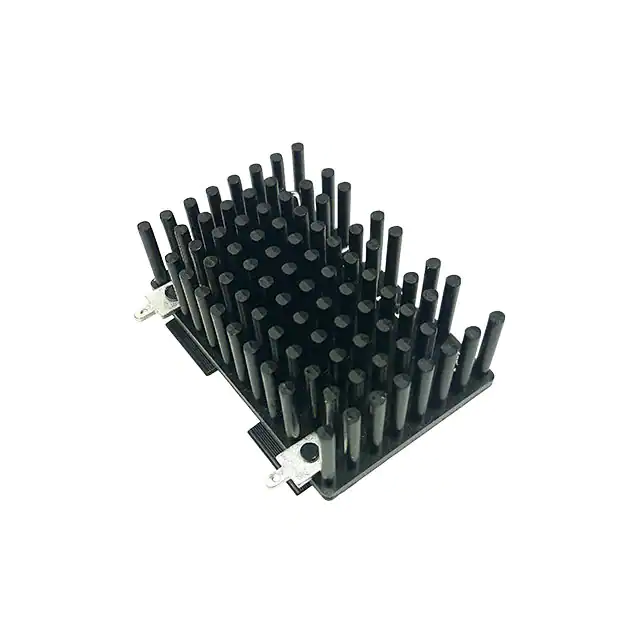

PA-T22-38EDUAL PIN FIN HEATSINK 2 CLIPS |
971 |
|
数据手册 |
P | Box | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | 2 Clips and PC Pin | Rectangular, Pin Fins | 2.170" (55.12mm) | 1.240" (31.50mm) | - | 1.520" (38.61mm) | - | - | 3.13°C/W | Aluminum | Black Anodized |
|

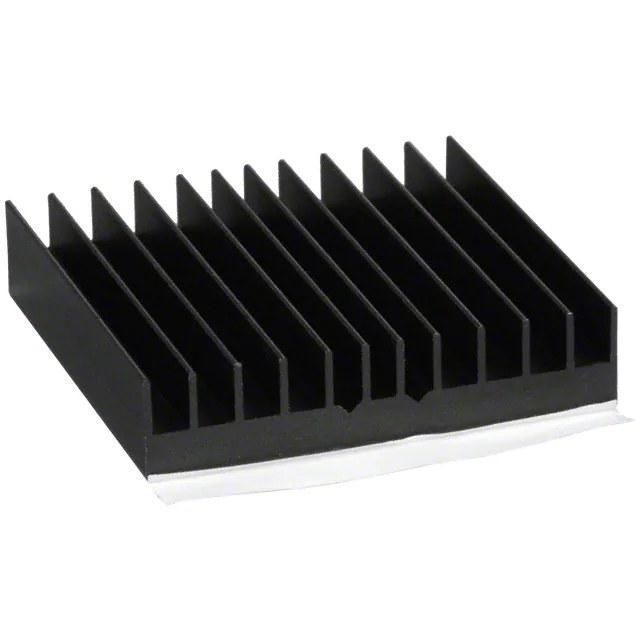

ATS-54425D-C1-R0HEAT SINK 42.5 X 42.5 X 9.5MM |
120 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.374" (9.50mm) | - | 8.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

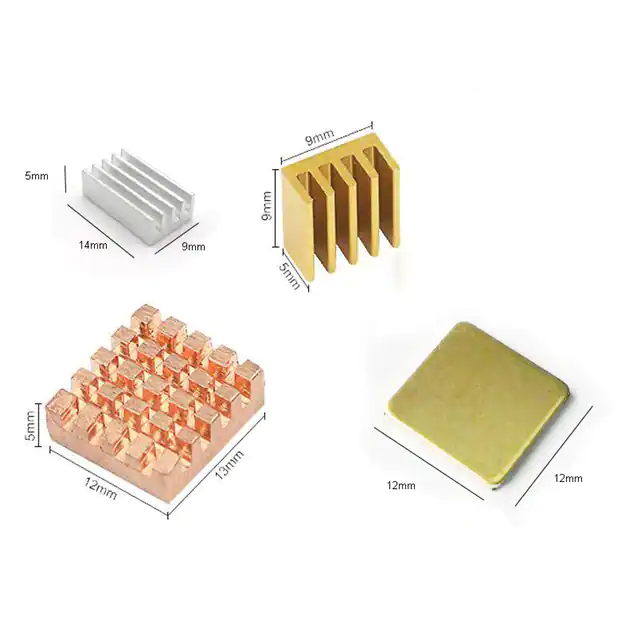

RAS-HS-CHEATSINK RASPBERRY PI ALUM/COP |
1,492 |
|
数据手册 |
- | Retail Package | Active | Top Mount Kit | Raspberry Pi 2B, 3B, 3B+, 4B, B+ | Thermal Tape, Adhesive (Included) | Rectangular, Fins; Square, Fins | - | - | - | - | - | - | - | Aluminum, Copper | - |
|
MTN-264-27HEATSINK TO-247/TO-264 W/CLIP |
3,978 |
|
数据手册 |
Mountain | Box | Active | Top Mount | TO-247, TO-264 | Clip | Rectangular, Fins | 1.060" (26.92mm) | 1.740" (44.20mm) | - | 1.555" (39.50mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-12A-32-C1-R0HEATSINK 57.9X36.83X11.43MM |
283 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.450" (11.43mm) | - | 21.45°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

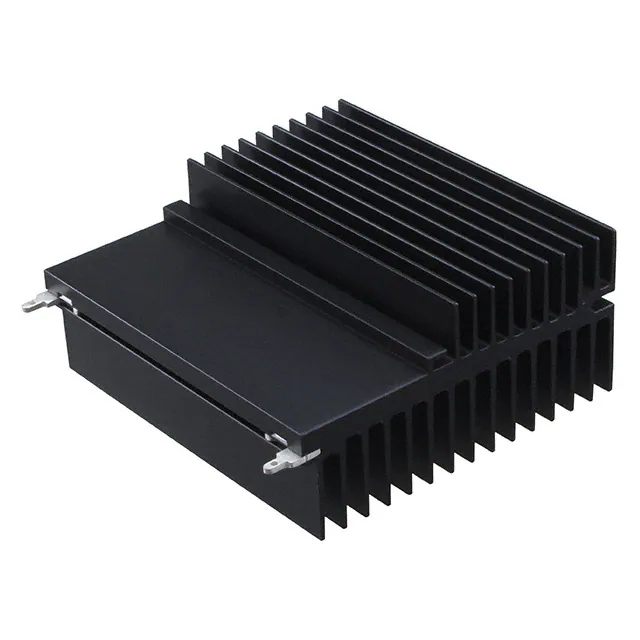

OMNI-UNI-34-75HEATSINK TO-247 TO-264 TO-220 |
672 |
|
数据手册 |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 2.953" (75.00mm) | 1.339" (34.00mm) | - | 2.953" (75.00mm) | - | - | - | Aluminum | Black Anodized |
|
OMNI-220-18-50-2CHEATSINK 18X50MM 2-CLIP TO-220 |
978 |
|
数据手册 |
OmniKlip™ | Tray | Active | Board Level, Vertical | TO-220 | Clip, Solder Foot | Rectangular, Fins | 1.969" (50.00mm) | 0.710" (18.03mm) | - | 1.500" (38.10mm) | - | - | - | Aluminum | Black Anodized |
|
|
321127B00000GHEATSINK |
400 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

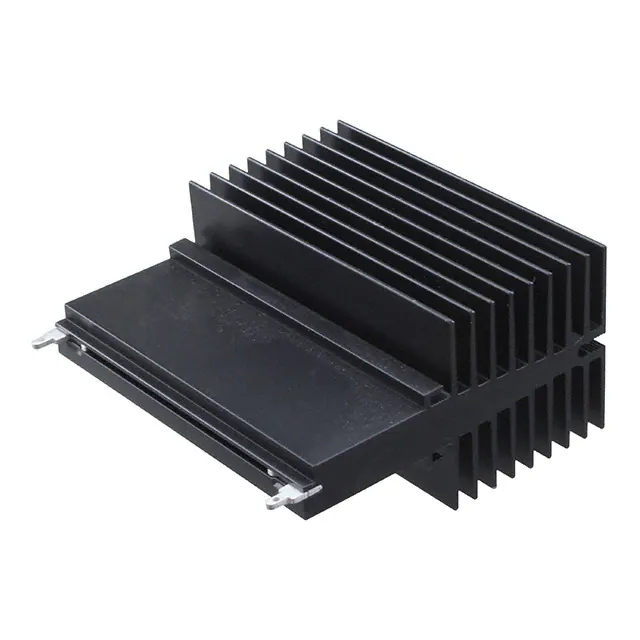

OMNI-UNI-40-75-DHEATSINK TO-247 TO-264 TO-220 |
884 |
|
数据手册 |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 2.953" (75.00mm) | 1.575" (40.00mm) | - | 2.953" (75.00mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-52425B-C1-R0HEAT SINK 42.5 X 42.5 X 7.5MM |
208 |
|
数据手册 |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.295" (7.50mm) | - | 4.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

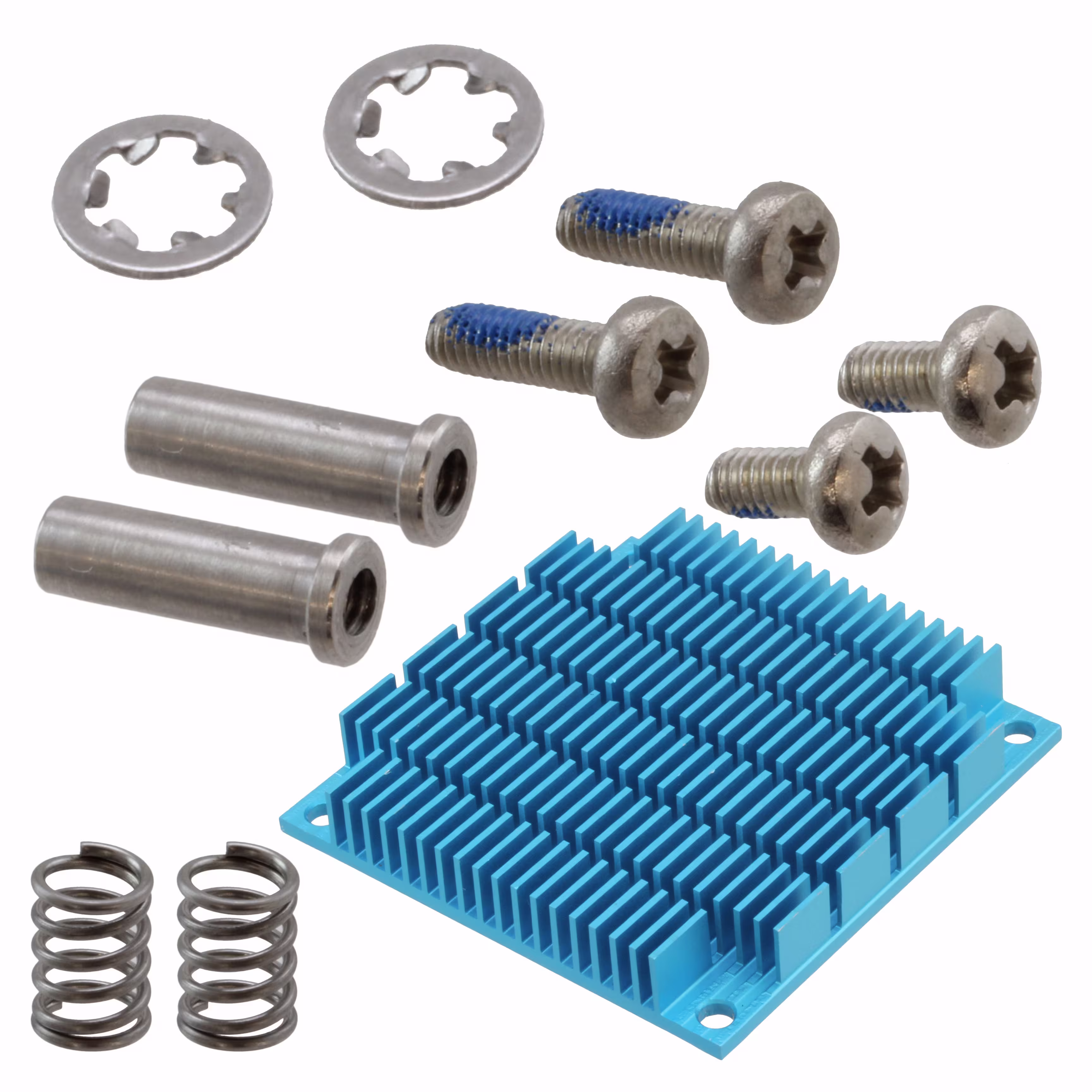

ATS-H1-129-C2-R0HEATSINK 60X60X10MM XCUT T766 |
294 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 8.65°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

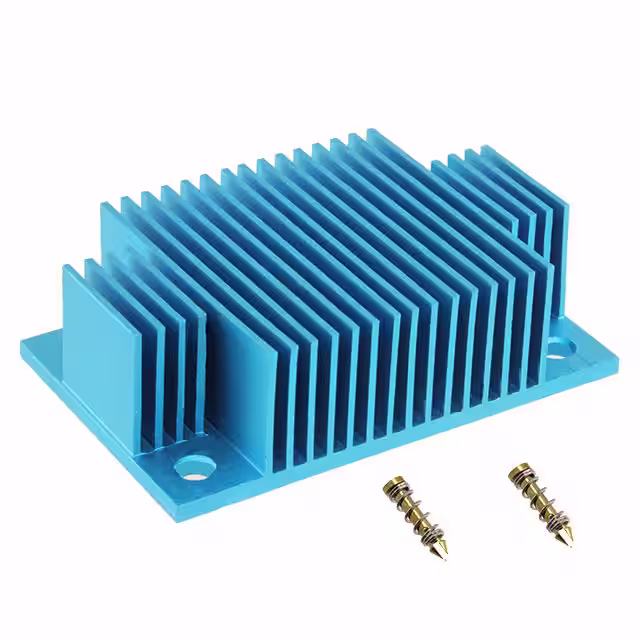

ATS-06F-37-C2-R0HEATSINK 36.83X57.6X17.78MM T766 |
279 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.700" (17.78mm) | - | 9.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

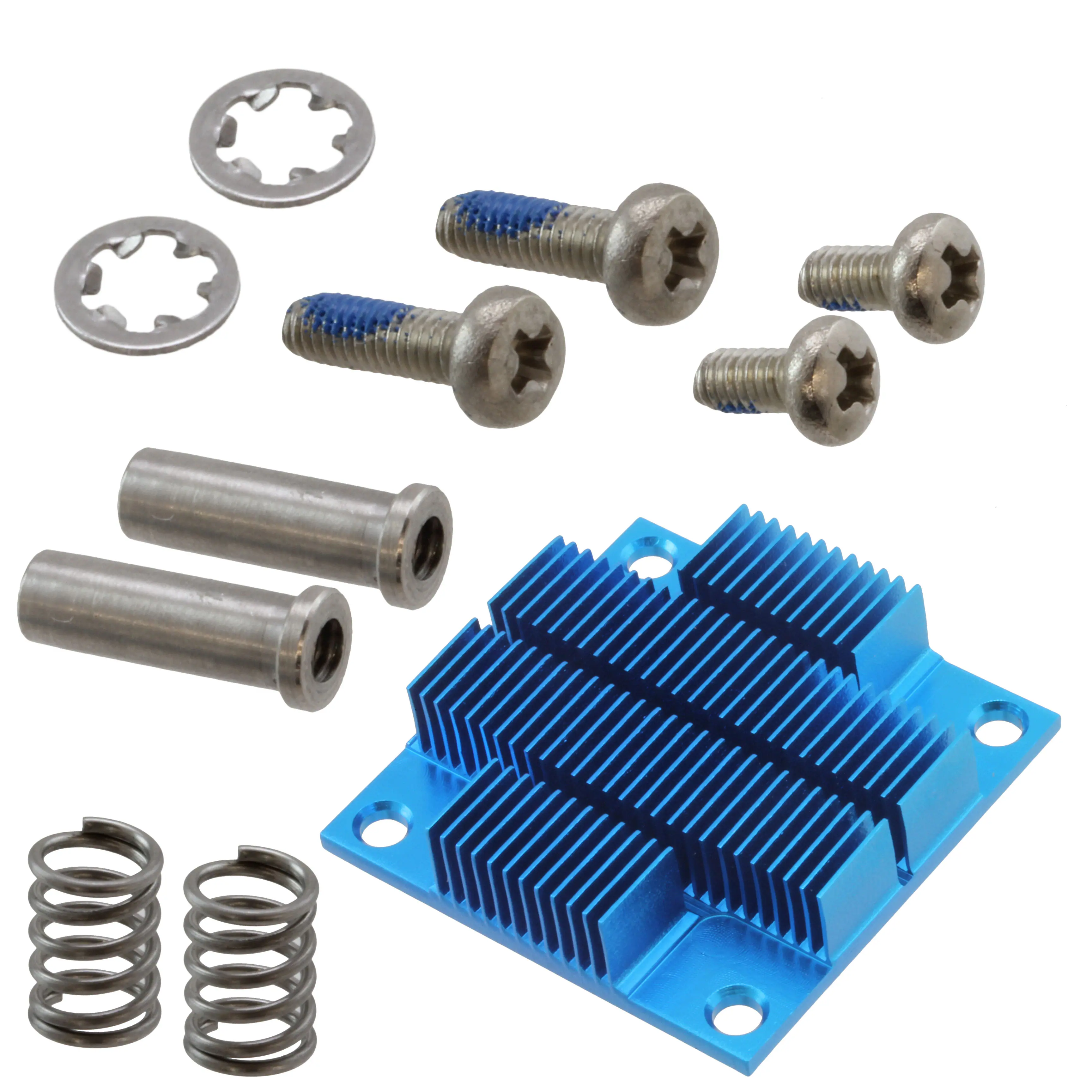

ATS-H1-175-C2-R0HEATSINK 35X35X10MM R-TAB T766 |
298 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 13.52°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
RPIHS-03RASPBERRY PI COPPER HEAT SINK |
384 |
|
数据手册 |
- | Retail Package | Active | Heat Spreader Kit, Top Mount | Raspberry Pi | Thermal Tape, Adhesive (Included) | Square, Fins; Square | - | - | - | - | - | - | - | Copper | - |
|

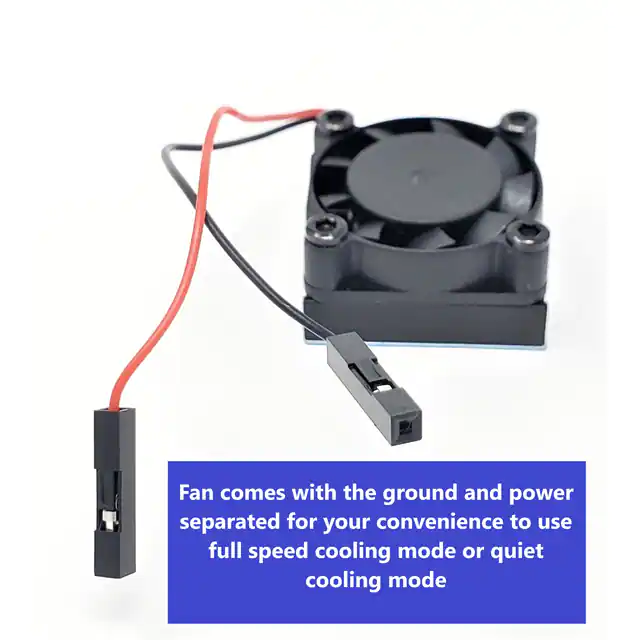

RAS-FANHS10COOLING FAN/HS - RASPBERRY PI |
952 |
|
数据手册 |
- | Retail Package | Active | Top Mount | Raspberry Pi 2B, 3B, 3B+, 4B, B+ | Thermal Tape, Adhesive (Included) | Rectangular | 1.969" (50.00mm) | 1.181" (30.00mm) | - | 0.295" (7.50mm) | - | - | - | Aluminum, Plastic | - |
|

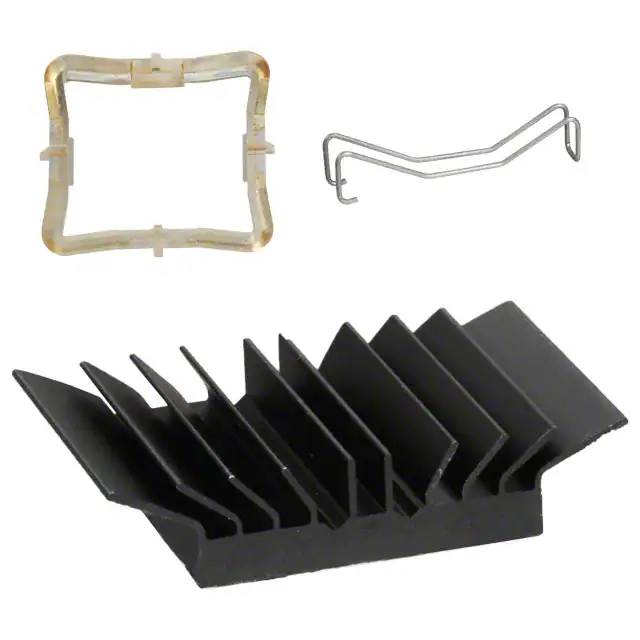

ATS-51290D-C1-R0HEAT SINK 29MM X 29MM X 9.5MM |
126 |
|
数据手册 |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.374" (9.50mm) | - | 7.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

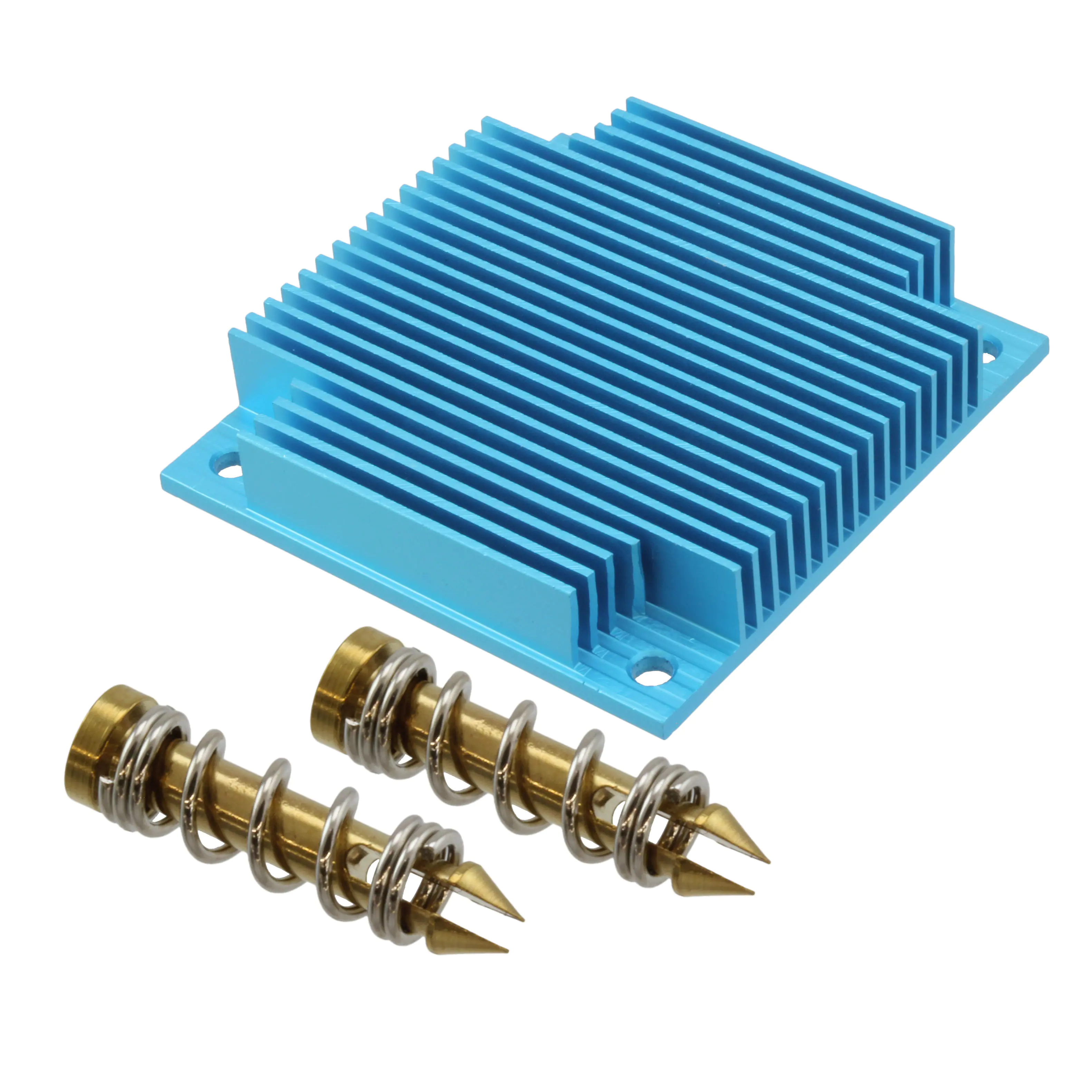

ATS-09F-40-C2-R0HEATSINK 57.9X60.96X11.43MM T766 |
300 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.450" (11.43mm) | - | 14.56°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
