散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

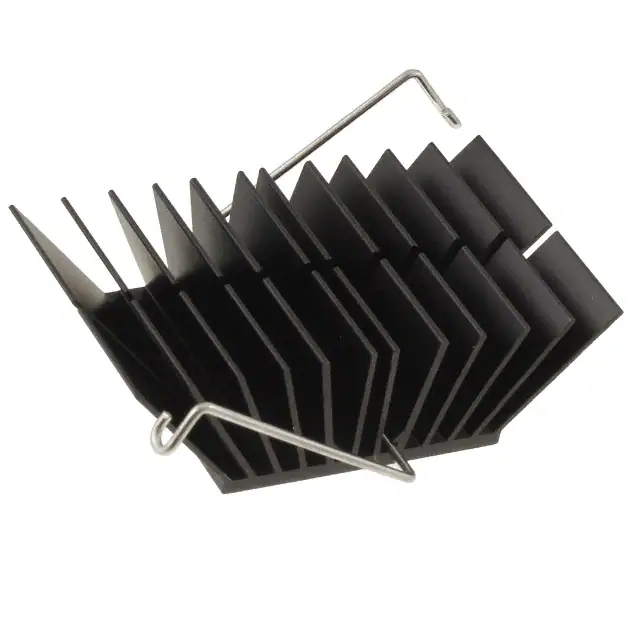

WAVE-366-175ANCHOR HEATSINK 36.6X36.6X17.5MM |
142 |
|
数据手册 |
Wave 3x | Bulk | Active | Board Level | BGA | Clip | Square, Angled Fins | 1.441" (36.60mm) | 1.441" (36.60mm) | - | 0.689" (17.50mm) | - | 2.55°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
|
CS9462710BM27X27X10MM, T412 |
663 |
|
数据手册 |
CS94 | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.394" (10.00mm) | - | 5.24°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX035035010-175-C1-R0HEATSINK 35X35X10MM R-TAB CP |
246 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 13.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
M47098B011000GMAX CLIP HEATSINK |
1,096 |
|
数据手册 |
Max Clip System™ | Bulk | Active | Board Level, Vertical | TO-126, TO-220, TO-247 | Clip and PC Pin | Rectangular, Angled Fins | 0.980" (24.89mm) | 0.764" (19.40mm) | - | 1.240" (31.50mm) | - | - | - | Aluminum | Black Anodized |
|

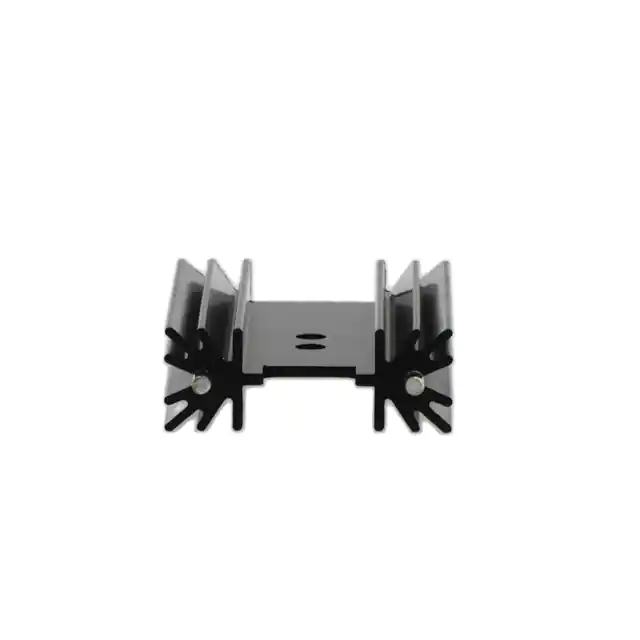

EA-T220-51EHEATSINK FOR TO-220 BLACK |
1,819 |
|
数据手册 |
E | Box | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.378" (35.00mm) | - | 0.500" (12.70mm) | 5.0W @ 40°C | 4.00°C/W @ 600 LFM | 7.50°C/W | Aluminum | Black Anodized |
|
|
CS9462720BM27X27X20MM, T412 |
611 |
|
数据手册 |
CS94 | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.787" (20.00mm) | - | 3.31°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
SAR110ASX60MMEXTRUDED HEATSINK 78X60MM |
480 |
|
数据手册 |
110AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 2.362" (60.00mm) | 3.071" (78.00mm) | - | 0.787" (20.00mm) | - | - | - | Aluminum | Black Anodized |
|
HBH24031-12/1.423.8X23.5X12.4MM |
239 |
|
数据手册 |
HBH | Tray | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.945" (24.00mm) | 0.945" (24.00mm) | - | 0.433" (11.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH19001-20W/2.4AL HEAT SINK 19X19X20MM |
542 |
|
数据手册 |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.295" (7.50mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH19001-15W/2.6AL HEAT SINK 19X19X15MM |
222 |
|
数据手册 |
MBH | Tray | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.591" (15.01mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH17001-20W/1.7AL HEAT SINK 17X17X20MM |
200 |
|
数据手册 |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.709" (18.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH24002-15P/2.6AL HEAT SINK 24X24X15MM WITH PIN |
180 |
|
数据手册 |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Pin Fins | 0.945" (24.00mm) | 0.945" (24.00mm) | - | 0.472" (12.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH25001-10LF/2.0AL HEAT SINK 25X25X10MM WITH LIN |
180 |
|
数据手册 |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.295" (7.50mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH25001-12W/2.6AL HEAT SINK 25X25X12MM |
176 |
|
数据手册 |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.472" (12.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
577202B04000GHEATSINK TO-220 .500" COMPACT |
683 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.500" (12.70mm) | 1.5W @ 40°C | 10.00°C/W @ 200 LFM | 24.40°C/W | Aluminum | Black Anodized |
|
|
CS9462310BM23X23X10MM, T412 |
108 |
|
数据手册 |
CS94 | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.394" (10.00mm) | - | 7.42°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
667-20ABPPEHEATSINK TO-220 W/S/O PINS BLK |
269 |
|
数据手册 |
667 | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.500" (12.70mm) | 1.375" (34.93mm) | - | 2.000" (50.80mm) | 6.0W @ 58°C | 4.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
MBH35001-13LF/2.034.6X34.6X12.7MM |
300 |
|
数据手册 |
MBH | Tray | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.433" (11.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH31001-13LF/2.030.6X30.6X12.7MM |
294 |
|
数据手册 |
MBH | Tray | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.433" (11.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
EA-T220-64EHEATSINK FOR TO-220 BLACK |
573 |
|
数据手册 |
E | Box | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.500" (63.50mm) | 1.378" (35.00mm) | - | 0.500" (12.70mm) | 6.0W @ 40°C | 4.00°C/W @ 500 LFM | 8.00°C/W | Aluminum | Black Anodized |
