散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BDN09-3CBHEATSINK CPU .91" SQ CTS Thermal Management Products |
307 |
|
数据手册 |
BDN | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.910" (23.11mm) | 0.910" (23.11mm) | - | 0.355" (9.02mm) | - | 9.60°C/W @ 400 LFM | 26.90°C/W | Aluminum | Black Anodized |
|
7-339-3PP-BAHEATSINK PWR W/PINS BLACK TO-220 CTS Thermal Management Products |
3,395 |
|
数据手册 |
7 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 6.0W @ 40°C | - | 7.00°C/W | Aluminum | Black Anodized |
|
LAE66A3CBHEATSINK PWR .75"H BLACK TO-220 CTS Thermal Management Products |
370 |
|
数据手册 |
- | Box | Active | Board Level | TO-126, TO-220 | Bolt On | Rhombus | 1.310" (33.27mm) | 0.900" (22.86mm) | - | 0.750" (19.05mm) | - | 7.00°C/W @ 200 LFM | 50.00°C/W | Aluminum | Black Anodized |
|
BDN14-3CB/A01HEATSINK CPU W/ADHESIVE 1.41"SQ CTS Thermal Management Products |
3,925 |
|
数据手册 |
BDN | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.410" (35.81mm) | 1.410" (35.81mm) | - | 0.355" (9.02mm) | - | 5.60°C/W @ 400 LFM | 16.20°C/W | Aluminum | Black Anodized |
|
BDN12-5CB/A01HEATSINK CPU W/ADHESIVE 1.21"SQ CTS Thermal Management Products |
736 |
|
数据手册 |
BDN | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.210" (30.73mm) | 1.210" (30.73mm) | - | 0.555" (14.10mm) | - | 5.20°C/W @ 400 LFM | 16.50°C/W | Aluminum | Black Anodized |
|
7-338-4PP-BAHEATSINK PWR W/PINS BLACK TO-220 CTS Thermal Management Products |
2,249 |
|
数据手册 |
7 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.500" (63.50mm) | 1.380" (35.05mm) | - | 0.500" (12.70mm) | 9.0W @ 40°C | - | 5.70°C/W | Aluminum | Black Anodized |
|
APR27-27-12CB/A01HEATSINK FORGED W/THERMAL TAPE CTS Thermal Management Products |
366 |
|
数据手册 |
APR | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.047" (26.60mm) | 1.047" (26.60mm) | - | 0.457" (11.60mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

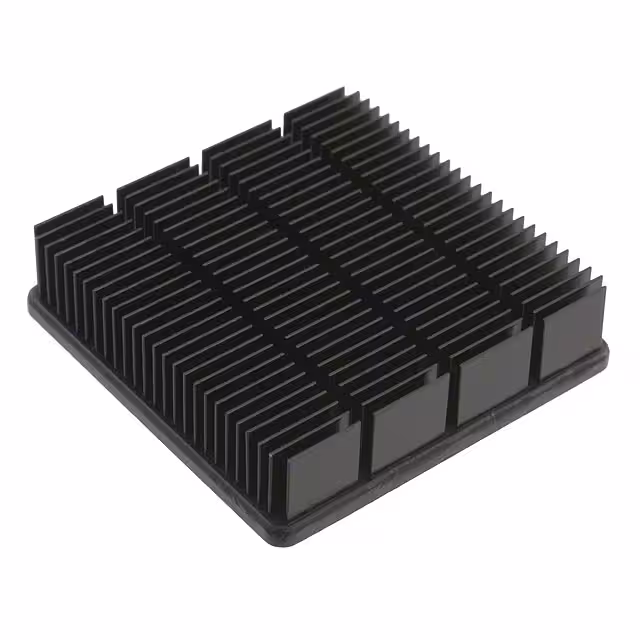

APF40-40-10CBHEATSINK LOW-PROFILE FORGED CTS Thermal Management Products |
258 |
|
数据手册 |
APF | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.370" (9.40mm) | - | 2.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

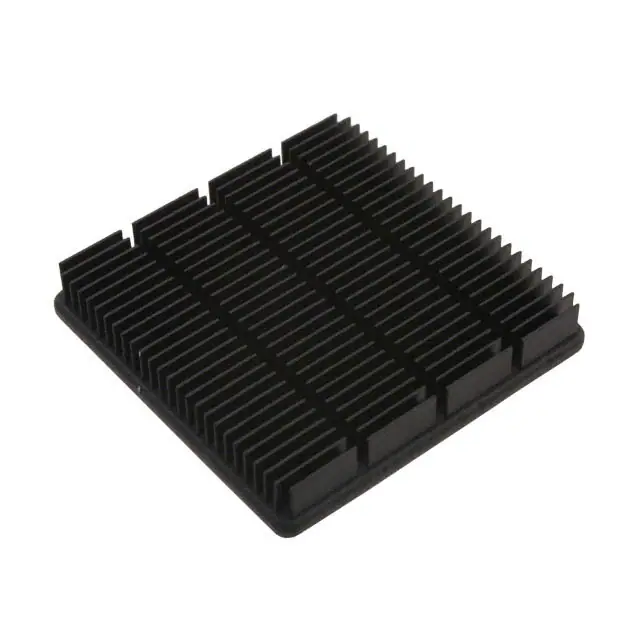

APF40-40-06CBHEATSINK LOW-PROFILE FORGED CTS Thermal Management Products |
701 |
|
数据手册 |
APF | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.250" (6.35mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
7-339-1PP-BAHEATSINK PWR W/PINS BLACK TO-220 CTS Thermal Management Products |
445 |
|
数据手册 |
7 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 6.0W @ 60°C | - | - | Aluminum | Black Anodized |
