散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX0522NDTHERMAL LINK PRESS ON NKL TO-5 |
1,770 |
|
数据手册 |
- | Tray | Obsolete | Top Mount | TO-5 | Stud Mount | Cylindrical | - | 0.380" (9.65mm) | 0.380" (9.65mm) OD | 0.470" (11.94mm) | - | - | - | Aluminum | Dull Nickel |
|
|
TX0547BTHERMAL LINK PRESS ON BLK TO-5 |
3,926 |
|
数据手册 |
- | Tray | Obsolete | Top Mount | TO-5 | Stud Mount | Cylindrical | - | 0.380" (9.65mm) | 0.380" (9.65mm) OD | 0.410" (10.42mm) | - | - | - | Aluminum | Black Cadmium |
|
|
TX0566NDHEAT SINK LAMP RET ELEC ISO TO-5 |
1,318 |
|
数据手册 |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TX1806BTHERMAL LINK PRESS ON BLK TO-18 |
1,813 |
|
数据手册 |
- | Tray | Obsolete | Top Mount | TO-18 | Stud Mount | Cylindrical | - | 0.380" (9.65mm) | 0.380" (9.65mm) OD | - | - | - | - | Aluminum | Black Cadmium |
|

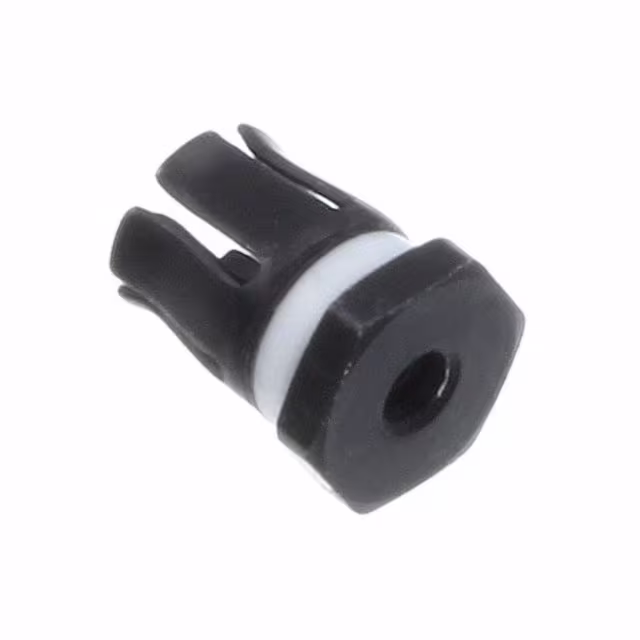

TX1822BTHERMAL LINK PRESS ON BLK TO-18 |
4,110 |
|
数据手册 |
- | Bulk | Obsolete | Top Mount | TO-18 | Stud Mount | Cylindrical | - | 0.380" (9.65mm) | 0.380" (9.65mm) OD | - | - | - | - | Aluminum | Black Cadmium |
|
|
TX1822NDTHERMAL LINK PRESS ON NKL TO-18 |
2,111 |
|
数据手册 |
- | Tray | Obsolete | Top Mount | TO-18 | Stud Mount | Cylindrical | - | 0.380" (9.65mm) | 0.380" (9.65mm) OD | - | - | - | - | Aluminum | Dull Nickel |
|
|
TXB2P045037BTHERMAL LINK PRESS ON BLK TO-8 |
1,228 |
|
数据手册 |
- | Tray | Obsolete | Top Mount | TO-8S | Bolt On | Cylindrical | - | 0.550" (13.97mm) | 0.550" (13.97mm) OD | - | - | - | - | Aluminum | Black Cadmium |
|
|
TXB2P050037BTHERMAL LINK PRESS ON BLK TO-8 |
2,806 |
|
数据手册 |
- | Tray | Obsolete | Top Mount | TO-8S | Bolt On | Cylindrical | - | 0.550" (13.97mm) | 0.550" (13.97mm) OD | - | - | - | - | Aluminum | Black Cadmium |
|
|
TXP0503BTHERMAL LINK PRESS ON BLK TO-5 |
1,348 |
|
数据手册 |
- | Tray | Obsolete | Top Mount | TO-5 | Bolt On | Cylindrical | - | - | 0.380" (9.65mm) OD | 0.430" (10.92mm) | - | - | - | Aluminum | Black Cadmium |
|
|
TXP0508BTHERMAL LINK PRESS ON BLK TO-5 |
1,321 |
|
数据手册 |
- | Tray | Obsolete | Top Mount | TO-5 | Bolt On | Cylindrical | - | - | 0.380" (9.65mm) OD | 0.430" (10.92mm) | - | - | - | Aluminum | Black Cadmium |
|
CR301-75VEALUMINUM HEATSINK 75MM DEGREASED |
1,563 |
|
数据手册 |
CR | Box | Active | Board Level, Vertical | TO-301 | 2 Clips and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 2.362" (60.00mm) | - | - | - | - | 4.50°C/W | Aluminum Alloy | Degreased |
|
CR401-25VEAluminum heatsink 25mm degreased |
2,854 |
|
数据手册 |
CR | Box | Active | Board Level, Vertical | TO-401 | 2 Clips and PC Pin | Rectangular, Fins | 0.984" (25.00mm) | 2.953" (75.00mm) | - | - | - | - | 5.40°C/W | Aluminum Alloy | Degreased |
|
|
CR401-25AEAluminum heatsink 25mm Blk Anodi |
4,580 |
|
数据手册 |
CR | Box | Active | Board Level, Vertical | TO-401 | 2 Clips and PC Pin | Rectangular, Fins | 0.984" (25.00mm) | 2.953" (75.00mm) | - | - | - | - | 5.40°C/W | Aluminum Alloy | Black Anodized |
|
TG-CJP-12-LI98CERAMIC HEATSINK |
1,337 |
|
数据手册 |
- | Bulk | Obsolete | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.472" (12.00mm) | 0.472" (12.00mm) | - | 0.394" (10.00mm) | - | - | - | Ceramic | - |
|
AER48-48-12CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,947 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.854" (47.10mm) | 1.854" (47.10mm) | - | 0.457" (11.60mm) | - | 2.68°C/W @ 200 LFM | 8.67°C/W | Aluminum Alloy | Black Anodized |
|
|
AER48-48-21CB/A01HEATSINK FORGED BLK ANO TOP MNT |
2,726 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.854" (47.10mm) | 1.854" (47.10mm) | - | 0.811" (20.60mm) | - | 1.97°C/W @ 200 LFM | 7.51°C/W | Aluminum Alloy | Black Anodized |
|
|
AER48-48-23CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,788 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.854" (47.10mm) | 1.854" (47.10mm) | - | 0.890" (22.61mm) | - | 1.76°C/W @ 200 LFM | 7.26°C/W | Aluminum Alloy | Black Anodized |
|
AER50-50-15CB/A01HEATSINK FORGED BLK ANO TOP MNT |
2,764 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.953" (49.60mm) | 1.953" (49.60mm) | - | 0.575" (14.60mm) | - | 2.35°C/W @ 200 LFM | 7.98°C/W | Aluminum Alloy | Black Anodized |
|
|
AER50-50-28CB/A01HEATSINK FORGED BLK ANO TOP MNT |
2,454 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.953" (49.60mm) | 1.953" (49.60mm) | - | 1.087" (27.60mm) | - | 1.53°C/W @ 200 LFM | 6.49°C/W | Aluminum Alloy | Black Anodized |
|
|
AER50-50-33CB/A01HEATSINK FORGED BLK ANO TOP MNT |
2,980 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.953" (49.60mm) | 1.953" (49.60mm) | - | 1.283" (32.60mm) | - | 1.26°C/W @ 200 LFM | 5.90°C/W | Aluminum Alloy | Black Anodized |
