散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-H1-58-C3-R0HEATSINK 35X35X25MM L-TAB T412 |
4,159 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 10.25°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-88-C3-R0HEATSINK 35X35X25MM R-TAB T412 |
2,011 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 10.25°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54450W-C0-R0HEATSINK 45X45X24.5MM W/OUT TIM |
4,577 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.965" (24.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS-55330W-C0-R0HEATSINK 33X33X24.5MM W/OUT TIM |
3,853 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.965" (24.50mm) | - | 3.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P1-136-C1-R0HEATSINK 70X70X25MM XCUT |
4,534 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 2.17°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

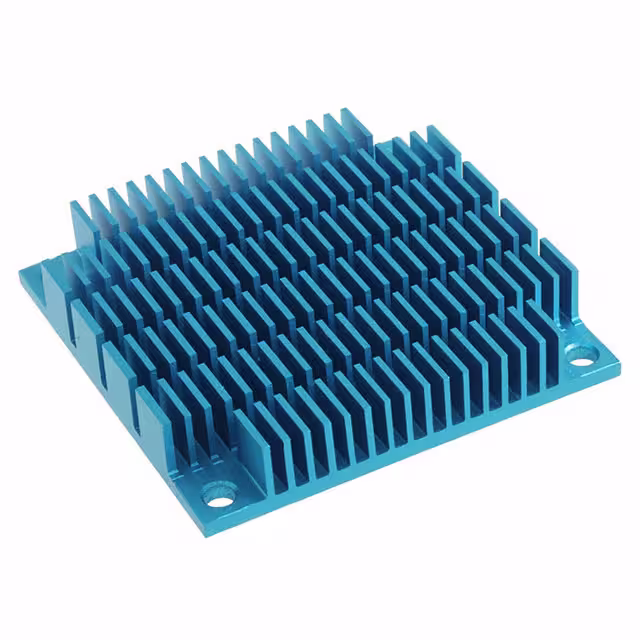

ATS-H1-125-C3-R0HEATSINK 54X54X10MM XCUT T412 |
2,111 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 8.98°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-146-C3-R0HEATSINK 30X30X35MM L-TAB T412 |
3,956 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 4.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-174-C3-R0HEATSINK 30X30X35MM R-TAB T412 |
4,445 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 4.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-88-C2-R0HEATSINK 35X35X25MM R-TAB T766 |
1,357 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 10.11°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-181-C2-R0HEATSINK 40X40X10MM R-TAB T766 |
4,453 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 11.95°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-209-C3-R0HEATSINK 70X70X10MM XCUT T412 |
1,193 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 6.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-153-C3-R0HEATSINK 40X40X10MM L-TAB T412 |
3,608 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 12.06°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-181-C3-R0HEATSINK 40X40X10MM R-TAB T412 |
1,462 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 12.06°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-38-C1-R0HEATSINK 36.83X57.6X22.86MM |
3,485 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.900" (22.86mm) | - | 6.40°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-202-C2-R0HEATSINK 54X54X6MM XCUT T766 |
4,041 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.236" (6.00mm) | - | 14.83°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-130-C1-R0HEATSINK 60X60X15MM XCUT |
4,750 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.590" (15.00mm) | - | 5.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-55350W-C0-R0HEATSINK 35X35X24.5MM W/OUT TIM |
2,626 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.965" (24.50mm) | - | 3.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

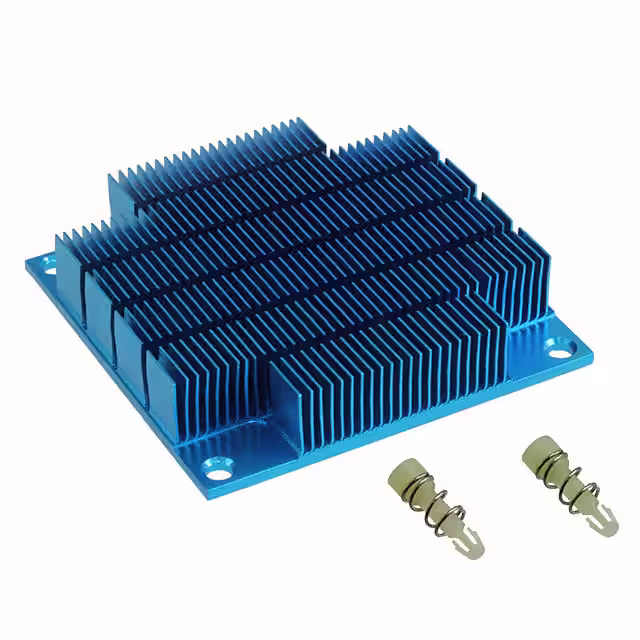

ATS-P1-112-C3-R1HEATSINK 60.00MM X 60.00MM ALUM |
1,883 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.500" (12.70mm) | - | 26.38°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-70-C1-R0HEATSINK 45X45X25MM L-TAB |
4,537 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.69°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-100-C1-R0HEATSINK 45X45X25MM R-TAB |
4,035 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.69°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
