散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-H1-86-C3-R0HEATSINK 35X35X15MM R-TAB T412 |
4,348 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.86°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

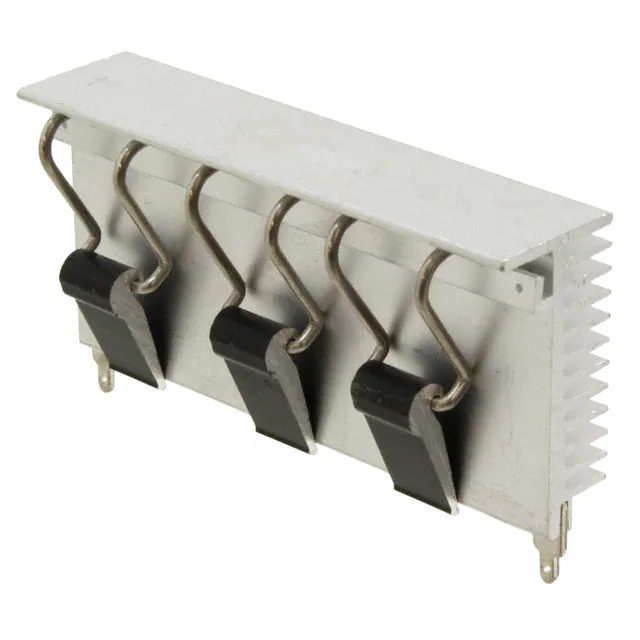

C220-075-3VEHEATSINK AND CLIPS FOR 3 TO-220 |
4,375 |
|
数据手册 |
C | Box | Obsolete | Board Level, Vertical | TO-220 | 3 Clips and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 1.500" (38.10mm) | - | 0.710" (18.03mm) | - | - | - | Aluminum | Degreased |
|
ATS-H1-08-C3-R0HEATSINK 45X45X15MM XCUT T412 |
2,280 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 14.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-147-C3-R0HEATSINK 35X35X10MM L-TAB T412 |
1,356 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 13.65°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-175-C3-R0HEATSINK 35X35X10MM R-TAB T412 |
2,941 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 13.65°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
EA-425-H125-T710STD,EA-425-H125-T710, CLIP ATTAC |
1,637 |
|
数据手册 |
EA-425 | Bulk | Active | Top Mount | BGA, FPGA | Clip | Square, Fins | 1.673" (42.50mm) | 1.673" (42.50mm) | - | 0.492" (12.50mm) | - | 11.40°C/W @ 200 LFM | 24.50°C/W | Aluminum | Black Anodized |
|
ATS-H1-53-C1-R0HEATSINK 30X30X30MM L-TAB |
2,363 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | - | 8.52°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-83-C1-R0HEATSINK 30X30X30MM R-TAB |
1,903 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | - | 8.52°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-120-C3-R0HEATSINK 45X45X25MM XCUT T412 |
1,429 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-14F-39-C2-R0HEATSINK 57.9X60.96X5.84MM T766 |
4,435 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14G-39-C2-R0HEATSINK 57.9X60.96X5.84MM T766 |
4,890 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14H-39-C2-R0HEATSINK 57.9X60.96X5.84MM T766 |
2,145 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14A-39-C2-R0HEATSINK 57.9X60.96X5.84MM T766 |
3,056 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14B-39-C2-R0HEATSINK 57.9X60.96X5.84MM T766 |
3,847 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14C-39-C2-R0HEATSINK 57.9X60.96X5.84MM T766 |
1,066 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14D-39-C2-R0HEATSINK 57.9X60.96X5.84MM T766 |
4,789 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14E-39-C2-R0HEATSINK 57.9X60.96X5.84MM T766 |
3,748 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-56-C2-R0HEATSINK 35X35X15MM L-TAB T766 |
3,374 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 17.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
EA-425-H175-T710STD,EA-425-H175-T710, CLIP ATTAC |
4,626 |
|
数据手册 |
EA-425 | Bulk | Active | Top Mount | BGA, FPGA | Clip | Square, Fins | 1.673" (42.50mm) | 1.673" (42.50mm) | - | 0.689" (17.50mm) | - | 8.80°C/W @ 200 LFM | 18.70°C/W | Aluminum | Black Anodized |
|

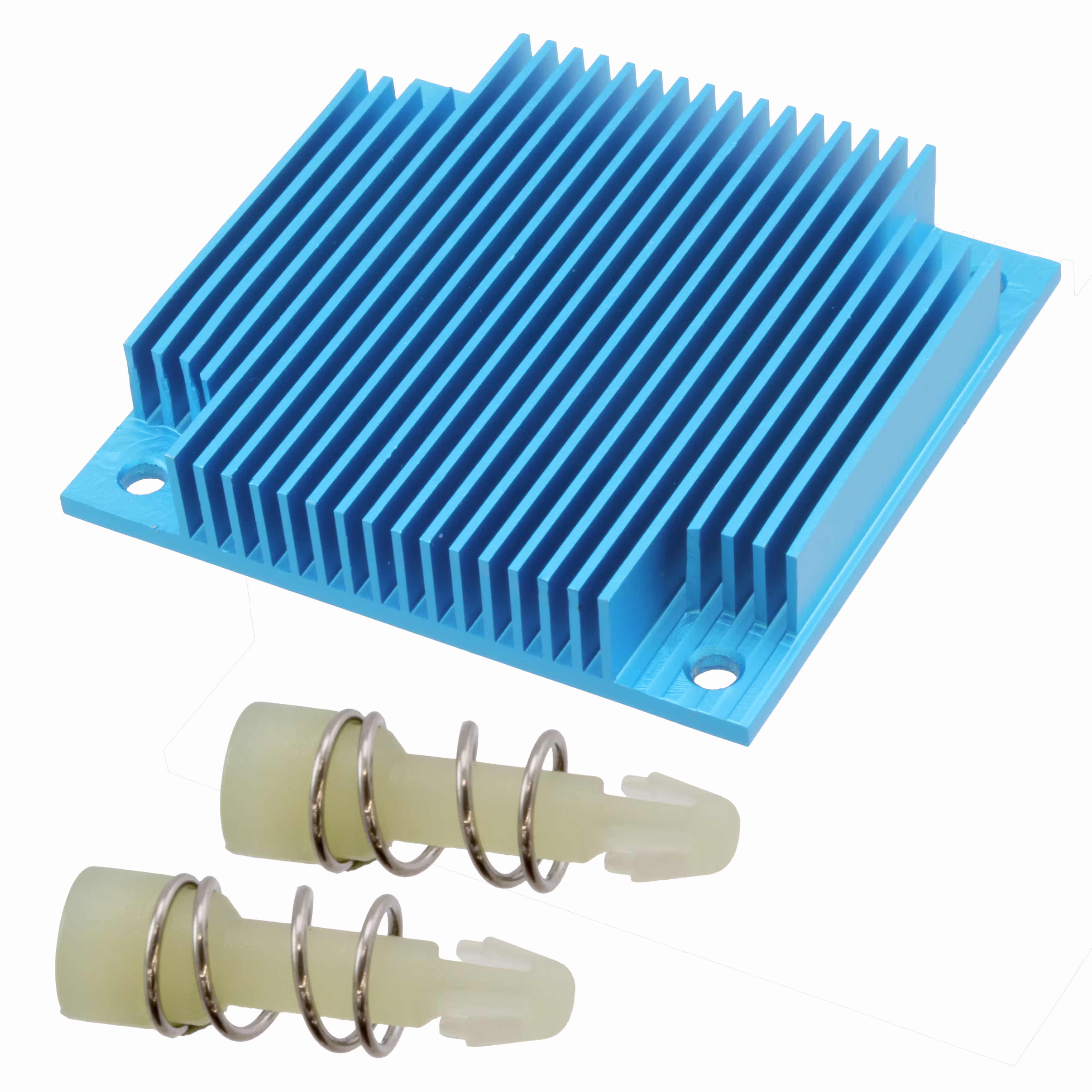

ATS-P1-40-C3-R0HEATSINK 57.9X60.96X11.43MM T412 |
4,010 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.450" (11.43mm) | - | 14.61°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
