散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

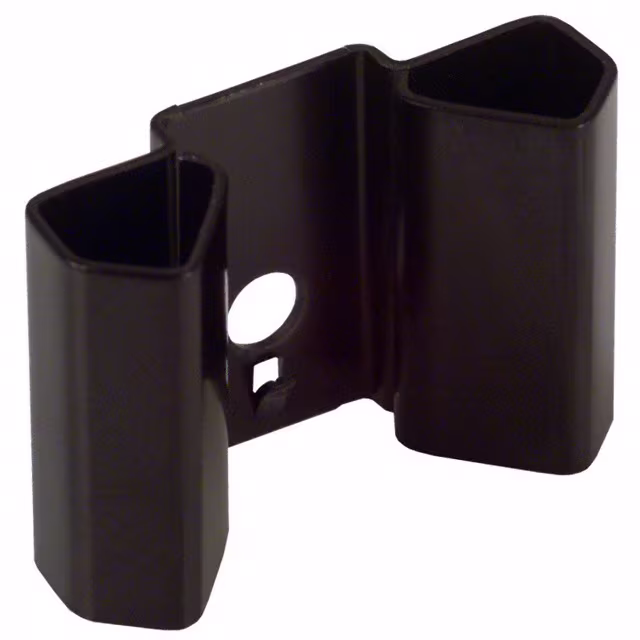

575102B00000GHEATSINK TO-220 CLIP-ON BLK |
2,564 |
|
数据手册 |
- | Bag | Active | Board Level | TO-220 | Clip | Rectangular, Fins | 0.750" (19.05mm) | 1.120" (28.45mm) | - | 0.440" (11.18mm) | 1.0W @ 20°C | 6.00°C/W @ 400 LFM | 16.80°C/W | Aluminum | Black Anodized |
|

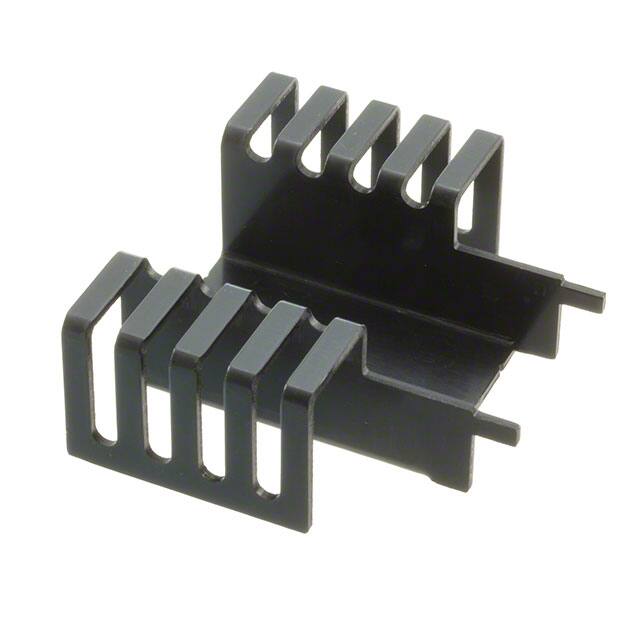

ATS-PCB1056HEATSINK TO-218/TO-247 ALUMINUM |
9,555 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-218, TO-247 | Bolt On and Board Mounts | Rectangular, Fins | 1.622" (41.20mm) | 2.010" (51.00mm) | - | 0.748" (19.00mm) | - | 2.40°C/W @ 200 LFM | 8.00°C/W | Aluminum | Black Anodized |
|
ATS-PCBT1098HEATSINK TO-220 |
933 |
|
数据手册 |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Square, Fins | 1.732" (44.00mm) | 1.732" (44.00mm) | - | 0.059" (1.50mm) | - | 13.00°C/W @ 200 LFM | 22.00°C/W | Aluminum | Black Anodized |
|
7-339-1PP-BAHEATSINK PWR W/PINS BLACK TO-220 |
445 |
|
数据手册 |
7 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 6.0W @ 60°C | - | - | Aluminum | Black Anodized |
|

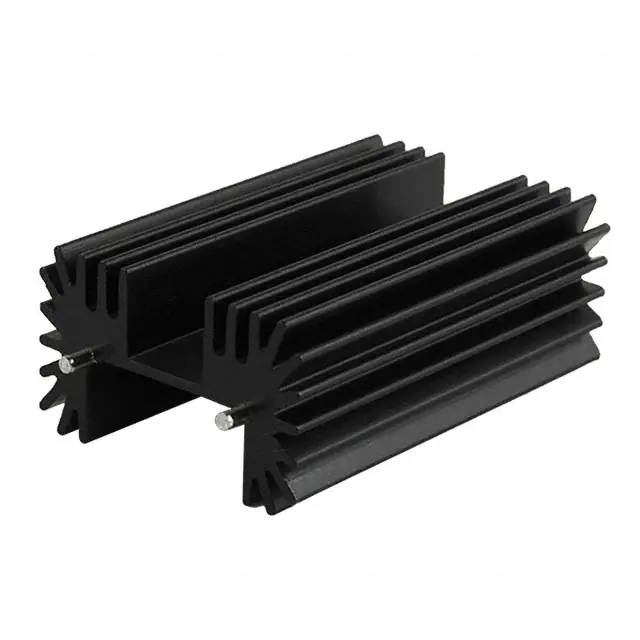

HSE-B18254-0396HHEAT SINK, EXTRUSION,TO-218, 25. |
1,775 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-218 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.000" (25.40mm) | 1.654" (42.00mm) | - | 0.984" (25.00mm) | 8.2W @ 75°C | 2.29°C/W @ 200 LFM | 9.15°C/W | Aluminum Alloy | Black Anodized |
|

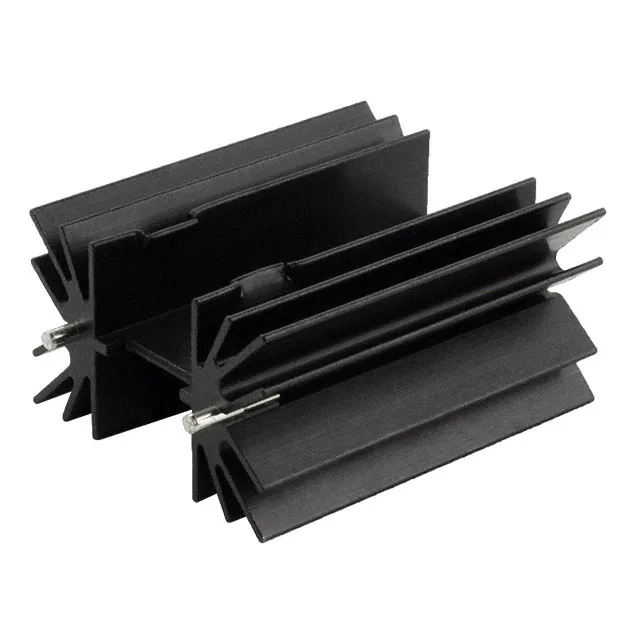

HSE-B18508-035HHEAT SINK, EXTRUSION, TO-218, 50 |
1,302 |
|
数据手册 |
HSE | Box | Active | Board Level, Vertical | TO-218 | Bolt On and PC Pin | Rectangular, Angled Fins | 2.000" (50.80mm) | 1.638" (41.60mm) | - | 0.984" (25.00mm) | 12.8W @ 75°C | 2.98°C/W @ 200 LFM | 5.86°C/W | Aluminum Alloy | Black Anodized |
|
563202D00000GBOARD LEVEL HEAT SINK |
2,732 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.380" (35.05mm) | - | 0.500" (12.70mm) | 2.0W @ 30°C | 5.00°C/W @ 200 LFM | 9.40°C/W | - | Tin |
|

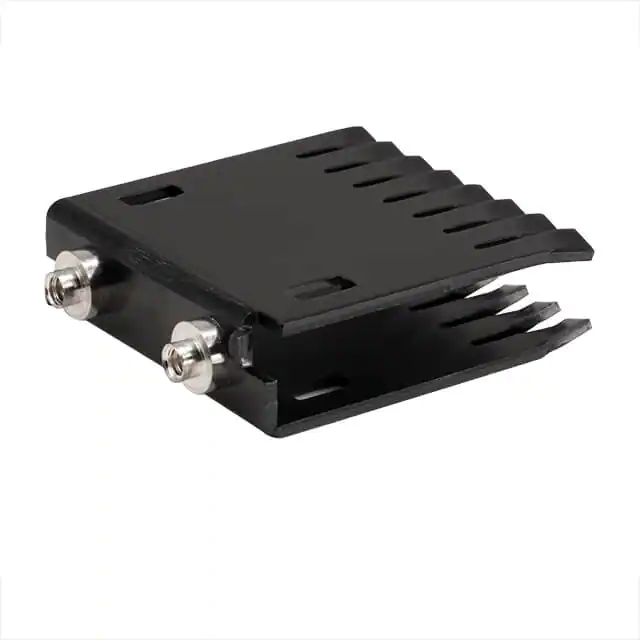

HSS08-B18-CPHEAT SINK, STAMPING, TO-218, 44. |
974 |
|
数据手册 |
HSS | Box | Active | Board Level, Vertical | TO-218 | PC Pin | Square | 1.750" (44.45mm) | 1.750" (44.45mm) | - | 0.492" (12.50mm) | 10.3W @ 75°C | 3.50°C/W @ 200 LFM | 7.29°C/W | Aluminum Alloy | Black Anodized |
|
ATS-PCB1037HEATSINK TO-220 W/TAB BLACK |
1,486 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.380" (35.05mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | 13.00°C/W @ 200 LFM | 18.00°C/W | Aluminum | Black Anodized |
|
ATS-PCBT1081HEATSINK TO-220 W/TAB BLACK |
722 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and Board Locks | Rectangular, Fins | 1.657" (42.10mm) | 2.010" (51.00mm) | - | 0.728" (18.50mm) | - | 1.80°C/W @ 200 LFM | 6.70°C/W | Aluminum | Black Anodized |
|
ATS-PCB1060HEATSINK TO-220 COPPER W/TAB |
148 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and Board Mounts | Rectangular, Fins | 0.858" (21.80mm) | 0.520" (13.21mm) | - | 0.510" (12.95mm) | - | 8.00°C/W @ 200 LFM | 19.70°C/W | Copper | Tin |
|

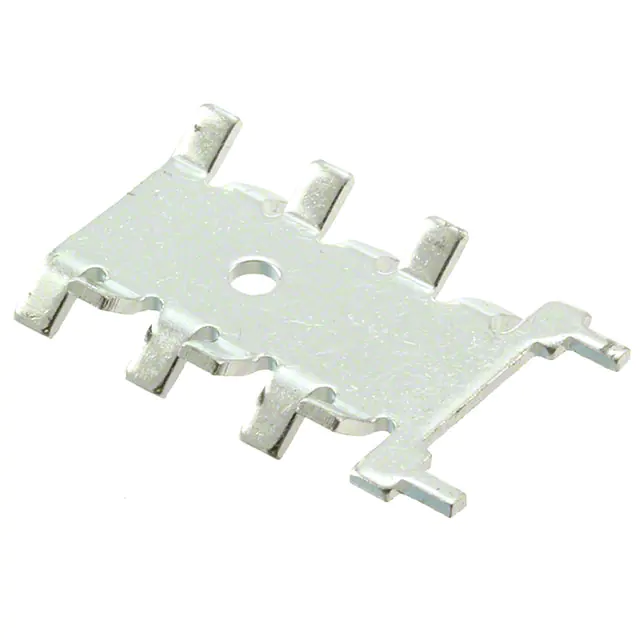

ATS-PCB1058HEATSINK TO-220 COPPER W/TAB |
4,118 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 1.250" (31.75mm) | 0.875" (22.22mm) | - | 0.250" (6.35mm) | - | 8.80°C/W @ 200 LFM | 24.00°C/W | Copper | Tin |
|

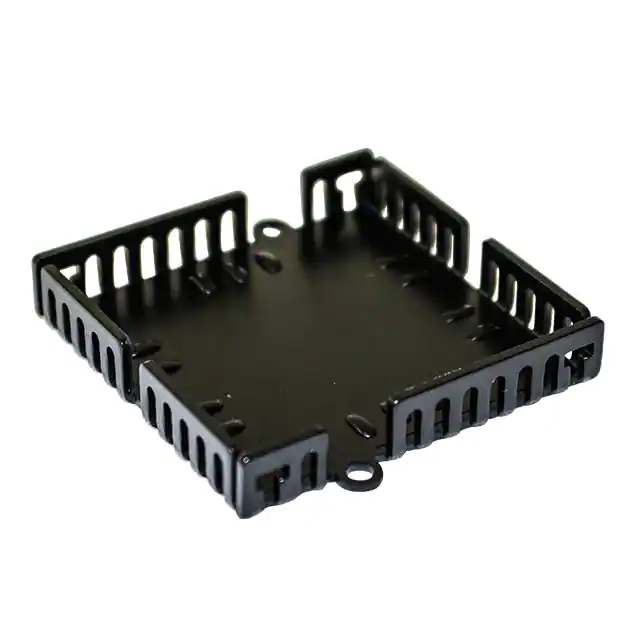

ATS-PCBT1097HEATSINK TO-220 |
932 |
|
数据手册 |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 2.283" (58.00mm) | 2.047" (52.00mm) | - | 0.059" (1.50mm) | - | 12.20°C/W @ 200 LFM | 21.00°C/W | Aluminum | Black Anodized |
|

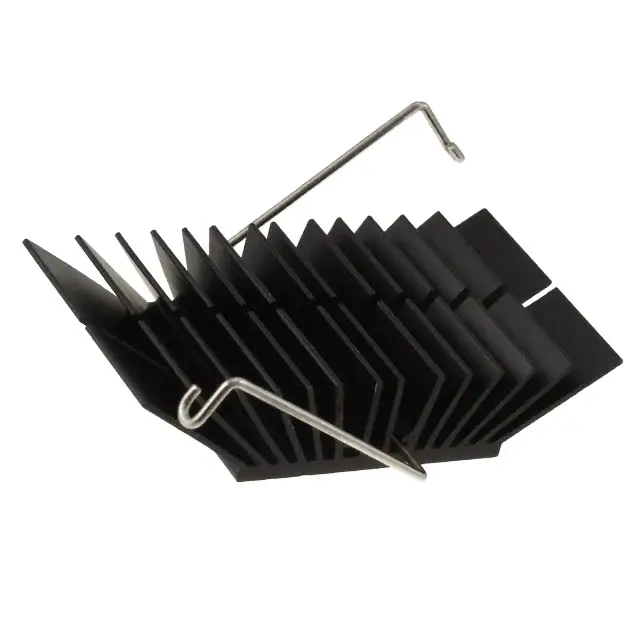

WAVE-35-125ANCHOR HEATSINK 35X35X12.5MM |
794 |
|
数据手册 |
Wave 3x | Bulk | Active | Board Level | BGA | Clip | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.492" (12.50mm) | - | 3.63°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
|

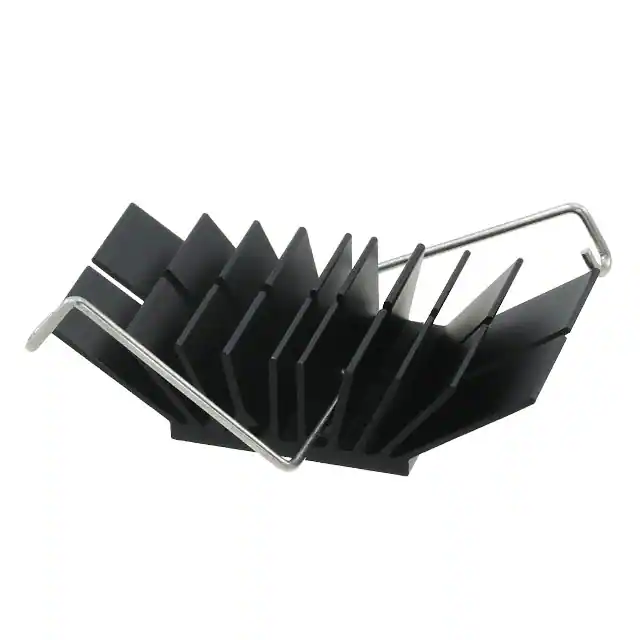

WAVE-26-12ANCHOR HEATSINK 26X26X12MM |
886 |
|
数据手册 |
Wave 2x | Bulk | Active | Board Level | BGA | Clip | Square, Angled Fins | 1.024" (26.00mm) | 1.024" (26.00mm) | - | 0.472" (12.00mm) | - | 5.21°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
|
V2031NHEATSINK CPU FORGED |
132 |
|
数据手册 |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.492" (12.50mm) | - | - | 5.30°C/W | Aluminum Alloy | Black Anodized |
|
V2030NHEATSINK CPU FORGED |
104 |
|
数据手册 |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.256" (6.50mm) | - | - | 6.00°C/W | Aluminum Alloy | Natural Anodized |
|

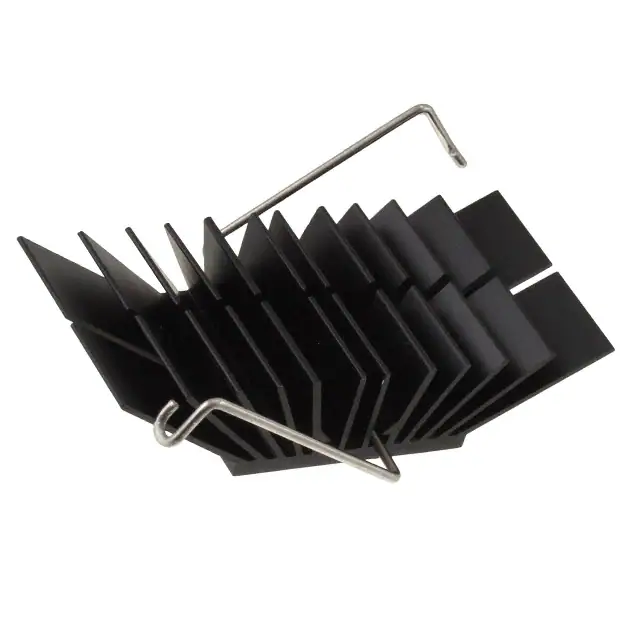

WAVE-29-127ANCHOR HEATSINK 29X29X12.7MM |
824 |
|
数据手册 |
Wave 2x | Bulk | Active | Board Level | BGA | Clip | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.500" (12.70mm) | - | 4.08°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
|

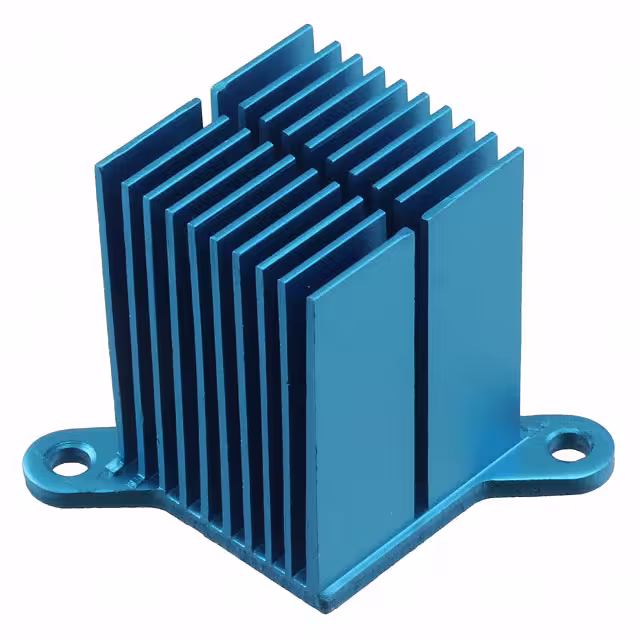

ATS-FPX025025035-78-C2-R0HEATSINK 25X25X35MM R-TAB FP |
112 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 1.378" (35.00mm) | - | 7.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
WAVE-35-12ANCHOR HEATSINK 35X35X12MM |
1,186 |
|
数据手册 |
Wave 3x | Bulk | Active | Board Level | BGA | Clip | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.472" (12.00mm) | - | 3.83°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
