散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
529701B02500GHEATSINK TO-218 SOLDER PIN Boyd Laconia, LLC |
16,835 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-218 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 12.0W @ 70°C | 4.00°C/W @ 200 LFM | 5.50°C/W | Aluminum | Black Anodized |
|
M47118B011000GMAX CLIP HEATSINK Boyd Laconia, LLC |
607 |
|
数据手册 |
Max Clip System™ | Bulk | Active | Board Level, Vertical | TO-126, TO-220, TO-247 | Clip and PC Pin | Rectangular, Angled Fins | 1.180" (29.97mm) | 0.764" (19.40mm) | - | 1.240" (31.50mm) | - | - | - | Aluminum | Black Anodized |
|
579103B00000GHEATSINK TO-3 BLACK .87" Boyd Laconia, LLC |
1,075 |
|
数据手册 |
- | Bag | Active | Top Mount | TO-3 | Bolt On | Rhombus | 1.540" (39.12mm) | - | 1.125" (28.57mm) OD | 0.870" (22.10mm) | 2.5W @ 40°C | 4.00°C/W @ 600 LFM | 12.50°C/W | Aluminum | Black Anodized |
|
534202B02853GHEATSINK TO-220 W/SHURLOCK-CLIP Boyd Laconia, LLC |
19,247 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and Board Locks | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 1.0W @ 20°C | 6.00°C/W @ 300 LFM | 13.40°C/W | Aluminum | Black Anodized |
|

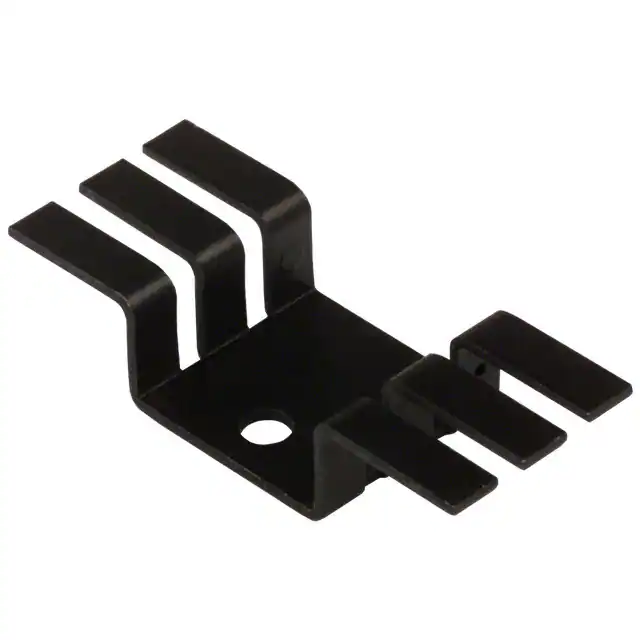

507002B00000GHEATSINK TO-220 BLK Boyd Laconia, LLC |
866 |
|
数据手册 |
Hat Section 5070 | Bag | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.700" (17.78mm) | 1.750" (44.45mm) | - | 0.375" (9.52mm) | 2.0W @ 40°C | 5.00°C/W @ 500 LFM | 15.60°C/W | Aluminum | Black Anodized |
|

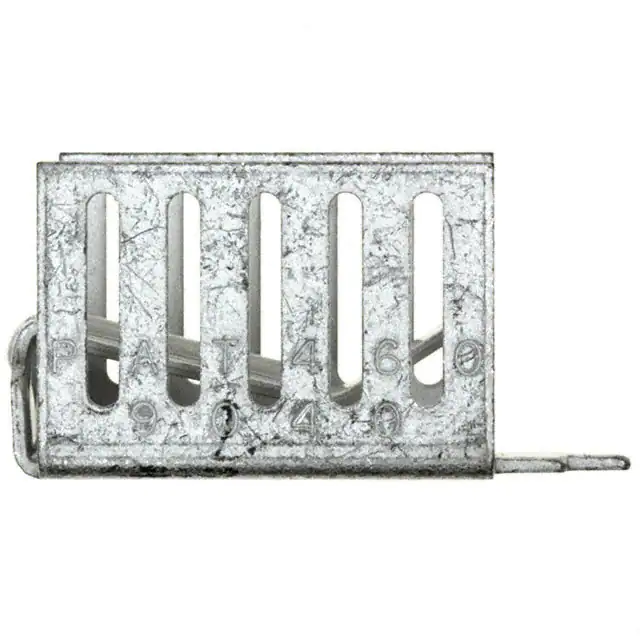

7141DGBOARD LEVEL HEATSINK .515"TO-220 Boyd Laconia, LLC |
409 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 0.780" (19.81mm) | 0.520" (13.21mm) | - | 0.515" (13.08mm) | 1.0W @ 30°C | 10.00°C/W @ 200 LFM | 20.30°C/W | Copper | Tin |
|

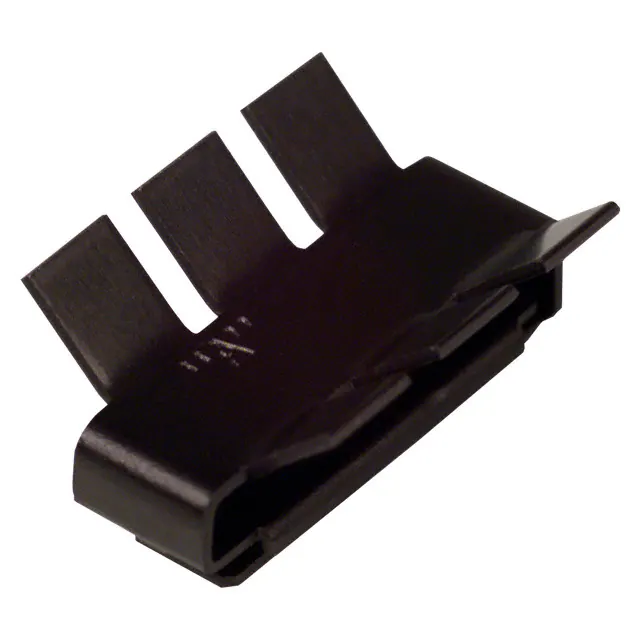

580200B00000GHEATSINK 14-16 DIP BLK ANODIZED Boyd Laconia, LLC |
1,694 |
|
数据手册 |
- | Bag | Active | Top Mount | 14-DIP and 16-DIP | Press Fit, Slide On | Rectangular, Fins | 0.890" (22.61mm) | 0.600" (15.24mm) | - | 0.410" (10.42mm) | 1.0W @ 20°C | 12.00°C/W @ 200 LFM | 20.00°C/W | Aluminum | Black Anodized |
|
574102B00000GHEATSINK TO-220 CLIP-ON BLK Boyd Laconia, LLC |
3,951 |
|
数据手册 |
- | Bag | Active | Board Level | TO-220 | Clip | Rectangular, Fins | 0.750" (19.05mm) | 0.860" (21.84mm) | - | 0.395" (10.03mm) | 1.5W @ 40°C | 8.00°C/W @ 500 LFM | 23.20°C/W | Aluminum | Black Anodized |
|

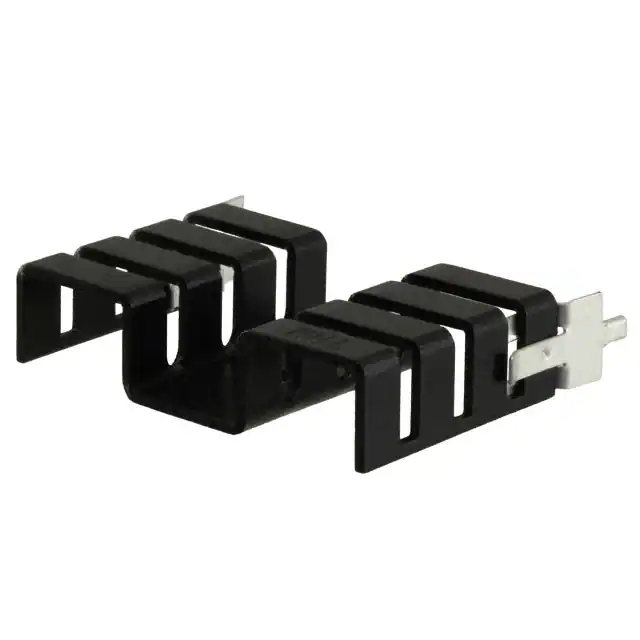

7019B-MTGHEATSINK TO-220 TAB FOLD 25.4MM Boyd Laconia, LLC |
2,514 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.550" (39.37mm) | - | 0.375" (9.52mm) | 3.0W @ 40°C | 8.00°C/W @ 100 LFM | 11.00°C/W | Aluminum | Black Anodized |
|

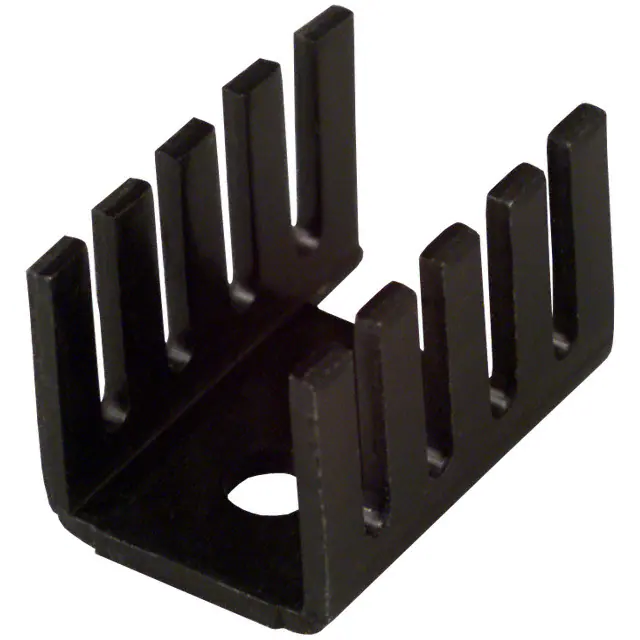

577404B00000GHEATSINK TO-202 LOW PROFILE .5" Boyd Laconia, LLC |
5,333 |
|
数据手册 |
- | Bag | Active | Board Level | TO-202 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.500" (12.70mm) | 2.0W @ 50°C | 10.00°C/W @ 200 LFM | 24.00°C/W | Aluminum | Black Anodized |
