散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TGH-0610-01ALUMINIUM HEAT SINK 61X61MM t-Global Technology |
1,538 |
|
数据手册 |
TGH | Bulk | Active | Top Mount | - | - | Square, Fins | 2.402" (61.00mm) | 2.402" (61.00mm) | - | 0.512" (13.00mm) | - | - | - | Aluminum | - |
|

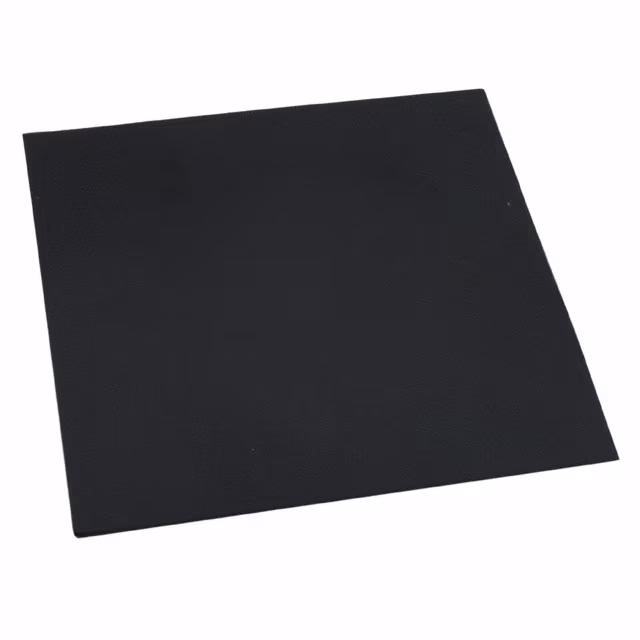

PH3-100-100-0.21-1AIR HEAT SPREADER/EMITTER W/ADH t-Global Technology |
3,788 |
|
数据手册 |
PH3 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Square | 3.937" (100.00mm) | 3.937" (100.00mm) | - | 0.008" (0.21mm) | - | - | - | Copper | Polyester |
|

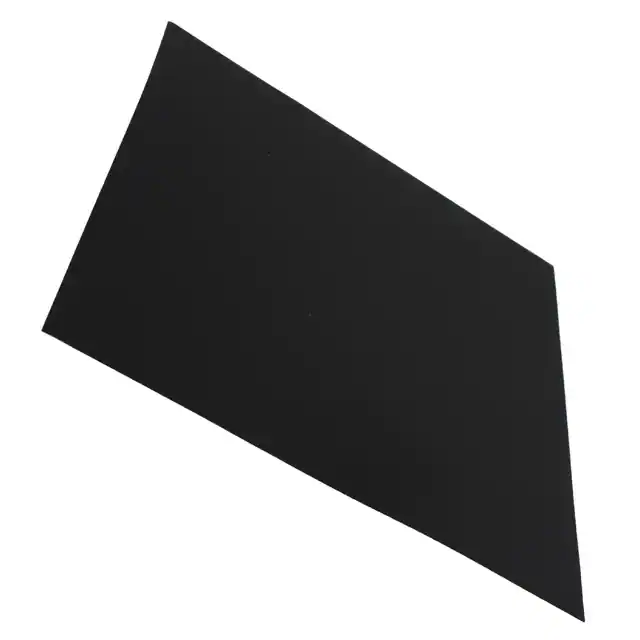

PH3-150-150-0.21-1AIR HEAT SPREADER/EMITTER W/ADH t-Global Technology |
3,478 |
|
数据手册 |
PH3 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Square | 5.906" (150.00mm) | 5.910" (150.00mm) | - | 0.008" (0.21mm) | - | - | - | Copper | Polyester |
|

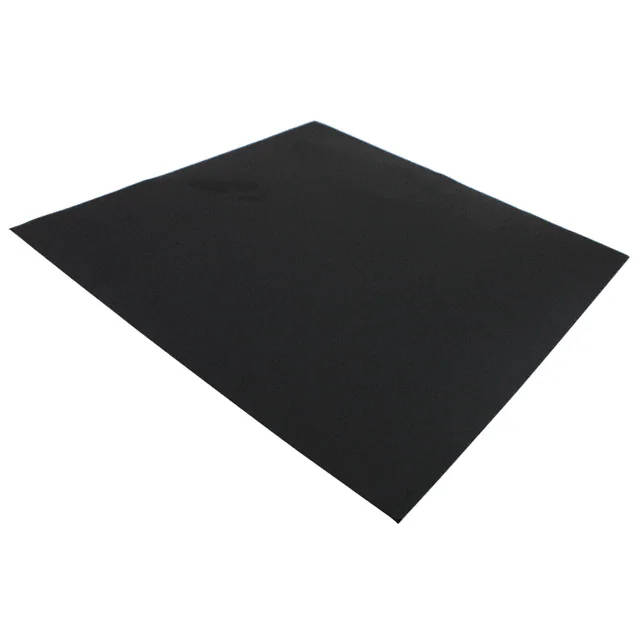

PH3-300-300-0.21-1AIR HEAT SPREADER/EMITTER W/ADH t-Global Technology |
1,028 |
|
数据手册 |
PH3 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Adhesive | Square | 11.811" (300.00mm) | 11.811" (300.00mm) | - | 0.008" (0.21mm) | - | - | - | Copper | Polyester |
|
XL25-40-40-2.0XL25 CERAMIC BOARD 40X40X2MM t-Global Technology |
2,169 |
|
数据手册 |
XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | - | Square | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.079" (2.00mm) | - | - | - | Ceramic | - |
|
|
XL25-10-10-2.0XL25 CERAMIC BOARD 10X10X2MM t-Global Technology |
1,547 |
|
数据手册 |
XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | - | Square | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.079" (2.00mm) | - | - | - | Ceramic | - |
|
|
XL25-30-30-2.0XL25 CERAMIC BOARD 30X30X2MM t-Global Technology |
4,227 |
|
数据手册 |
XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | - | Square | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.079" (2.00mm) | - | - | - | Ceramic | - |
|
XLI98C-20-20-2.15XL25 CERAMIC 20X20MM W/LI98C ADH t-Global Technology |
4,033 |
|
数据手册 |
XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square | 0.787" (20.00mm) | 0.787" (20.00mm) | - | 0.085" (2.15mm) | - | - | - | Ceramic | - |
|
|
XLI98C-30-30-2.15XL25 CERAMIC 30X30MM W/LI98C ADH t-Global Technology |
4,799 |
|
数据手册 |
XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.085" (2.15mm) | - | - | - | Ceramic | - |
|
XLI98C-10-10-2.15XL25 CERAMIC 10X10MM W/LI98C ADH t-Global Technology |
2,898 |
|
数据手册 |
XL-25 | Box | Obsolete | Heat Spreader | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.085" (2.15mm) | - | - | - | Ceramic | - |
