散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

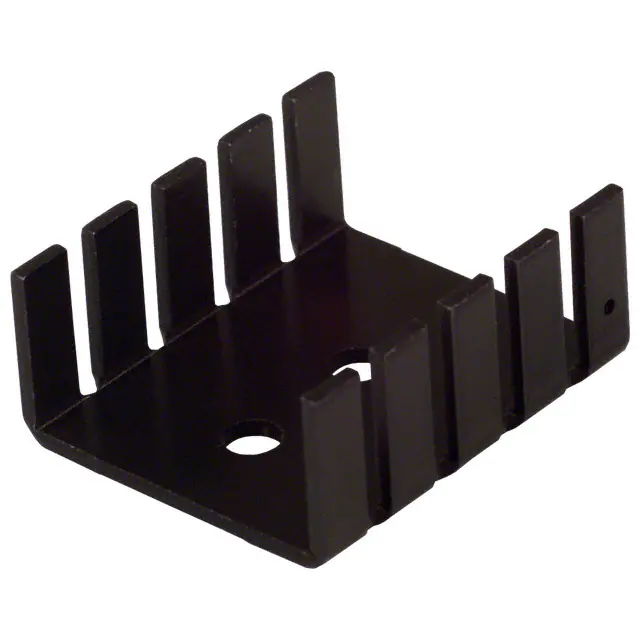

530613B00000GHEATSINK TO-220 BLACK 1.18" |
206 |
|
数据手册 |
- | Bag | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 4.0W @ 80°C | 6.00°C/W @ 600 LFM | 16.70°C/W | Aluminum | Black Anodized |
|
UPTO3CBHEATSINK PWR MED-HI BLACK TO-3 |
685 |
|
数据手册 |
- | Box | Active | Board Level | TO-3 | Bolt On | Square, Pin Fins | 1.780" (45.21mm) | 1.780" (45.21mm) | - | 1.000" (25.40mm) | - | - | 9.00°C/W | Aluminum | Black Anodized |
|
APF19-19-10CBHEATSINK LOW-PROFILE FORGED |
23,859 |
|
数据手册 |
APF | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.370" (9.40mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS012012010-SF-2IHEATSINK 12X12X10MM |
114 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.472" (12.00mm) | 0.472" (12.00mm) | - | 0.394" (10.00mm) | - | 23.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
326005B00000GHEATSINK TO-5 1W H=.375" BLK |
1,363 |
|
数据手册 |
- | Bag | Active | Board Level | TO-5 | Press Fit | Cylindrical | - | - | 0.318" (8.07mm) ID, 0.500" (12.70mm) OD | 0.375" (9.52mm) | 1.8W @ 90°C | 30.00°C/W @ 200 LFM | 57.00°C/W | Aluminum | Black Anodized |
|

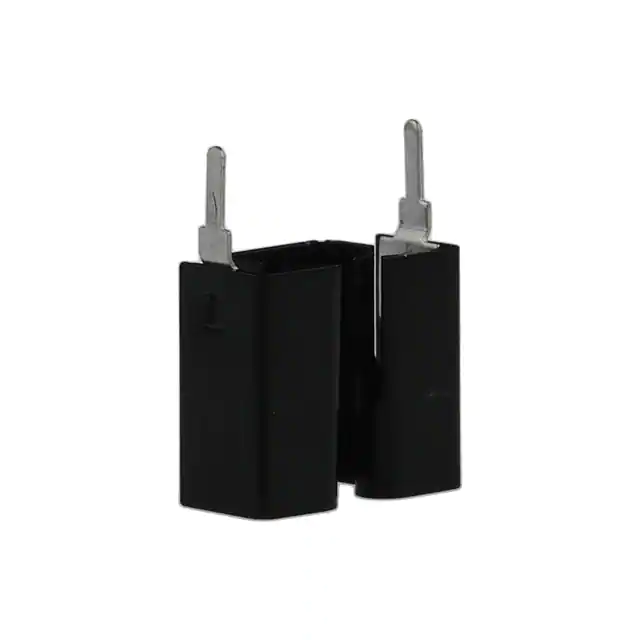

574502B03700GHEATSINK TO220 VER MNT W/TAB.75" |
1,895 |
|
数据手册 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.810" (20.57mm) | - | 0.390" (9.91mm) | 3.0W @ 60°C | 8.00°C/W @ 400 LFM | 21.20°C/W | Aluminum | Black Anodized |
|

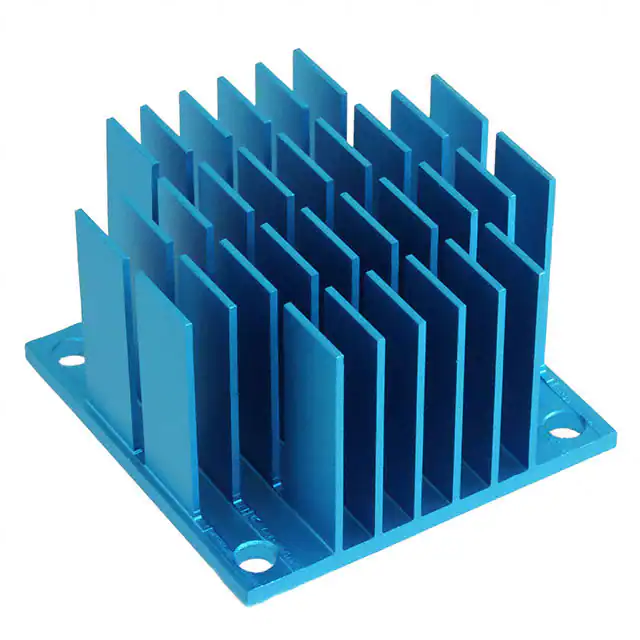

ATS-CPX040040025-116-C2-R0HEATSINK 40X40X25MM XCUT CP |
1,143 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPS058037011-32-C1-R0HEATSINK 57.9X36.83X11.43MM FP |
276 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.450" (11.43mm) | - | 21.45°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
TGH-0400-03ALUMINIUM HEAT SINK 40X40MM |
809 |
|
数据手册 |
TGH | Bulk | Active | Top Mount | - | - | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.433" (11.00mm) | - | - | - | Aluminum | Black Anodized |
|

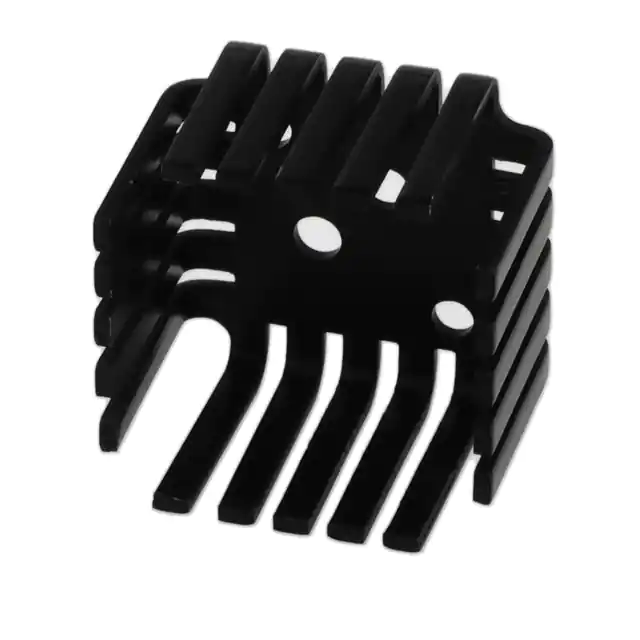

505403B00000GHEATSINK TO-3 H31.75MM |
3,143 |
|
数据手册 |
- | Bulk | Active | Board Level | TO-3 | Bolt On | Square, Pin Fins | 1.780" (45.21mm) | 1.780" (45.21mm) | - | 1.250" (31.75mm) | 7.0W @ 40°C | 1.50°C/W @ 600 LFM | 6.00°C/W | Aluminum | Black Anodized |
|
ATS-CPX025025010-137-C2-R0HEATSINK 25X25X10MM L-TAB CP |
849 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 18.36°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
523002B00000GHEATSINK TO-220 W/TAB BLACK |
3,465 |
|
数据手册 |
- | Bag | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 1.0W @ 20°C | 6.00°C/W @ 300 LFM | 13.60°C/W | Aluminum | Black Anodized |
|
ATS-CPX050050025-124-C2-R0HEATSINK 50X50X25MM XCUT CP |
2,455 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 3.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
7-345-2PP-BAHEATSINK PWR DUAL BLACK TO-220 |
1,067 |
|
数据手册 |
7 | Box | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.500" (38.10mm) | 2.000" (50.80mm) | - | 0.553" (14.05mm) | 6.0W @ 25°C | - | 4.70°C/W | Aluminum | Black Anodized |
|
BDN11-3CB/A01HEATSINK CPU W/ADHESIVE 1.11"SQ |
878 |
|
数据手册 |
BDN | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.110" (28.19mm) | 1.110" (28.19mm) | - | 0.355" (9.02mm) | - | 7.20°C/W @ 400 LFM | 20.90°C/W | Aluminum | Black Anodized |
|
|
ATS-CPX040040025-116-C1-R0HEATSINK 40X40X25MM XCUT CP |
510 |
|
数据手册 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.11°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

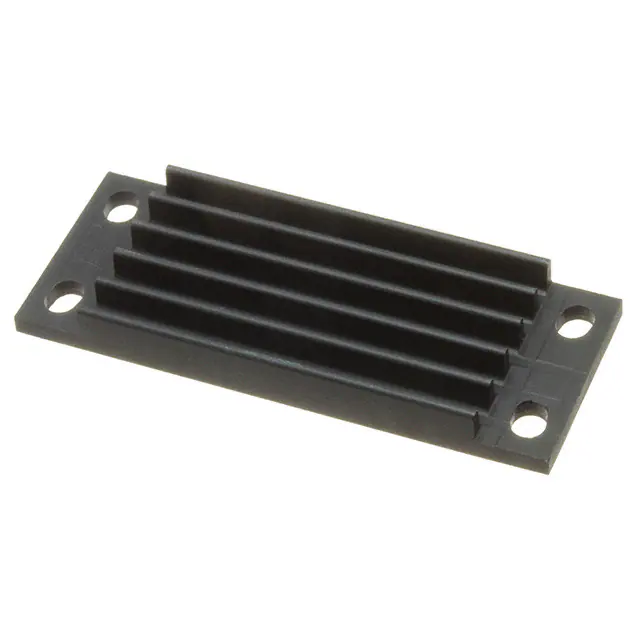

567-24AB1/8 BRICK HEATSINK 55X20.7X6.1MM |
129 |
|
数据手册 |
567 | Tray | Active | Top Mount | Eighth Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 2.165" (55.00mm) | 0.815" (20.70mm) | - | 0.240" (6.10mm) | - | 7.20°C/W @ 300 LFM | 7.20°C/W | - | Unfinished |
|

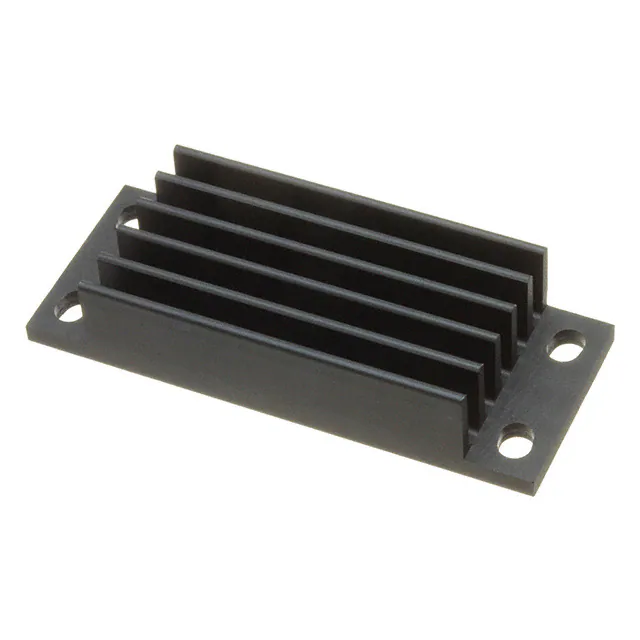

567-45AB1/8 BRICK HEATSINK 55X20.7X11.4M |
599 |
|
数据手册 |
567 | Bulk | Active | Top Mount | Eighth Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 2.165" (55.00mm) | 0.815" (20.70mm) | - | 0.449" (11.40mm) | - | 4.30°C/W @ 300 LFM | 4.30°C/W | - | Unfinished |
|
374424B00035GHEATSINK BGA W/ADHESIVE TAPE |
1,162 |
|
数据手册 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.709" (18.00mm) | 4.0W @ 80°C | 6.50°C/W @ 200 LFM | 20.30°C/W | Aluminum | Black Anodized |
|

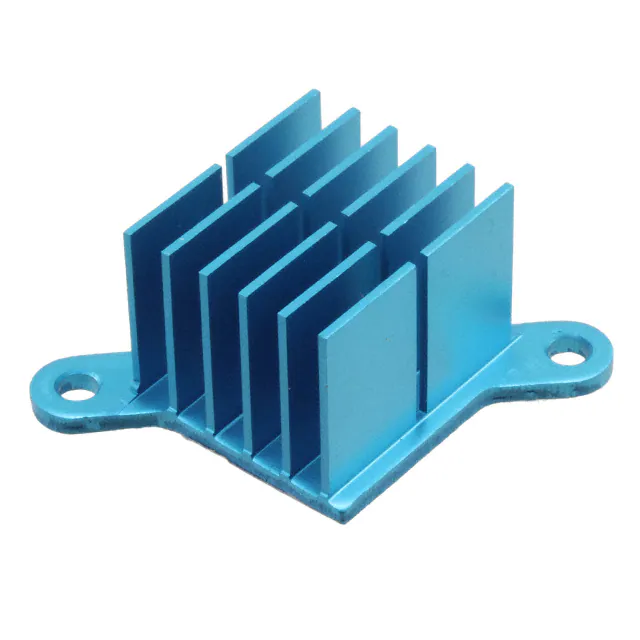

ATS-CPX025025020-139-C2-R0HEATSINK 25X25X20MM L-TAB CP |
1,981 |
|
数据手册 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | - | 9.10°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
