热切断器（热熔断器）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 封装/外壳 | 系列 | 包装 | 产品状态 | 类型 | 保持温度 | 额定工作温度 | 复位温度 | 电压额定值 - 交流 | 电压额定值 - 直流 | 电流额定值（安培） | 认证机构 | 最高温度限制 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NR77AB0THERMOSTAT 77DEG C NC STRAP SLDR |
4,956 |
|
数据手册 |
Nonstandard | Komatsulite™, NR | Bag | Active | Breaker | - | 77°C (171°F) | 40°C (104°F) | - | 28.0 | 25 A | cUL, TUV, UL | - |
|
MHP-TAM15-9-77THERMOSTAT 77DEG C SPST-NC STRAP |
1,619 |
|
数据手册 |
Nonstandard | MHP-TAM | Bag | Active | Breaker | - | 77°C (171°F) | 40°C (104°F) | - | 9.0 | 12 A | cUL, UL | - |
|
|
MHP-TAM6-9-82THERMOSTAT 82DEG C SPST-NC STRAP |
1,590 |
|
数据手册 |
Nonstandard | MHP-TAM | Bag | Active | Breaker | - | 82°C (180°F) | 40°C (104°F) | - | 9.0 | 12 A | cUL, UL | - |
|
|
MHP-TAM15-9-85THERMOSTAT 85DEG C SPST-NC STRAP |
1,757 |
|
数据手册 |
Nonstandard | MHP-TAM | Bag | Active | Breaker | - | 85°C (185°F) | 40°C (104°F) | - | 9.0 | 12 A | cUL, UL | - |
|
|
MHP-TAM15-9-82THERMOSTAT 82DEG C SPST-NC STRAP |
1,709 |
|
数据手册 |
Nonstandard | MHP-TAM | Bag | Active | Breaker | - | 82°C (180°F) | 40°C (104°F) | - | 9.0 | 12 A | cUL, UL | - |
|
|
NR72CB0THERMOSTAT 72DEG C SPST-NC 2SMD |
148 |
|
数据手册 |
Nonstandard | Komatsulite™, NR | Bag | Active | Breaker | - | 72°C (162°F) | 40°C (104°F) | - | 28.0 | 12 A | cUL, TUV, UL | - |
|

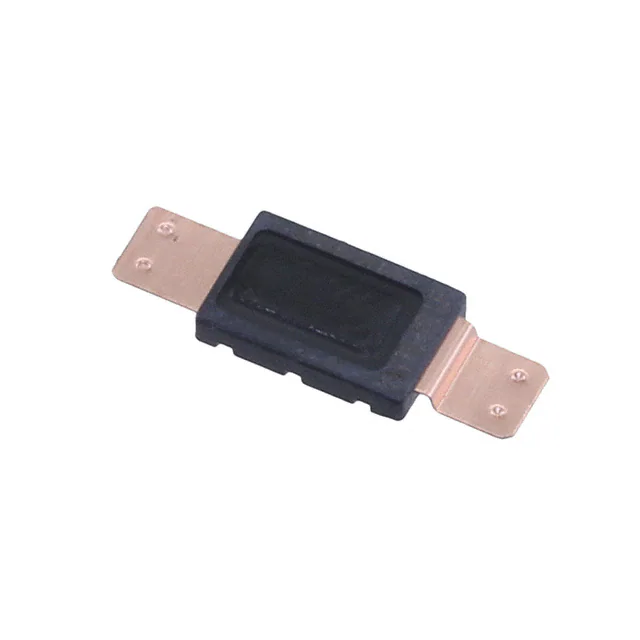

MHP-TAT18-9-90NTHERMOSTAT 90DEG C SPST-NC STRAP |
683 |
|
数据手册 |
Nonstandard | MHP-TAT18 | Bag | Active | Breaker | - | 90°C (194°F) | 40°C (104°F) | - | 28.0 | 30 A | cURus | - |
|
HCRTP-MINITHERMAL PROTECTOR 16V 500A 220C |
3,410 |
|
数据手册 |
Nonstandard SMD | RTP | Tape & Reel (TR) | Active | Fuse | - | 228°C (442°F) | - | - | 16.0 | 500 A | - | 150°C (302°F) |
|
HC82AY-1THERMOSTAT 82DEG C NC STRAP SLDR |
4,994 |
|
数据手册 |
Nonstandard | Komatsulite™, HC | Bag | Active | Breaker | - | 82°C (180°F) | 40°C (104°F) | - | 28.0 | 25 A | cUL, TUV, UL | - |
|
|
NR82AB0THERMOSTAT 82DEG C SPST-NC 2SMD |
4,994 |
|
数据手册 |
Nonstandard | Komatsulite™, NR | Bag | Active | Breaker | - | 82°C (180°F) | 40°C (104°F) | - | 28.0 | 25 A | cUL, TUV, UL | - |
|
|
MHP-TAM6-9-85THERMOSTAT 85DEG C SPST-NC STRAP |
30,005 |
|
数据手册 |
Nonstandard | MHP-TAM | Bag | Active | Breaker | - | 85°C (185°F) | 40°C (104°F) | - | 9.0 | 12 A | cUL, UL | - |
|
HC77AY-1THERMOSTAT 77DEG C NC STRAP SLDR |
9,947 |
|
数据手册 |
Nonstandard | Komatsulite™, HC | Bag | Active | Breaker | - | 77°C (171°F) | 40°C (104°F) | - | 28.0 | 25 A | cUL, TUV, UL | - |
|
AD72WBBTCO HC AXIAL 72C NON SELF HOLD |
2,980 |
|
数据手册 |
Nonstandard | AD | Bag | Active | Breaker | - | 162°F (72°C) | 40°C (104°F) | - | 14.0 | 8 A | - | - |
|
|
AD60WBBTCO HC AXIAL 60C NON SELF HOLD |
2,946 |
|
数据手册 |
Nonstandard | AD | Bag | Active | Breaker | - | 60°C (140°F) | 20°C (68°F) | - | 14.0 | 8 A | - | - |
|
|
ADE0WBBTCO HC AXIAL 140C NON SELF HOLD |
2,975 |
|
数据手册 |
Nonstandard | AD | Bag | Active | Breaker | - | 140°C (284°F) | 40°C (104°F) | - | 14.0 | 8 A | - | - |
|
|
AD70WBBTCO HC AXIAL 70C NON SELF HOLD |
2,967 |
|
数据手册 |
Nonstandard | AD | Bag | Active | Breaker | - | 70°C (158°F) | 20°C (68°F) | - | 14.0 | 8 A | - | - |
|
|
ADF0WBBTCO HC AXIAL 150C NON SELF HOLD |
2,087 |
|
数据手册 |
Nonstandard | AD | Bag | Active | Breaker | - | 150°C (302°F) | 40°C (104°F) | - | 14.0 | 8 A | - | - |
|
|
NX82ABBTCO HIGH CURRENT 82C 28V 35A |
999 |
|
数据手册 |
Nonstandard | NX | Bag | Active | Breaker | - | 180°F (82°C) | 40°C (104°F) | - | 28.0 | 35 A | cUL, TUV, UL | - |
|
|
NX77ABBTCO HIGH CURRENT 77C 28V 35A |
988 |
|
数据手册 |
Nonstandard | NX | Bag | Active | Breaker | - | 171°F (77°C) | 40°C (104°F) | - | 28.0 | 35 A | cUL, TUV, UL | - |
|
|
NX90ABBTCO HIGH CURRENT 90C 28V 35A |
927 |
|
数据手册 |
Nonstandard | NX | Bag | Active | Breaker | - | 90°C (194°F) | 40°C (104°F) | - | 28.0 | 35 A | cUL, TUV, UL | - |
