机械式恒温器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电路 | 切换温度 | 复位温度 | 电流额定值 - 交流 | 电流额定值 - 直流 | 容差 | 切换周期 | 端接样式 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

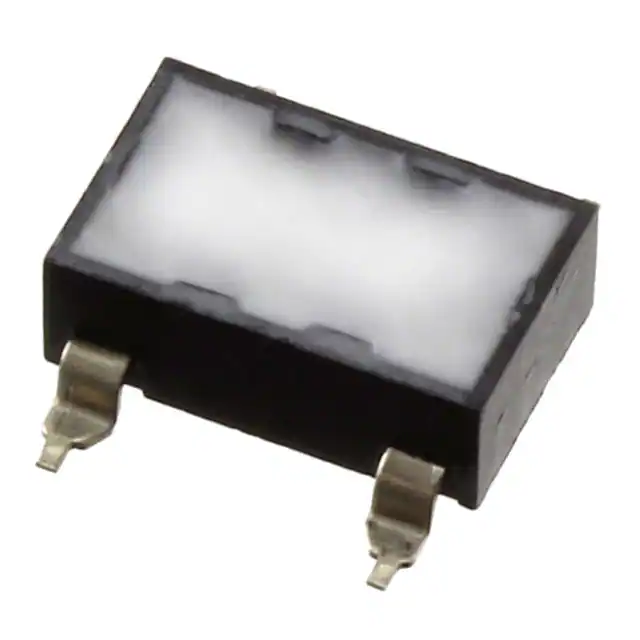

66L055-0260THERMOSTAT 55DEG C SPST-NC 4SMD |
1,212 |
|
数据手册 |
6600 | 4-SMD, Gull Wing | Tube | Active | SPST-NC | 131°F (55°C) | 86°F (30°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Surface Mount |
|
66L055-0339THERMOSTAT 55DEG C SPST-NC 8DIP |
1,561 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Obsolete | SPST-NC | 131°F (55°C) | 86°F (30°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
66L060-0347THERMOSTAT 60DEG C SPST-NC 8DIP |
3,170 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Obsolete | SPST-NC | 140°F (60°C) | 104°F (40°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L060-0367THERMOSTAT 60DEG C SPST-NC 8DIP |
2,170 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NC | 140°F (60°C) | 104°F (40°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L065-0187THERMOSTAT 65DEG C SPST-NC 8DIP |
4,339 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Obsolete | SPST-NC | 149°F (65°C) | 104°F (40°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L065-0256THERMOSTAT 65DEG C SPST-NC 4SMD |
2,186 |
|
数据手册 |
6600 | 4-SMD, Gull Wing | Tube | Active | SPST-NC | 149°F (65°C) | 104°F (40°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Surface Mount |
|
|
66L065-0273THERMOSTAT 65DEG C SPST-NC 8DIP |
4,914 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Obsolete | SPST-NC | 149°F (65°C) | 104°F (40°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L065-0341THERMOSTAT 65DEG C SPST-NC 8DIP |
1,011 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Obsolete | SPST-NC | 149°F (65°C) | 104°F (40°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L065-0413THERMOSTAT 65DEG C SPST-NC 8DIP |
1,314 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Obsolete | SPST-NC | 149°F (65°C) | 104°F (40°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L065-0422THERMOSTAT 65DEG C SPST-NC 4SMD |
2,537 |
|
数据手册 |
6600 | 4-SMD, Gull Wing | Tube | Active | SPST-NC | 149°F (65°C) | 104°F (40°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Surface Mount |
|
|
66L070-0124THERMOSTAT 70DEG C SPST-NC 8DIP |
3,746 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Obsolete | SPST-NC | 158°F (70°C) | 122°F (50°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L070-0241THERMOSTAT 70DEG C SPST-NC 8DIP |
2,117 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Obsolete | SPST-NC | 158°F (70°C) | 122°F (50°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L070-0301THERMOSTAT 70DEG C SPST-NC 8DIP |
2,347 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Obsolete | SPST-NC | 158°F (70°C) | 122°F (50°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L070-0342THERMOSTAT 70DEG C SPST-NC 8DIP |
4,385 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Obsolete | SPST-NC | 158°F (70°C) | 122°F (50°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L070-0481THERMOSTAT 70DEG C SPST-NC 8DIP |
1,884 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Obsolete | SPST-NC | 158°F (70°C) | 122°F (50°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L075-0263THERMOSTAT 75DEG C SPST-NC 8DIP |
3,268 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Obsolete | SPST-NC | 167°F (75°C) | 122°F (50°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L075-0343THERMOSTAT 75DEG C SPST-NC 8DIP |
1,687 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Obsolete | SPST-NC | 167°F (75°C) | 122°F (50°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L075-0460THERMOSTAT 75DEG C SPST-NC 8DIP |
1,634 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NC | 167°F (75°C) | 122°F (50°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L080-0182THERMOSTAT 80DEG C SPST-NC 8DIP |
2,107 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NC | 176°F (80°C) | 131°F (55°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L080-0201THERMOSTAT 80DEG C SPST-NC 8DIP |
4,633 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NC | 176°F (80°C) | 131°F (55°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
