RTD（电阻温度检测器）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电阻 @ 0°C | 电阻容差 | RTD 材料 | 工作温度 | 端接方式 | 精度 | 温度系数 | 电流 | 安装类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
USW4463SENSOR RTD 100OHM 0.06% PROBE |
1,994 |
|
数据手册 |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - |
|

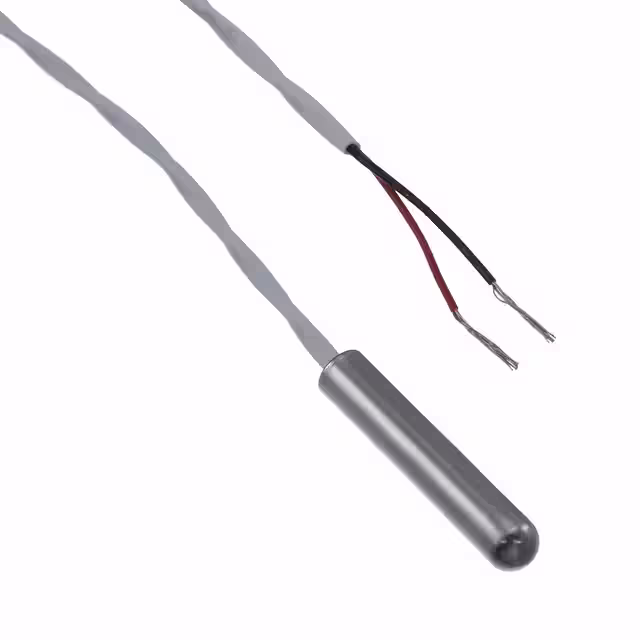

5117585SENSOR RTD 1000OHM PROBE |
1,707 |
|
数据手册 |
- | Probe | Bulk | Obsolete | 1 kOhms | - | - | -40°C ~ 260°C | Wire Leads | - | 3850ppm/°C | - | Free Hanging | - | - |
|
32206105SENSOR RTD 100OHM 0.3% PROBE |
1,554 |
|
数据手册 |
K | Cylindrical Probe, Ceramic | Bulk | Discontinued at Digi-Key | 100 Ohms | ±0.12% | Platinum (Pt) | -196°C ~ 850°C | PC Pins | ±0.3°C | 3850ppm/°C | 1 mA | Free Hanging | - | - |
|
|
XE-4747-001PT100 WIREWOUND CLASS A 25X2.8MM |
1,651 |
|
数据手册 |
* | - | Active | - | - | - | - | - | - | - | - | - | - | - | |
|

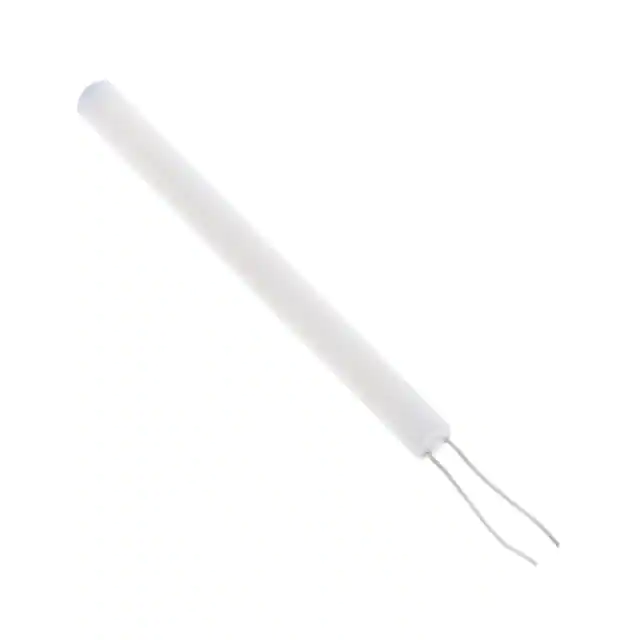

32206557SENSOR RTD RADIAL |
2,590 |
|
数据手册 |
- | Radial | Bulk | Discontinued at Digi-Key | 100 Ohms | - | Platinum (Pt) | -100°C ~ 350°C | PC Pins | - | 3850ppm/°C | 1 mA | Through Hole | - | - |
|
701-101BAB-B00SENSOR RTD 100OHM 0.12% RADIAL |
2,998 |
|
数据手册 |
700 | Radial | Bulk | Active | 100 Ohms | ±0.12% | Platinum (Pt) | -70°C ~ 500°C | PC Pins | - | 3850ppm/°C | 1 mA | Through Hole | - | - |
|
|
32206109SENSOR RTD 100OHM 0.15% PROBE |
2,219 |
|
数据手册 |
K | Cylindrical Probe, Ceramic | Bulk | Discontinued at Digi-Key | 100 Ohms | ±0.06% | Platinum (Pt) | -196°C ~ 600°C | PC Pins | ±0.15°C | 3850ppm/°C | 1 mA | Free Hanging | - | - |
|
|
XE-4746-001PT100 WIREWOUND CLASS A 15X2.8MM |
1,102 |
|
数据手册 |
* | - | Active | - | - | - | - | - | - | - | - | - | - | - | |
|
|
P0K1.216.2K.A.300-4SENSOR RTD 100OHM PROBE |
1,855 |
|
数据手册 |
- | Probe | Bag | Active | 100 Ohms | - | Platinum (Pt) | -50°C ~ 200°C | Wire Leads | - | 3850ppm/°C | - | Free Hanging | - | - |
|

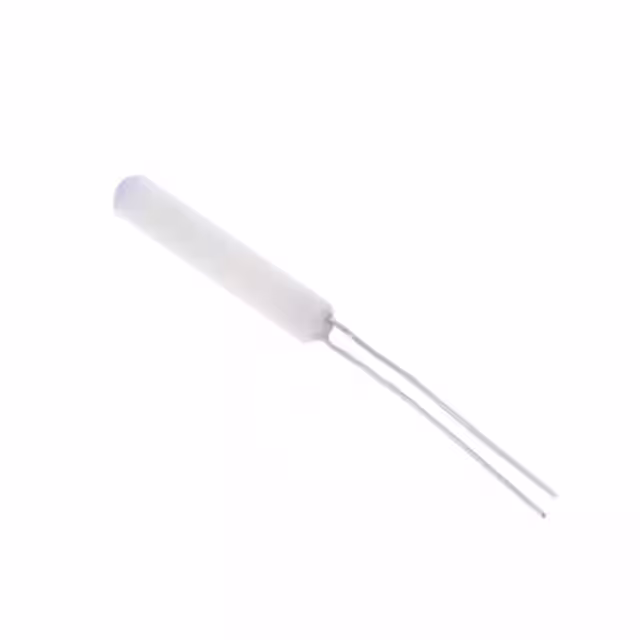

32206465SENSOR RTD RADIAL |
4,969 |
|
数据手册 |
- | Radial | Bulk | Discontinued at Digi-Key | 100 Ohms | - | Platinum (Pt) | -100°C ~ 350°C | PC Pins | - | 3850ppm/°C | 1 mA | Through Hole | - | - |
|
|
HEL-705-U-0-18-00SENSOR RTD |
2,281 |
|
数据手册 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|

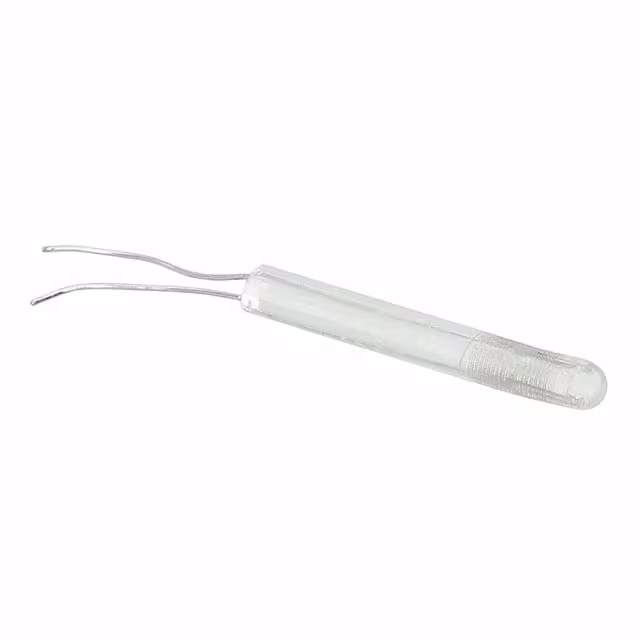

34015120SENSOR RTD 100OHM PROBE |
3,498 |
|
数据手册 |
- | Cylindrical Probe, Glass | Tray | Active | 100 Ohms | ±0.3% | Platinum (Pt) | -196°C ~ 400°C | Wire Leads | ±0.3°C | 3850ppm/°C | - | Free Hanging | - | - |
|
|
P0K1.216.2K.Y.300-4SENSOR RTD 100OHM PROBE |
1,649 |
|
数据手册 |
- | Probe | Bag | Active | 100 Ohms | - | Platinum (Pt) | -50°C ~ 200°C | Wire Leads | - | 3850ppm/°C | - | Free Hanging | - | - |
|
|
XE-4738-001PT100 WIREWOUND CLASS A 1.5X8MM |
4,749 |
|
数据手册 |
- | 2-SIP | Active | 100 Ohms | - | Platinum (Pt) | -200°C ~ 650°C | PC Pins | - | - | - | Through Hole | - | - | |
|

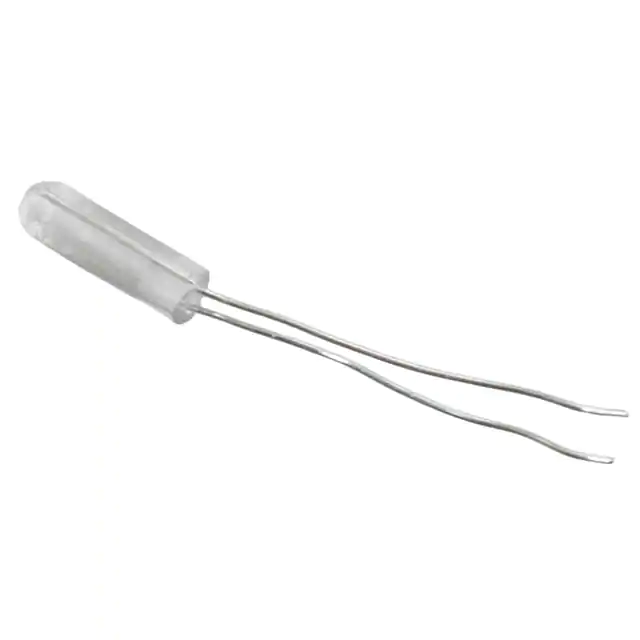

32205108SENSOR RTD 100OHM PROBE |
1,798 |
|
数据手册 |
- | Cylindrical Probe, Glass | Tray | Obsolete | 100 Ohms | ±0.3% | Platinum (Pt) | -196°C ~ 400°C | Wire Leads | ±0.3°C | 3850ppm/°C | - | Free Hanging | - | - |
|
|
32206152SENSOR RTD RADIAL |
1,746 |
|
数据手册 |
- | Radial | Bulk | Discontinued at Digi-Key | 100 Ohms | - | Platinum (Pt) | -100°C ~ 350°C | PC Pins | - | 3850ppm/°C | 1 mA | Through Hole | - | - |
|

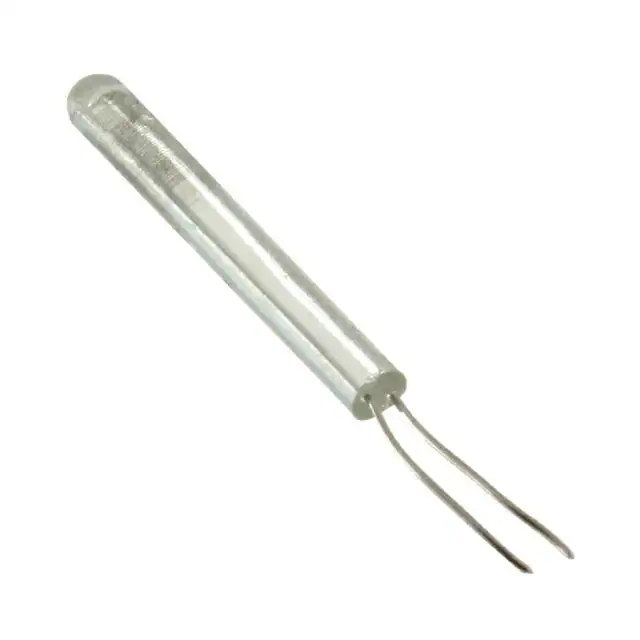

34015121SENSOR RTD 100OHM PROBE |
2,334 |
|
数据手册 |
- | Cylindrical Probe, Glass | Tray | Active | 100 Ohms | ±0.15% | Platinum (Pt) | -100°C ~ 250°C | Wire Leads | ±0.15°C | 3850ppm/°C | - | Free Hanging | - | - |
|
|
32206620SENSOR RTD RADIAL 4 LEAD |
1,434 |
|
数据手册 |
- | Radial - 4 Lead | Bulk | Discontinued at Digi-Key | 100 Ohms | - | Platinum (Pt) | -196°C ~ 660°C | PC Pins | - | 3850ppm/°C | 1 mA | Through Hole | - | - |
|
|
USW3866SENSOR RTD 1KOHM 0.12% RING LUG |
3,168 |
|
数据手册 |
USW | Ring Lug | Bag | Active | 1 kOhms | ±0.12% | - | - | - | ±0.3°C | 3850ppm/°C | - | User Defined | - | - |
|
PPG102A5SENSOR RTD 1KOHM 0.06% RADIAL |
2,537 |
|
数据手册 |
PPG | Radial | Bulk | Active | 1 kOhms | ±0.06% | Platinum (Pt) | -200°C ~ 600°C | PC Pins | ±0.15°C | 3850ppm/°C | 1 mA | Through Hole | - | - |
