钽 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T525Y337M010ATE035CAP TANT POLY 330UF 10V 2917 |
402 |
|
数据手册 |
KO-CAP® T525 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | Molded | 35mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | Y | - | General Purpose |
|
6TCE680MCAP TANT POLY 680UF 6.3V 2917 |
1,651 |
|
数据手册 |
POSCAP™ TC | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | D4 | - | General Purpose |
|
|
2R5TAE680MLCAP TANT POLY 680UF 2.5V 2917 |
7,405 |
|
数据手册 |
POSCAP™ TA | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 2.5 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | - | General Purpose |
|
|
6TCE470MCAP TANT POLY 470UF 6.3V 2917 |
1,970 |
|
数据手册 |
POSCAP™ TC | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | D4 | - | General Purpose |
|
TCJE157M016R0040ECAP TANT POLY 150UF 16V 2917 |
588 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 16 V | Molded | 40mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
V.JPG)
|
T520V107M006ATE015CAP TANT POLY 100UF 6.3V 2917 |
1,992 |
|
数据手册 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | Molded | 15mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
Y.JPG)
|
T520Y337M006ATE025CAP TANT POLY 330UF 6.3V 2917 |
1,450 |
|
数据手册 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | Y | - | General Purpose |
|
T545V227M010ATE045CAP TANT POLY 220UF 10V 2917 |
907 |
|
数据手册 |
KO-CAP® T545 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
|
|
T525D107M010AHE025CAP TANT POLY 100UF 10V 2917 |
710 |
|
数据手册 |
KO-CAP® T525 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 10 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T525D476M016AHE035CAP TANT POLY 47UF 16V 2917 |
1,280 |
|
数据手册 |
KO-CAP® T525 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | Molded | 35mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJC156M035R0200ECAP TANT POLY 15UF 35V 2312 |
331 |
|
数据手册 |
TCJ | 2312 (6032 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | 35 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.110" (2.80mm) | - | C | - | General Purpose |
|
T55D108M2R5C0007CAP TANT POLY 1000UF 2.5V 2917 |
900 |
|
数据手册 |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 2.5 V | Molded | 7mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
6TAE220MICAP TANT POLY 220UF 6.3V 2917 |
2,723 |
|
数据手册 |
POSCAP™ TA | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 18mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | D2E | - | General Purpose |
|
TCBY227M004CRSZ0700CAP TANT POLY 220UF 4V 2917 |
880 |
|
数据手册 |
TCB | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 4 V | Molded | 40mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | COTS | High Reliability |
|

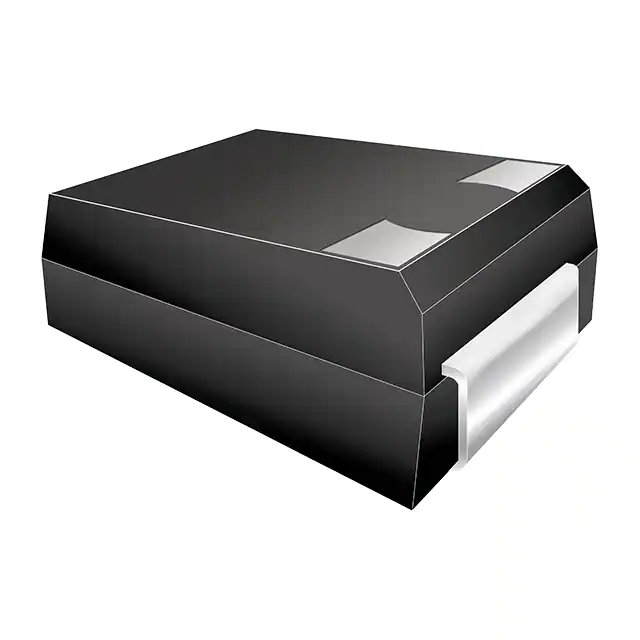

T522Y477M006ATE035CAP TANT POLY 470UF 6.3V 2917 |
430 |
|
数据手册 |
KO-CAP® T522 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | Molded | 35mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | Y | - | General Purpose |
|
|
T520V157M008ATE040CAP TANT POLY 150UF 8V 2917 |
174 |
|
数据手册 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 8 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
|
|
2R5TAE470MCAP TANT POLY 470UF 2.5V 2917 |
2,030 |
|
数据手册 |
POSCAP™ TA | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 2.5 V | Molded | 15mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | D2E | - | General Purpose |
|
|
ETCE1000MFCAP TANT POLY 1000UF 2.5V 2917 |
5,955 |
|
数据手册 |
POSCAP™ TC | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 2.5 V | Molded | 15mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | D4 | - | General Purpose |
|
|
10TAE150MLCAP TANT POLY 150UF 10V 2917 |
2,134 |
|
数据手册 |
POSCAP™ TA | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 10 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | - | General Purpose |
|
TCBD156M025CRSZ0700CAP TANT POLY 15UF 25V 2917 |
194 |
|
数据手册 |
TCB | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | 25 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | COTS | High Reliability |
