钽 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCBB226M006CRSZ0700CAP TANT POLY 22UF 6.3V 1411 |
1,786 |
|
数据手册 |
TCB | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 6.3 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | COTS | High Reliability |
|
T521V686M016ATE040CAP TANT POLY 68UF 16V 2917 |
1,445 |
|
数据手册 |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 16 V | Molded | 40mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
TCJY477M004R0040CAP TANT POLY 470UF 4V 2917 |
2,793 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 4 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
|
TCJY337M004R0040CAP TANT POLY 330UF 4V 2917 |
1,547 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 4 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
|
TCJY477M002R0040CAP TANT POLY 470UF 2.5V 2917 |
756 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 2.5 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
T51D226M025C0100CAP TANT POLY 22UF 25V 2917 |
705 |
|
数据手册 |
T51 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 25 V | Molded | 100mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
TCJD227M006R0050CAP TANT POLY 220UF 6.3V 2917 |
965 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 50mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
2R5TPE330MCCAP TANT POLY 330UF 2.5V 2917 |
5,670 |
|
数据手册 |
POSCAP™ TPE | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 2.5 V | Molded | 12mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | D2E | - | General Purpose |
|
|
T521V226M020ATE090CAP TANT POLY 22UF 20V 2917 |
984 |
|
数据手册 |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 20 V | Molded | 90mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
|
T51D336M025C0100CAP TANT POLY 33UF 25V 2917 |
766 |
|
数据手册 |
T51 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | Molded | 100mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
T55V227M010C0018CAP TANT POLY 220UF 10V 2917 |
470 |
|
数据手册 |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 18mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
|
TCBB476M006CRSZ0700CAP TANT POLY 47UF 6.3V 1411 |
3,350 |
|
数据手册 |
TCB | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | COTS | High Reliability |
|
2R5TAE220MCAP TANT POLY 220UF 2.5V 2917 |
1,800 |
|
数据手册 |
POSCAP™ TA | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 2.5 V | Molded | 9mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | D2E | - | General Purpose |
D.JPG)
|
T520D337M004ATE015CAP TANT POLY 330UF 4V 2917 |
788 |
|
数据手册 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 4 V | Molded | 15mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
2R5TPE470MFCAP TANT POLY 470UF 2.5V 2917 |
6,567 |
|
数据手册 |
POSCAP™ TPE | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 2.5 V | Molded | 15mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | D2E | - | General Purpose |
|

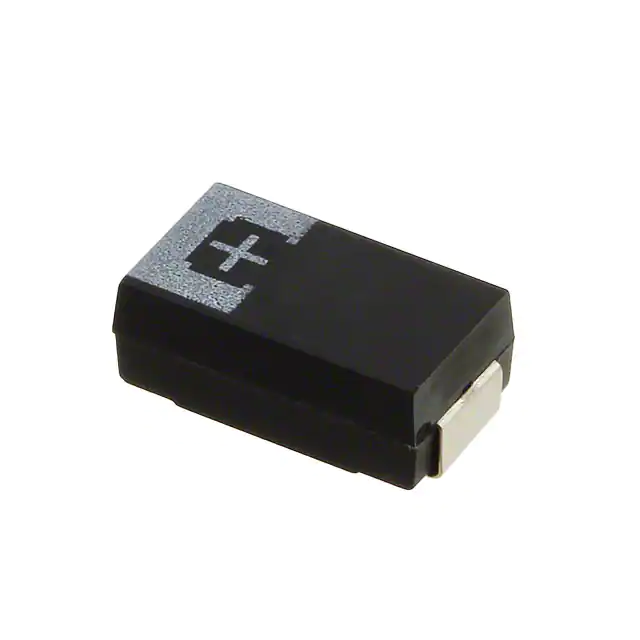

4TPB330MLCAP TANT POLY 330UF 4V 2917 |
3,497 |
|
数据手册 |
POSCAP™ TPB | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 4 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | - | General Purpose |
|
|
TCJY337M006R0040ECAP TANT POLY 330UF 6.3V 2917 |
3,292 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
6TPF220MPLCAP TANT POLY 220UF 6.3V 2917 |
2,255 |
|
数据手册 |
POSCAP™ TPF | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | - | - |
.jpg)
|
TCQD686M010R0040ECAP TANT POLY 68UF 10V 2917 |
998 |
|
数据手册 |
TCQ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 10 V | Molded | 40mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
TCJY106M035R0070ECAP TANT POLY 10UF 35V 2917 |
1,417 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 35 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
