钽 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25TQC22MYFBCAP TANT POLY 22UF 25V 1411 |
541 |
|
数据手册 |
POSCAP™ TQC | 1411 (3528 Metric), 1210 | Tape & Reel (TR) | Active | 22 µF | ±20% | 25 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.079" (2.00mm) | - | B2 | - | General Purpose |
|
TCJD227M010R0050ECAP TANT POLY 220UF 10V 2917 |
455 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 50mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJD107M010R0055CAP TANT POLY 100UF 10V 2917 |
2,000 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 10 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
T599D157M006ATE025CAP TANT POLY 150UF 6.3V 2917 |
1,000 |
|
数据手册 |
KO-CAP® T599 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 150°C | 1000 Hrs @ 150°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D | AEC-Q200 | Automotive |
|
|
TCJY476M016R0045CAP TANT POLY 47UF 16V 2917 |
3,703 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
T521V476M016ATE070CAP TANT POLY 47UF 16V 2917 |
1,625 |
|
数据手册 |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
T55V156M035C0125CAP TANT POLY 15UF 35V 2917 |
2,336 |
|
数据手册 |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | 35 V | Molded | 125mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
V.JPG)
|
T520V337M004ATE040CAP TANT POLY 330UF 4V 2917 |
2,000 |
|
数据手册 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 4 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
U.JPG)
|
T520U476M010ATE055CAP TANT POLY 47UF 10V 2312 |
5,505 |
|
数据手册 |
KO-CAP® T520 | 2312 (6032 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 10 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.059" (1.50mm) | - | U | - | General Purpose |
|
|
T520V157M010ATE040CAP TANT POLY 150UF 10V 2917 |
4,927 |
|
数据手册 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 10 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
|

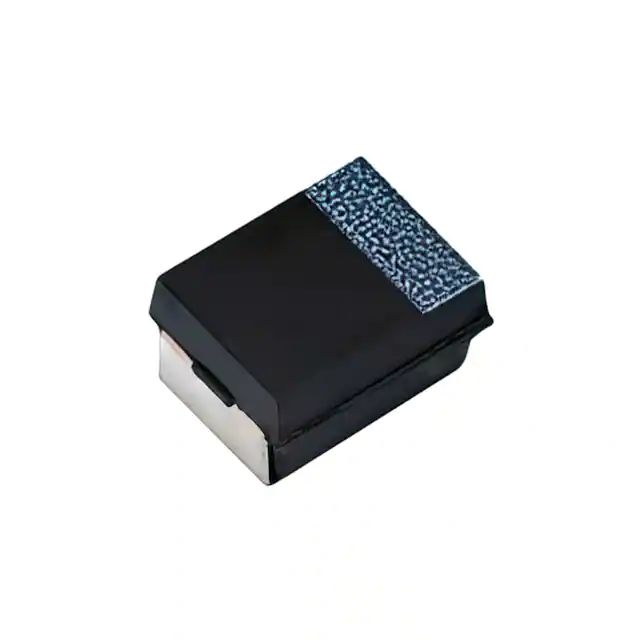

T51D106M025C0120CAP TANT POLY 10UF 25V 2917 |
846 |
|
数据手册 |
T51 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 25 V | Molded | 120mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
T521B156M020ATE090CAP TANT POLY 15UF 20V 1411 |
595 |
|
数据手册 |
KO-CAP® T521 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | 20 V | Molded | 90mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.079" (2.00mm) | - | B | - | General Purpose |
|
|
TCJB226M016R0150ECAP TANT POLY 22UF 16V 1210 |
2,061 |
|
数据手册 |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 16 V | Molded | 150mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
T520V337M004ATE025CAP TANT POLY 330UF 4V 2917 |
1,752 |
|
数据手册 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 4 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
|
|
TCJY227M006R0025CAP TANT POLY 220UF 6.3V 2917 |
1,210 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
T591D686M020ATE050CAP TANT POLY 68UF 20V 2917 |
793 |
|
数据手册 |
KO-CAP® T591 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 20 V | Molded | 50mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
T55D477M004C0025CAP TANT POLY 470UF 4V 2917 |
757 |
|
数据手册 |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 4 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
25TQC22MYFTCAP TANT POLY 22UF 25V 2917 |
9,401 |
|
数据手册 |
POSCAP™ TQC | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 25 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | D15 | - | General Purpose |
D.JPG)
|
T520D227M006ATE018CAP TANT POLY 220UF 6.3V 2917 |
1,542 |
|
数据手册 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 18mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
10TPC68MCAP TANT POLY 68UF 10V 2917 |
4,801 |
|
数据手册 |
POSCAP™ TPC | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 10 V | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | D2 | - | General Purpose |
