钽 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T520B107M006ATE0707224100.UF 6.0V |
2,814 |
|
数据手册 |
T520 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.079" (2.00mm) | - | B | - | - |
|
T55B157M004C0040CAP TANT POLY 150UF 4V 1411 |
7,049 |
|
数据手册 |
vPolyTan™ T55 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 4 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
-1206-pkg.jpg)
|
TCOA0G336M8RCAP TANT POLY 33UF 4V 1206 |
8,807 |
|
数据手册 |
TCO | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 4 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
|
T55B227M004C0055CAP TANT POLY 220UF 4V 1411 |
4,885 |
|
数据手册 |
vPolyTan™ T55 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 4 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
T55B157M2R5C0070CAP TANT POLY 150UF 2.5V 1411 |
4,006 |
|
数据手册 |
vPolyTan™ T55 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 2.5 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
T55B157M004C0045CAP TANT POLY 150UF 4V 1411 |
3,376 |
|
数据手册 |
vPolyTan™ T55 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 4 V | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
T55B157M004C0055CAP TANT POLY 150UF 4V 1411 |
2,863 |
|
数据手册 |
vPolyTan™ T55 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 4 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
T520A226M006AHE100CAP TANT SMD POLYMER |
2,186 |
|
数据手册 |
T520 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 6.3 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
|
TCJH157M006S0200CAP TANT POLY 150UF 6.3V 1210 |
8,343 |
|
数据手册 |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 6.3 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.059" (1.50mm) | - | H | - | General Purpose |
B.JPG)
|
T520B476M006ATE0707280CAP TANT POLY 47UF 6.3V 1411 |
9,156 |
|
数据手册 |
KO-CAP® T520 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.079" (2.00mm) | - | B | - | General Purpose |
|
|
T520A106M010ATE080791910.0UF 10.0V |
2,752 |
|
数据手册 |
KO-CAP® T520 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 10 V | Molded | 80mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
TCJB475M025R0100ECAP TANT POLY 4.7UF 25V 1210 |
8,293 |
|
数据手册 |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 25 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
TCJB156M025S0100CAP TANT POLY 15UF 25V 1210 |
7,208 |
|
数据手册 |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | 25 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
T591B225M035ATE200CAP TANT POLY 2.2UF 35V 1411 |
9,161 |
|
数据手册 |
KO-CAP® T591 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 35 V | Molded | 200mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
T520A336M006AHE080CAP TANT SMD POLYMER |
6,183 |
|
数据手册 |
T520 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 6.3 V | Molded | 80mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
|
T520B107M006ATE0707706100.UF 6.0V |
9,432 |
|
数据手册 |
T520 | 1411 (3528 Metric) | Box | Active | 100 µF | ±20% | 6.3 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.079" (2.00mm) | - | B | - | - |
|
|
T520A107M006ATE0707028100.UF 6.0V |
2,610 |
|
数据手册 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F380J106MMACAP TANT POLY 10UF 6.3V 0603 |
6,756 |
|
数据手册 |
F38 Frameless™ | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 6.3 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.063" L x 0.033" W (1.60mm x 0.85mm) | 0.035" (0.90mm) | - | M | - | General Purpose |
|

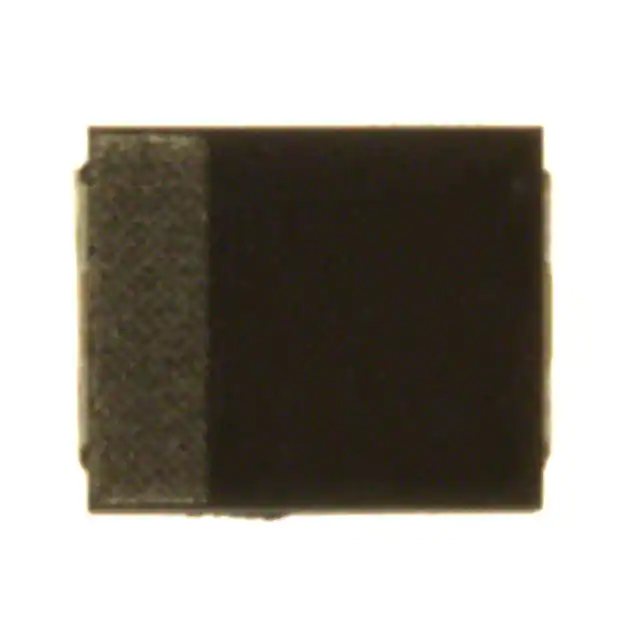

F310E107MBACAP TANT POLY 100UF 2.5V 1411 |
7,948 |
|
数据手册 |
F31 | 1411 (3528 Metric) | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 2.5 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.134" L x 0.110" W (3.40mm x 2.80mm) | 0.047" (1.20mm) | - | B | - | General Purpose |
|
|
TCJN106M006S0500CAP TANT POLY 10UF 6.3V 0805 |
9,476 |
|
数据手册 |
TCJ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 6.3 V | Molded | 500mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.081" L x 0.051" W (2.05mm x 1.30mm) | 0.039" (1.00mm) | - | N | - | General Purpose |
