步进电机
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 线圈类型 | 额定电压 | 电流额定值（安培） | 每转步数 | 步进角度 | 精度 | 保持扭矩（oz-in / mNm） | 尺寸 / 尺寸 | NEMA 框架尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 工作温度 | 线圈电阻 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISMD23E2-240A-M12PAMCI MOTOR+DRIVE+CONTROLLER |
4,514 |
|
数据手册 |
ISMD23E | Bulk | Active | Hybrid | Bipolar | 24 ~ 48VDC | 3.4 A | 200.0 | 1.8° | - | 240 / 1695 | Square - 2.250" x 2.250" (57.15mm x 57.15mm) | 23 | 0.250" (6.35mm) | 0.810" (20.57mm) | 1.856" (47.14mm) | Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
|
|
ISMD34E2-450E-M12SAMCI MOTOR+DRIVE+CONTROLLER |
2,892 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISMD23E2-240E-M12-GB10AMOTOR+DRIVE+CONTROLLER 10:1GB |
3,917 |
|
数据手册 |
ISMD23E | Bulk | Active | Hybrid | Bipolar | 24 ~ 48VDC | 3.4 A | 200.0 | 1.8° | - | 240 / 1695 | Square - 2.250" x 2.250" (57.15mm x 57.15mm) | 23 | 0.250" (6.35mm) | 0.810" (20.57mm) | 1.856" (47.14mm) | Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
|
|
ISMD34E2-850E-M12SAMCI MOTOR+DRIVE+CONTROLLER |
1,912 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISMD34E2-450A-M12SSIZE34 CONT+DRIVE+MOTOR 450OZ |
4,807 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISMD34E2-850A-M12SSIZE34 CONT+DRIVE+MOTOR 850OZ |
1,303 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISMD23E2-130A-M12S-GB5ACONT+DRIVE+MOTOR 130OZ GEARBOX |
3,092 |
|
数据手册 |
ISMD23E | Bulk | Active | Hybrid | Bipolar | 24 ~ 48VDC | 3.4 A | 200.0 | 1.8° | - | 130 / 918 | Square - 2.250" x 2.250" (57.15mm x 57.15mm) | 23 | 0.250" (6.35mm) | 0.810" (20.57mm) | 1.856" (47.14mm) | Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
|
|
ISMD34E2-1100E-M12SAMCI MOTOR+DRIVE+CONTROLLER |
2,551 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISMD34E2-1100A-M12SAMCI MOTOR+DRIVE+CONTROLLER |
2,478 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISMD34E2-850-M12S-G06AMCI MOTOR+DRIVE+CONTROLLER |
3,741 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISMD34E2-850E-M12S-G06AMCI MOTOR+DRIVE+CONTROLLER |
2,271 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISMD34E2-850E-M12S-G09MOTOR+DRIVE+CONTROLLER 10:1GB |
3,130 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISMD34E2-450A-M12S-GT10AMOTOR+DRIVE+CONTROLLER 10:1GB |
3,840 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

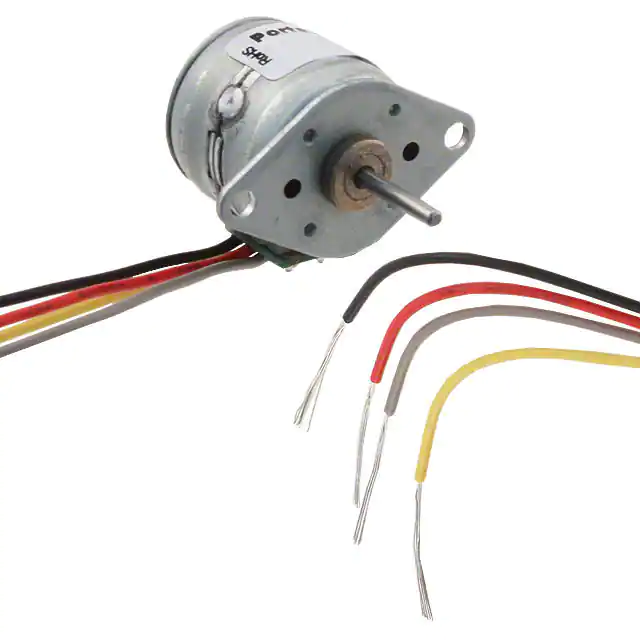

15M020D1B-NSTEPPER MOTOR PM BIPOLAR 5V |
4,809 |
|
数据手册 |
15M | Bulk | Active | Permanent Magnet | Bipolar | 5VDC | 125 mA | 20.0 | 18° | - | 0.55 / 3.9 | Round - 0.610" Dia (15.50mm) | - | 0.059" (1.50mm) | 0.394" (10.00mm) | 0.787" (20.00mm) | Wire Leads | -20°C ~ 70°C | 40 Ohms | Round Shaft |
|

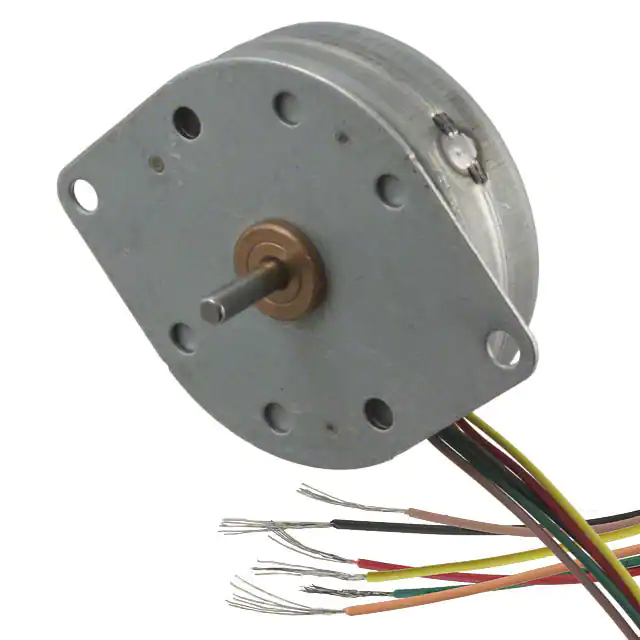

42S048D2USTEPPER MOTOR PM UNIPOLAR 12V |
3,524 |
|
数据手册 |
42S | Bulk | Active | Permanent Magnet | Unipolar | 12VDC | 160 mA | 48.0 | 7.5° | ±15% | 6.3 / 44.5 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | 0.450" (11.43mm) | 1.950" (49.48mm) | Wire Leads | -20°C ~ 70°C | 75 Ohms | Round Shaft |
|

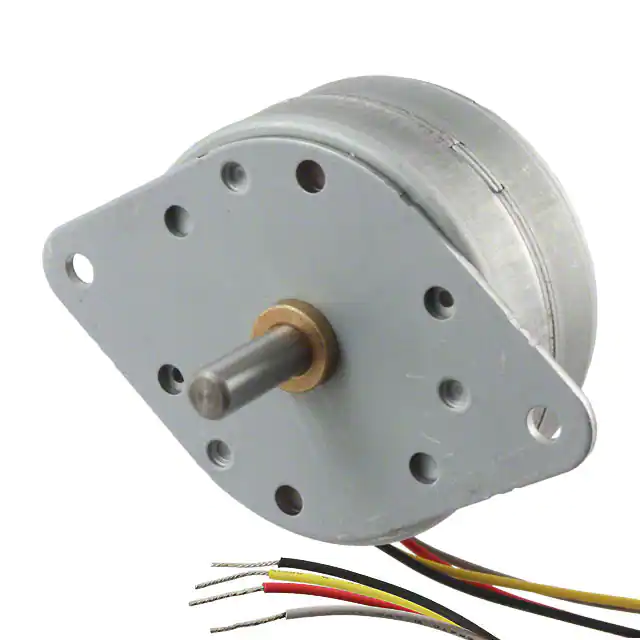

55M048D1BSTEPPER MOTOR PM BIPOLAR 5V |
2,195 |
|
数据手册 |
55M | Bulk | Obsolete | Permanent Magnet | Bipolar | 5VDC | 960 mA | 48.0 | 7.5° | ±15% | 27.6 / 195 | Round - 2.170" Dia (55.12mm) | - | 0.250" (6.35mm) | 0.750" (19.05mm) | 2.630" (66.68mm) | Wire Leads | -20°C ~ 70°C | 5.2 Ohms | Round Shaft |
|
55M048D2USTEPPER MOTOR PM UNIPOLAR 12V |
3,403 |
|
数据手册 |
55M | Bulk | Obsolete | Permanent Magnet | Unipolar | 12VDC | 400 mA | 48.0 | 7.5° | ±15% | 23 / 163 | Round - 2.170" Dia (55.12mm) | - | 0.250" (6.35mm) | 0.750" (19.05mm) | 2.630" (66.68mm) | Wire Leads | -20°C ~ 70°C | 30 Ohms | Round Shaft |
|

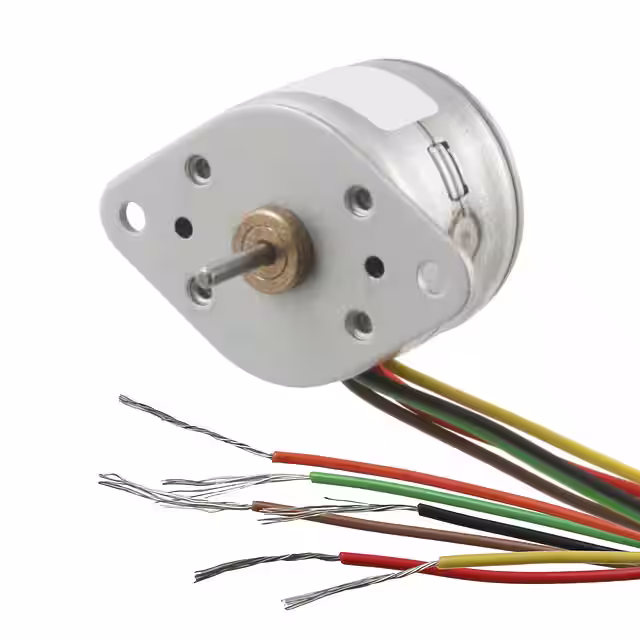

20M024D1USTEPPER MOTOR PM UNIPOLAR 5V |
1,432 |
|
数据手册 |
20M | Bulk | Active | Permanent Magnet | Unipolar | 5VDC | 250 mA | 24.0 | 15° | ±15% | 1.1 / 7.77 | Round - 0.807" Dia (20.50mm) | - | 0.059" (1.50mm) | 0.335" (8.50mm) | 0.984" (25.00mm) | Wire Leads | -20°C ~ 70°C | 20 Ohms | Round Shaft |
|
55M048D1USTEPPER MOTOR PM UNIPOLAR 5V |
3,949 |
|
数据手册 |
55M | Bulk | Obsolete | Permanent Magnet | Unipolar | 5VDC | 960 mA | 48.0 | 7.5° | ±15% | 23 / 163 | Round - 2.170" Dia (55.12mm) | - | 0.250" (6.35mm) | 0.750" (19.05mm) | 2.630" (66.68mm) | Wire Leads | -20°C ~ 70°C | 5.2 Ohms | Round Shaft |
|
26M048B2U-V31STEPPER MOTOR PM GEARED UNI 12V |
2,452 |
|
数据手册 |
26M-V | Bulk | Active | Permanent Magnet Gear Motor | Unipolar | 12VDC | 110 mA | 1440.0 | 0.25° | - | 1.3 / 9.2 | Round - 1.030" Dia (26.16mm) | - | 0.125" (3.18mm) | 0.432" (10.97mm) | 1.180" (29.87mm) | Wire Leads | -20°C ~ 70°C | 110 Ohms | Round Shaft |
