步进电机
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 线圈类型 | 额定电压 | 电流额定值（安培） | 每转步数 | 步进角度 | 精度 | 保持扭矩（oz-in / mNm） | 尺寸 / 尺寸 | NEMA 框架尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 工作温度 | 线圈电阻 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH2145-5611STEP, F2, SQ.14, 1.8, , , BIPOLA Sanyo Denki SanMotion Products |
1,298 |
|
数据手册 |
SH | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 400 mA | 200.0 | 1.8° | - | 1.42 / 10 | Square - 0.551" x 0.551" (14.00mm x 14.00mm) | - | 0.157" (4.00mm) | 0.591" (15.00mm) | 0.453" (11.50mm) | Wire Leads | -10°C ~ 50°C | 19 Ohms | - |
|
|
SM2862-5122STEP, F2, SQ.86, 1.8, HALF INCH Sanyo Denki SanMotion Products |
4,703 |
|
数据手册 |
- | Box | Active | Hybrid, Dual Shaft | Bipolar | 100VAC | 4 A | 200.0 | 1.8° | - | 906.3 / 6400 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | 34 | 0.500" (12.70mm) | 1.181" (30.00mm) | 2.740" (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.8 Ohms | - |
|

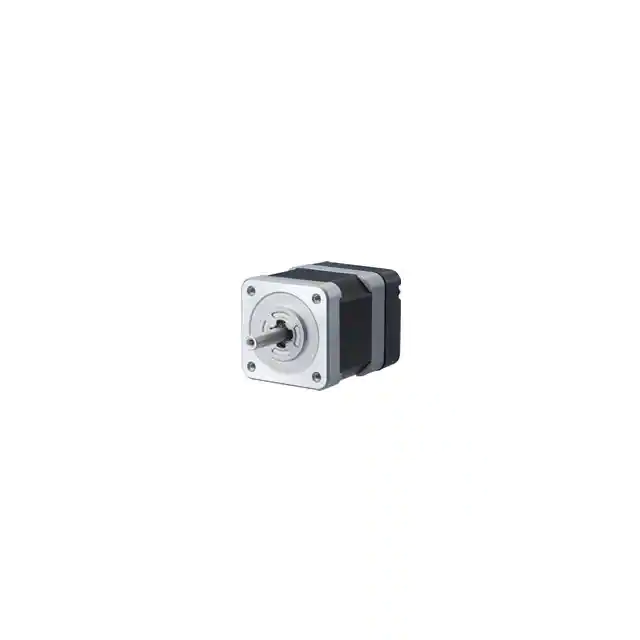

PBM423DXK50PB, PB, SQ.42, FOR PB4D003P340, Sanyo Denki SanMotion Products |
2,583 |
|
数据手册 |
PBM | Box | Active | Hybrid | Bipolar | 48VDC | - | - | - | - | 55.23 / 390 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.236" (6.00mm) | 0.811" (20.60mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 40°C | - | - |
|
|
SM2863-5252STEP, F2, SQ.86, 1.8, HALF INCH Sanyo Denki SanMotion Products |
3,066 |
|
数据手册 |
- | Box | Active | Hybrid | Bipolar | 100VAC | 6 A | 200.0 | 1.8° | - | 1275 / 9000 | Square - 3.386" x 3.386" (86.00mm x 86.00mm) | 34 | 0.500" (12.70mm) | 1.181" (30.00mm) | 2.740" (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.46 Ohms | - |
|
SF2421-10B11STEP, F2, SQ.42, 1.8, , , BIPOLA Sanyo Denki SanMotion Products |
2,805 |
|
数据手册 |
SF | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 41.07 / 290 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -10°C ~ 50°C | 3.6 Ohms | - |
|
|
SM2561C60B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE Sanyo Denki SanMotion Products |
2,688 |
|
数据手册 |
SM | Bulk | Active | Hybrid | Bipolar | 24VDC | 6 A | 200.0 | 1.8° | - | 106.2 / 750 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | - | 0.14 Ohms | - |
|
|
SM2561C40B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE Sanyo Denki SanMotion Products |
1,193 |
|
数据手册 |
SM | Bulk | Active | Hybrid | Bipolar | 24VDC | 4 A | 200.0 | 1.8° | - | 106.2 / 750 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | - | 0.28 Ohms | - |
|
|
SM2562C60B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE Sanyo Denki SanMotion Products |
3,992 |
|
数据手册 |
SM | Bulk | Active | Hybrid | Bipolar | 24VDC | 6 A | 200.0 | 1.8° | - | 198.3 / 1400 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | - | 0.18 Ohms | - |
|
|
SM2562C20B41F2, 56 SQ., 1.8, BIPOLAR/SINGLE Sanyo Denki SanMotion Products |
2,545 |
|
数据手册 |
SM | Bulk | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | - | 198.3 / 1400 | Square - 2.205" x 2.205" (56.00mm x 56.00mm) | - | 0.315" (8.00mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Connector | - | 1.5 Ohms | - |
|

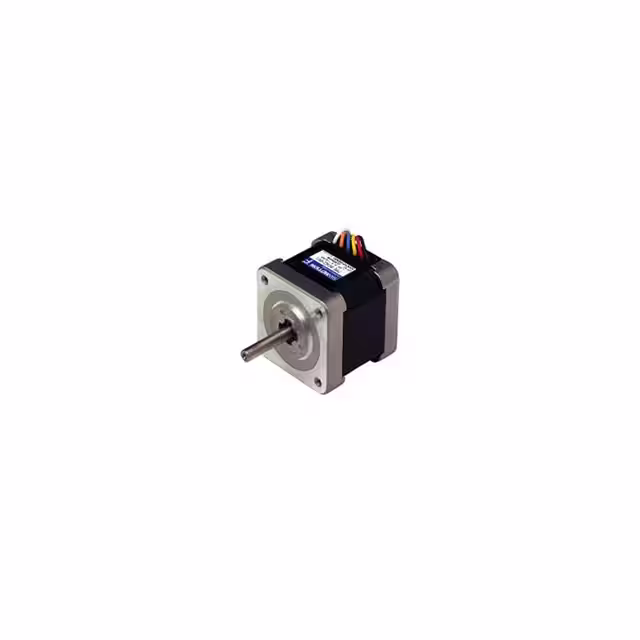

SH1422-5241STEP, F2, SQ.42, 0.9, , , BIPOLA Sanyo Denki SanMotion Products |
2,983 |
|
数据手册 |
SH | Box | Active | Hybrid | Bipolar | 24VDC | 2 A | 400.0 | 0.9° | - | 48.15 / 340 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 1.05 Ohms | - |
