步进电机
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 线圈类型 | 额定电压 | 电流额定值（安培） | 每转步数 | 步进角度 | 精度 | 保持扭矩（oz-in / mNm） | 尺寸 / 尺寸 | NEMA 框架尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 工作温度 | 线圈电阻 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
42L048D1USTEPPER MOTOR PM UNIPOLAR 5V |
1,391 |
|
数据手册 |
42L | Bulk | Active | Permanent Magnet | Unipolar | 5VDC | 960 mA | 48.0 | 7.5° | ±15% | 15.1 / 106 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | 0.450" (11.43mm) | 1.950" (49.48mm) | Wire Leads | -20°C ~ 70°C | 5.2 Ohms | Round Shaft |
|
17PM-K440CN05CNMOTOR, STEP, 1.8 DEG, NEMA 17 |
1,798 |
|
数据手册 |
- | Tray | Active | Hybrid | - | 2.4V | 2 A | - | 1.8° | - | 63.7 / 450 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | - | 0.490" (12.45mm) | 1.220" (31.00mm) | Connector | - | - | - |
|
|
11PM-K142USTEP MOTOR HYBRID UNIPOLAR 24V |
4,963 |
|
数据手册 |
11PM-K | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.1 A | 200.0 | 1.8° | - | 14.87 / 105 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | - | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.910" (23.11mm) | Connector | - | 2.9 Ohms | - |
|
|
11PM-K241USTEP MOTOR HYBRID UNIPOLAR 24V |
1,814 |
|
数据手册 |
11PM-K | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.1 A | 200.0 | 1.8° | - | 20.53 / 145 | Square - 1.102" x 1.102" (28.00mm x 28.00mm) | - | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.910" (23.11mm) | Connector | - | 3.4 Ohms | - |
|
WO-4109Y-51STEPPER MOTOR |
4,117 |
|
数据手册 |
- | Tray | Active | - | Bipolar | 24VDC | 600 mA | 400.0 | 0.9° | - | 6 / 42.37 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.591" (15.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 5 Ohms | Round Shaft |
|
WO-417-09-03STEPPER MOTOR |
2,147 |
|
数据手册 |
- | Tray | Active | - | Bipolar | 24VDC | 1.2 A | 400.0 | 0.9° | - | 12 / 84.74 | Square - 1.650" L x 1.650" W (41.90mm x 41.90mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 3 Ohms | Round Shaft |
|
|
WO-417-09-18STEPPER MOTOR |
4,696 |
|
数据手册 |
- | Tray | Active | - | Bipolar | 24VDC | 600 mA | 400.0 | 0.9° | - | 12 / 84.74 | Square - 1.650" L x 1.650" W (41.90mm x 41.90mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 10 Ohms | Round Shaft |
|
17PM-K455-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V |
1,343 |
|
数据手册 |
17PM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 800 mA | 200.0 | 1.8° | ±5% | 48.15 / 340 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.984" (25.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 7.3 Ohms | Flatted Shaft |
|
17PY-Z444-00VSSTEP MOTOR HYBRID UNIPOLAR 24V |
2,295 |
|
数据手册 |
17PY | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.2 A | 400.0 | 0.9° | ±5% | 46.74 / 330 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 3.3 Ohms | Flatted Shaft |
|

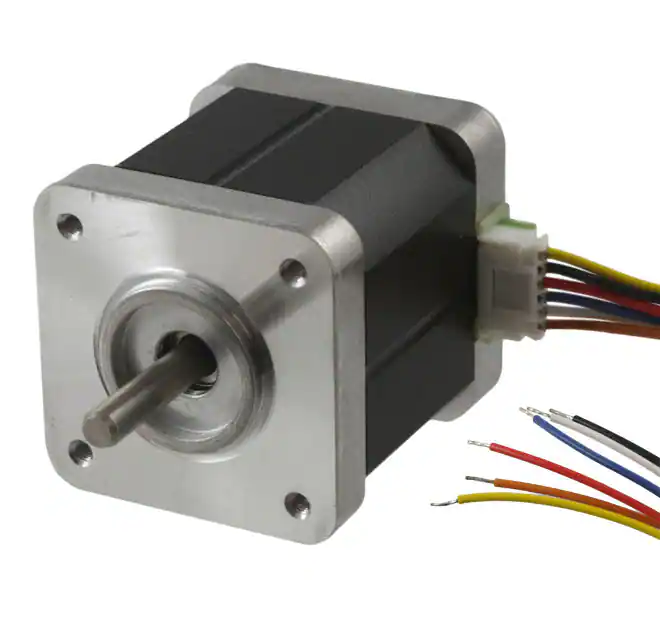

17PY-Z444-99VSSTEP MOTOR HYBRID DUAL SHAFT 24V |
3,439 |
|
数据手册 |
17PY | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.2 A | 400.0 | 0.9° | ±5% | 46.74 / 330 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -10°C ~ 50°C | 3.3 Ohms | Flatted Shaft |
|
23KM-K251-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
2,335 |
|
数据手册 |
23KM | Bulk | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.8 A | 200.0 | 1.8° | ±5% | 67.98 / 480 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 1.5 Ohms | Flatted Shaft |
|
|
11PM-K043-UPVSSTEP MOTOR HYBRID UNIPOLAR 24V |
2,173 |
|
数据手册 |
11PM-K | Bulk | Active | Hybrid | Unipolar | 24VDC | 1.1 A | 200.0 | 1.8° | - | 10.62 / 75 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | - | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.910" (23.11mm) | Connector | - | 2.5 Ohms | - |
|
23KM-K748-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
3,978 |
|
数据手册 |
23KM | Bulk | Active | Hybrid | Unipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 2.3 Ohms | Flatted Shaft |
|

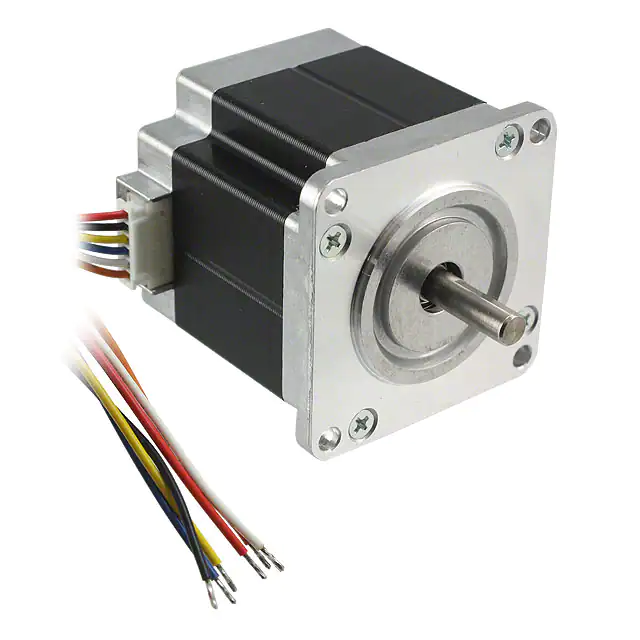

23KM-K066-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
4,756 |
|
数据手册 |
23KM | Bulk | Active | Hybrid | Unipolar | 24VDC | 1 A | 200.0 | 1.8° | ±5% | 127.47 / 900 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 7 Ohms | Flatted Shaft |
|
|
103H5210-52XB12STEP, F2 MOTOR, SQ.42, 2 PHASE S |
2,561 |
|
数据手册 |
- | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 72.22 / 510 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 4.8 Ohms | - |
|
|
103H7822-25XB12STEP, F2 MOTOR, SQ.60, 2 PHASE S |
4,802 |
|
数据手册 |
- | Box | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 4.4 A | 200.0 | 1.8° | - | 155.8 / 1100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 17 | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.856" (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.4 Ohms | - |
|
|
PD60-4-1378-CANOPENPANDRIVE NEMA24, 48V, 3.1NM |
2,259 |
|
数据手册 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 4.17VDC | 2.8 A | 200.0 | 1.8° | ±5% | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 1.5 Ohms | Integrated Controller, Flatted Shaft |
|
PD57-1-1378-TMCLPANDRIVE NEMA23, 48V, 0.55NM |
2,042 |
|
数据手册 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2VDC | 2.8 A | 200.0 | 1.8° | ±5% | 77.89 / 550 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.7 Ohms | Integrated Controller, Flatted Shaft |
|

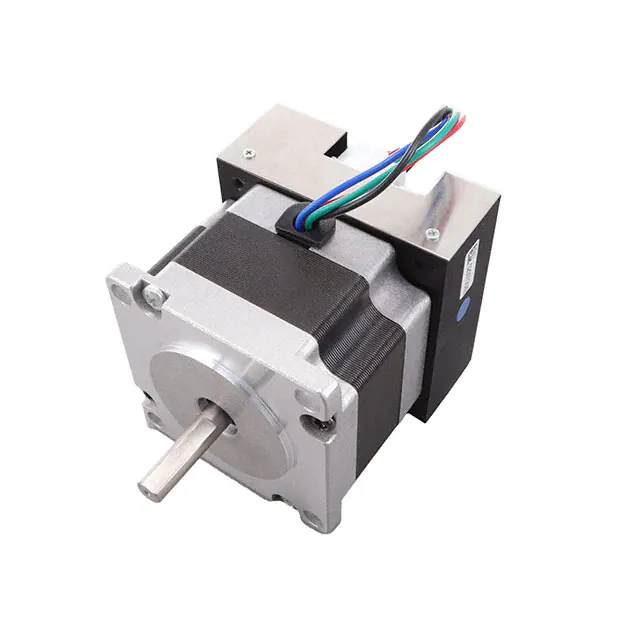

PD57-1-1378-CANOPENPANDRIVE NEMA23, 48V, 0.55NM |
1,252 |
|
数据手册 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2VDC | 2.8 A | 200.0 | 1.8° | ±5% | 77.89 / 550 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft |
|
PD60-3-1378-CANOPENPANDRIVE NEMA24, 48V, 2.1NM |
4,322 |
|
数据手册 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 3.36VDC | 2.8 A | 200.0 | 1.8° | ±5% | 297.4 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 1.2 Ohms | Integrated Controller, Flatted Shaft |
