特种电阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 应用 | 成分 | 电阻 | 阻抗 | 容差 | 功率 (W) | 温度系数 | 工作温度 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IS175B50RKE175 W 50 OHMS 10% |
4,073 |
|
数据手册 |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 50 Ohms | - | ±10% | 175W | ±250ppm/°C | - | Surface Mount |
|
|
IS175B150KE175 W 150 OHMS 10% |
3,004 |
|
数据手册 |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 150 Ohms | - | ±10% | 175W | ±250ppm/°C | - | Surface Mount |
|
|
IS175A10R0KE175 W 10 OHMS 10% |
1,802 |
|
数据手册 |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 10 Ohms | - | ±10% | 175W | ±250ppm/°C | - | Surface Mount |
|
|
IS270B6R0KE270 W 6 OHMS 10% |
2,996 |
|
数据手册 |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 6 Ohms | - | ±10% | 270W | ±250ppm/°C | - | Surface Mount |
|
|
IS175C250RKE175 W 250 OHMS 10% |
4,577 |
|
数据手册 |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 250 Ohms | - | ±10% | 175W | ±250ppm/°C | - | Surface Mount |
|
|
GR7B10KJESILICONE COATED RADIAL, 6.5W |
4,898 |
|
数据手册 |
G | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 10 kOhms | - | ±5% | 6.5W | ±100ppm/°C | -55°C ~ 200°C | - |
|
|
IS200C75RKE200 W 75 OHMS 10% |
1,757 |
|
数据手册 |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 75 Ohms | - | ±10% | 200W | ±250ppm/°C | - | Surface Mount |
|
|
IS175A100KE175 W 100 OHMS 10% |
1,092 |
|
数据手册 |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 100 Ohms | - | ±10% | 175W | ±250ppm/°C | - | Surface Mount |
|
|
IS200B25RKE200 W 25 OHMS 10% |
3,192 |
|
数据手册 |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 25 Ohms | - | ±10% | 200W | ±250ppm/°C | - | Surface Mount |
|
|
GW13J22K0E22KCAPACITOR MOUNT 5% |
3,683 |
|
数据手册 |
G | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 22 kOhms | - | ±5% | 13W | ±100ppm/°C | -55°C ~ 200°C | Capacitor, 31.8mm Pitch |
|
|
IS175C500RKE175 W 500 OHMS 10% |
3,838 |
|
数据手册 |
IS | Bulk | Active | Bleeder, Braking | Heatsinkable | Thick Film | 500 Ohms | - | ±10% | 175W | ±250ppm/°C | - | Surface Mount |
|
|
GW13F24K0E24K CAPACITOR MOUNT 1% |
3,141 |
|
数据手册 |
G | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 24 kOhms | - | ±1% | 13W | ±100ppm/°C | -55°C ~ 200°C | Capacitor, 31.8mm Pitch |
|
|
SHD1-500C060DEHIGH CURRENT SHUNT 500AMPS |
3,191 |
|
数据手册 |
S | Bulk | Active | Shunt, Battery | - | - | - | - | ±0.5% | - | - | - | Screw Mount |
|
|
SHT1-500C100DEHIGH CURRENT SHUNT 500 AMPS |
1,532 |
|
数据手册 |
S | Bulk | Active | Shunt, Battery | - | - | - | - | ±0.5% | - | - | - | Screw Mount |
|

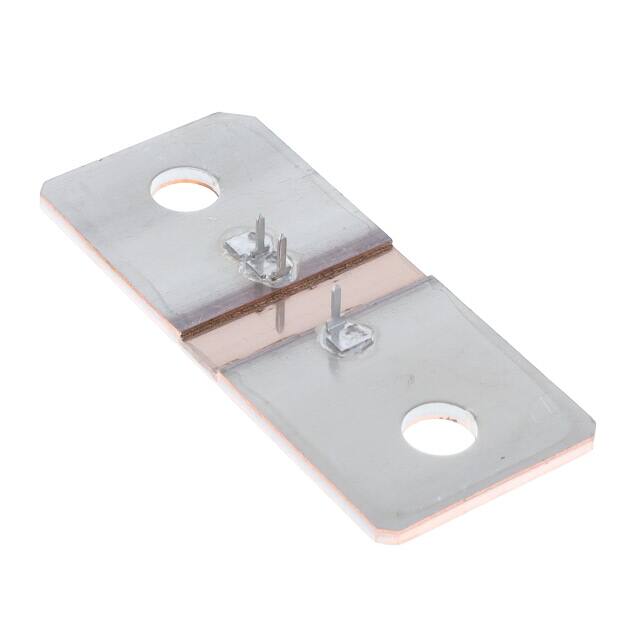

WSBS8536L0500JK6050 UOHMS 5% 50W SHUNT, BATTERY S |
1,090 |
|
数据手册 |
WSBS8536 | Bulk | Active | Shunt, Battery | - | Metal Element | 50 µOhms | - | ±5% | 50W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8536L0500JK8050 UOHMS 5% 50W SHUNT, BATTERY S |
3,854 |
|
数据手册 |
WSBS8536 | Bulk | Active | Shunt, Battery | - | Metal Element | 50 µOhms | - | ±5% | 50W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
VRH320 100R K320 WATTS VARIABLE 100 OHMS 10% |
3,000 |
|
数据手册 |
VRH320 | Box | Obsolete | - | - | Metal Element | 100 Ohms | - | ±10% | - | - | - | Screw Mount |
|
VRH160 1R K160 WATTS VARIABLE 1 OHM 10% |
2,439 |
|
数据手册 |
VRH160 | Box | Obsolete | - | - | Metal Element | 1 Ohms | - | ±10% | - | - | - | Screw Mount |
|
|
VRH160 1K K160 WATTS VARIABLE 1 KILOOHM 10% |
2,197 |
|
数据手册 |
VRH160 | Box | Obsolete | - | - | Metal Element | 1 kOhms | - | ±10% | - | - | - | Screw Mount |
|
|
VRH320 33R K320 WATTS VARIABLE 33 OHMS 10% |
2,666 |
|
数据手册 |
VRH320 | Box | Obsolete | - | - | Metal Element | 33 Ohms | - | ±10% | - | - | - | Screw Mount |
