特种电阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 应用 | 成分 | 电阻 | 阻抗 | 容差 | 功率 (W) | 温度系数 | 工作温度 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSS-L100-001RESISTOR - BUS BAR SHUNT WITH NT |
2,853 |
|
数据手册 |
BSS | Tray | Active | Current Sensor | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 20W | ±50ppm/°C | -40°C ~ 125°C | Shunt Fixture, 60mm Pitch |
|
HPT3216-50-T1RESISTOR TERMINATOR 50 OHM 10W |
530 |
|
数据手册 |
HPT | Tape & Reel (TR) | Active | Terminator | - | Thin Film | - | 50 Ohms | - | 10W | - | -40°C ~ 155°C | - |
|
WSMS2908L2500JKRES SHUNT 0.00025 OHM 5% 3W |
188 |
|
数据手册 |
Power Metal Strip® | Bulk | Active | Shunt, Meter | Power Meters | Metal Element | 250 µOhms | - | ±5% | 3W | ±300ppm/°C | -65°C ~ 170°C | Shunt Fixture, 20mm Pitch |
|
HPT5025-50-T1RESISTOR TERMINATOR 50 OHM 20W |
323 |
|
数据手册 |
HPT | Tape & Reel (TR) | Active | Terminator | - | Thin Film | - | 50 Ohms | - | 20W | - | -40°C ~ 155°C | - |
|
HPT6432-50-T1RESISTOR TERMINATOR 50 OHM 30W |
792 |
|
数据手册 |
HPT | Tape & Reel (TR) | Active | Terminator | - | Thin Film | - | 50 Ohms | - | 30W | - | -40°C ~ 155°C | - |
|
WSBS8518L1000JTRESISTOR SHUNT 100 UOHM 5% 36W |
108 |
|
数据手册 |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
YP1027KJRES CAP BLEEDER 27K OHM 5% 10W |
597 |
|
数据手册 |
YP, CGS | Bulk | Active | Bleeder, Capacitor | Capacitor Discharge | Wirewound | 27 kOhms | - | ±5% | 10W | ±100ppm/°C | -55°C ~ 350°C | Capacitor, 31.8mm Pitch |
|
|
WSBS8518L2500JKRESISTOR SHUNT 250 UOHM 5% 36W |
547 |
|
数据手册 |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 250 µOhms | - | ±5% | 36W | ±225ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
HPT9464H-50-T1RESISTOR TERMINATOR 50 OHM 100W |
367 |
|
数据手册 |
HPT | Tape & Reel (TR) | Active | Terminator | - | Thin Film | - | 50 Ohms | - | 100W | - | -40°C ~ 155°C | - |
|
|
WSBS8518L0500JKRESISTOR SHUNT 50 UOHM 5% 36W |
190 |
|
数据手册 |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|

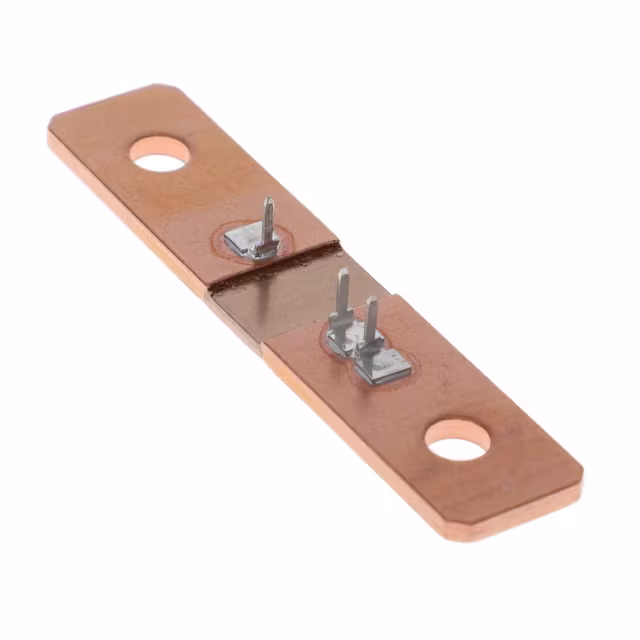

WSBS8518L1250JK40RESISTOR SHUNT 125 UOHM 5% 36W |
727 |
|
数据手册 |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L2500JK60RESISTOR SHUNT 250 UOHM 5% 36W |
283 |
|
数据手册 |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 250 µOhms | - | ±5% | 36W | ±110ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|

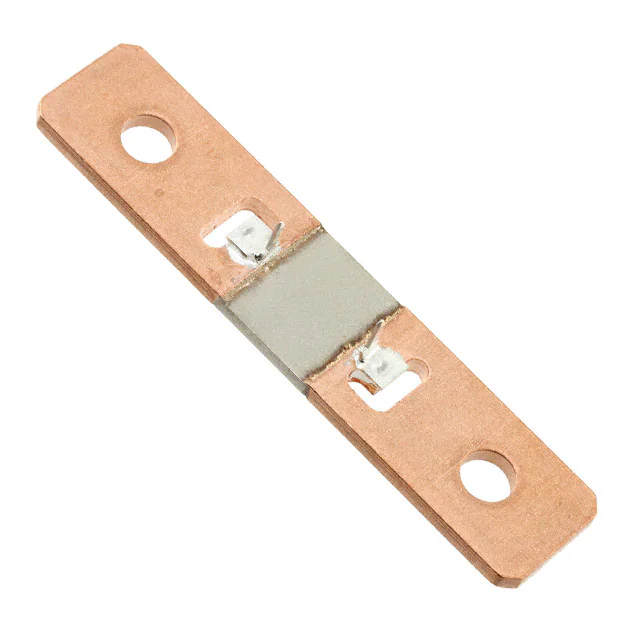

WSBS8518L5000JK35RESISTOR SHUNT 500 UOHM 5% 25W |
130 |
|
数据手册 |
Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 500 µOhms | - | ±5% | 25W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1250JT80RESISTOR SHUNT 125 UOHM 5% 36W |
200 |
|
数据手册 |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L0500JTP4WSBS8518-P4.000050 5% TRAY PACK |
337 |
|
数据手册 |
Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1250JKP3RESISTOR SHUNT 125 UOHM 5% 36W |
115 |
|
数据手册 |
Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L1000JT34RESISTOR SHUNT 100 UOHM 5% 36W |
112 |
|
数据手册 |
Power Metal Strip® | Tray | Active | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 36W | ±65ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L1000JT40RESISTOR SHUNT 100 UOHM 5% 36W |
111 |
|
数据手册 |
Power Metal Strip® | Tray | Active | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
SH8536F1K0AHEP8536 SHUNT 1000A M3 |
169 |
|
数据手册 |
SHA | Box | Active | Shunt, Battery | - | - | 50 µOhms | - | ±1% | 50W | - | - | Through Hole |
|
WSBS8518L2500JT20RESISTOR SHUNT 250 UOHM 5% 36W |
140 |
|
数据手册 |
Power Metal Strip® | Tray | Active | Shunt, Battery | - | Metal Element | 250 µOhms | - | ±5% | 36W | ±110ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
